25
36
50
23
7
53
52
13
18

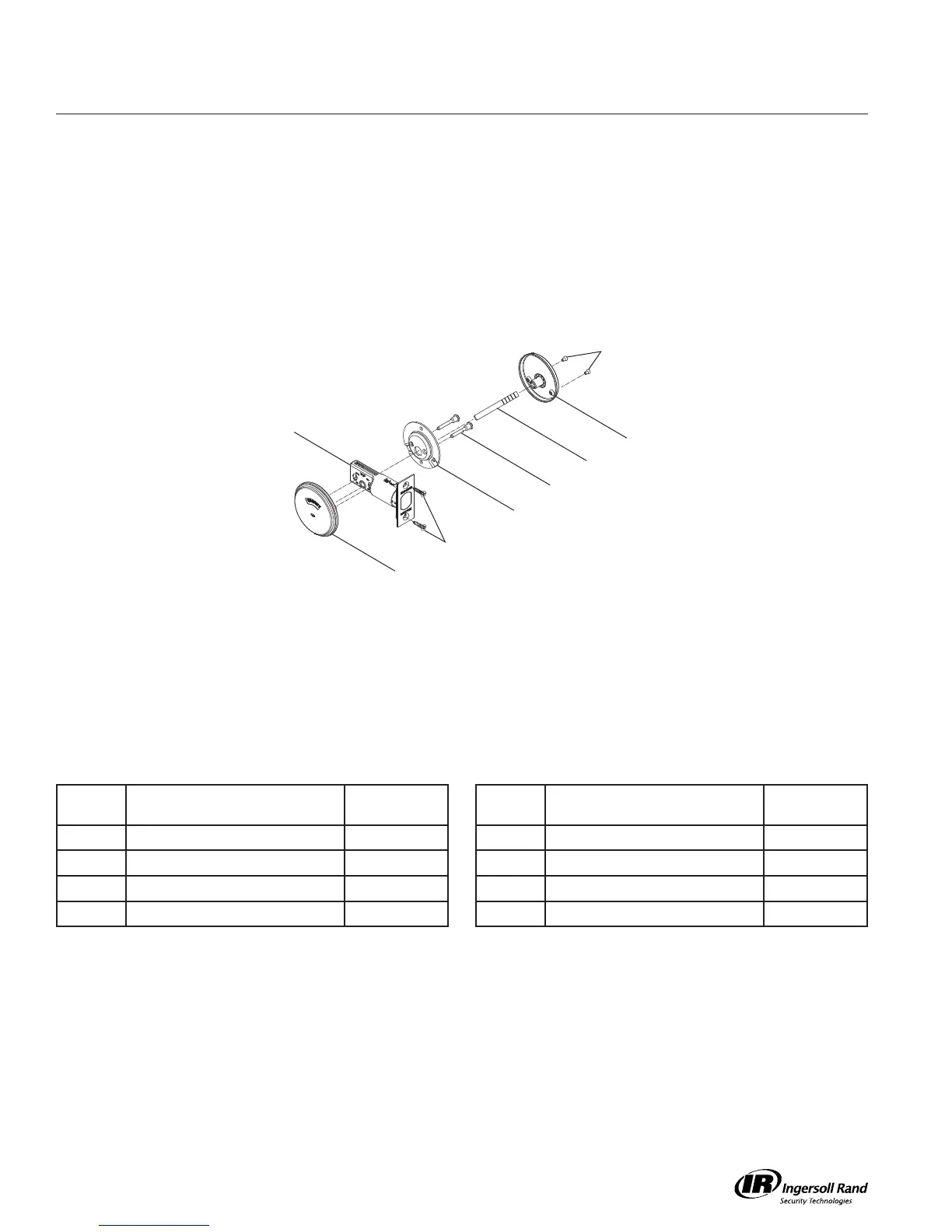

D100/200 Series Service Manual
Assemblies
Call Out
Number Description Part Number
Call Out
Number Description Part Number
7 Mounting Plate B600-018 36 Driver Bar B520-653
13 Regular Bolt Q330-253 50 Screw, Mounting (2) B520-662
23 Outside Assy, Indicator Lock B302-044 52 Screw, Deadbolt (2) C603-897
25 Thumbturn Assy B302-041 53 Screw, Trim (2) B600-066
D271
Thumbturn, Inside x Occupancy Indicator
