Falcon D261M User Manual

17
33
28
29
31
52
52
7
11
24
53
46
1
10
43
18
19
28
29
32
30
30
2
15
For F (UL)
4

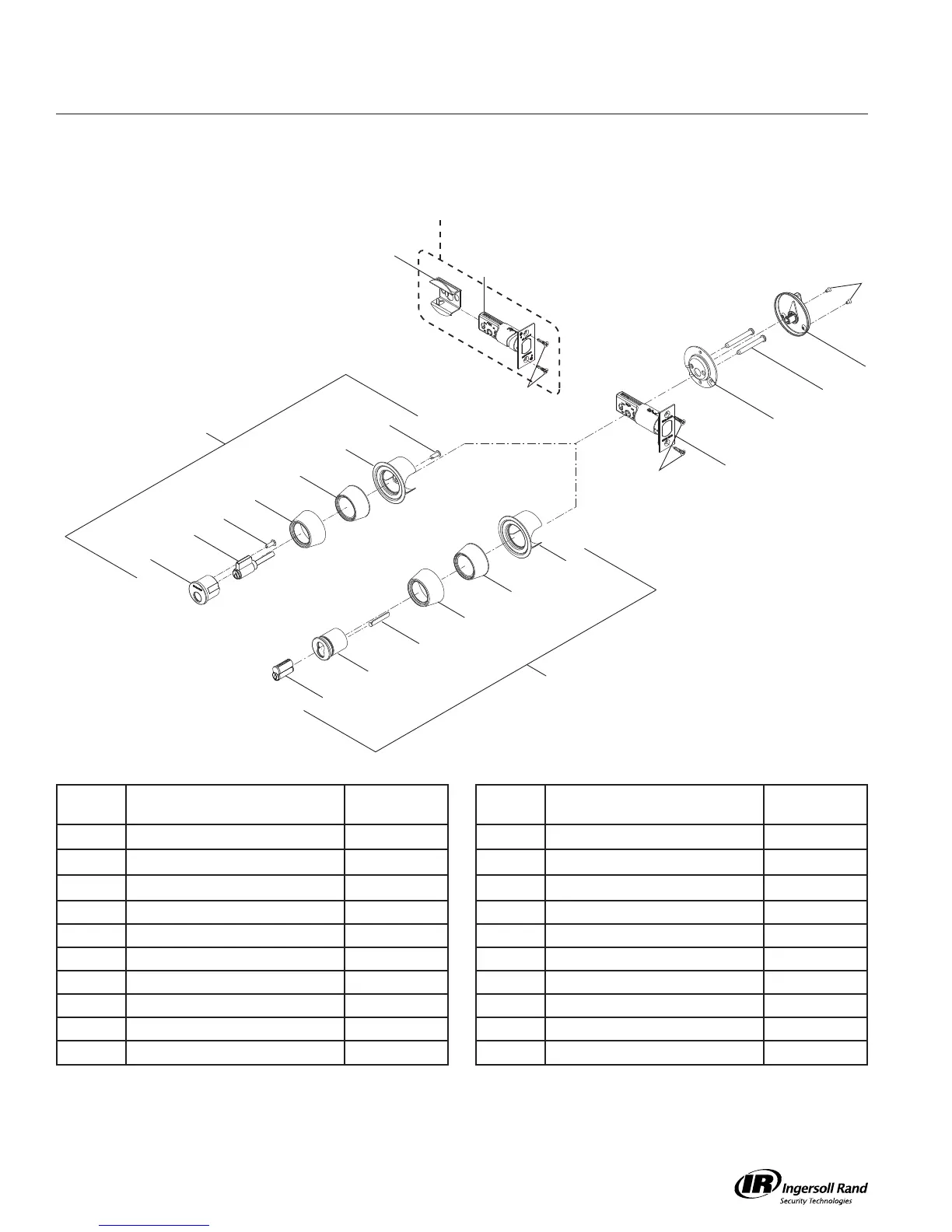

D100/200 Series Service Manual
Call Out
Number Description Part Number
Call Out
Number Description Part Number
1 Outside Housing Assy (G only) SFIC 28 Outside Rose 36-086
2 Outside Housing Assy (P only) Q500-074 29 Insert Ring B520-541
7 Mounting Plate B600-018 30 Cylinder Retaining Screw (2) B300-108
10 Fire-Rated Bolt (F only) * 31 Adapter Shield B520-650
11 Regular Bolt Q330-256 32 Anti-Pry Shield B520-649
15 SFIC Cylinder C607 33 Driver Bar B202-957
17 Outside Cylinder Housing Assy B610-204 43 Fire Cup (F only) *
18 Cylinder Housing Assy Q500-009 46 Screw, Mounting (2) B600-100
19 5 Pin Cylinder Assy Q500-064 52 Screw, Deadbolt (2) C603-897
24 Thumbturn Assy, Classroom B302-045 53 Screw, Trim (2) B600-066
Assemblies
D111G (SFIC)
D111P
Classroom Function
* Not for sale as individual parts.
