Falcon D261M User Manual

25
7
50
25
50
8
36
53
52
13
52
12
43
For F (UL)
15
D100/200 Series Service Manual

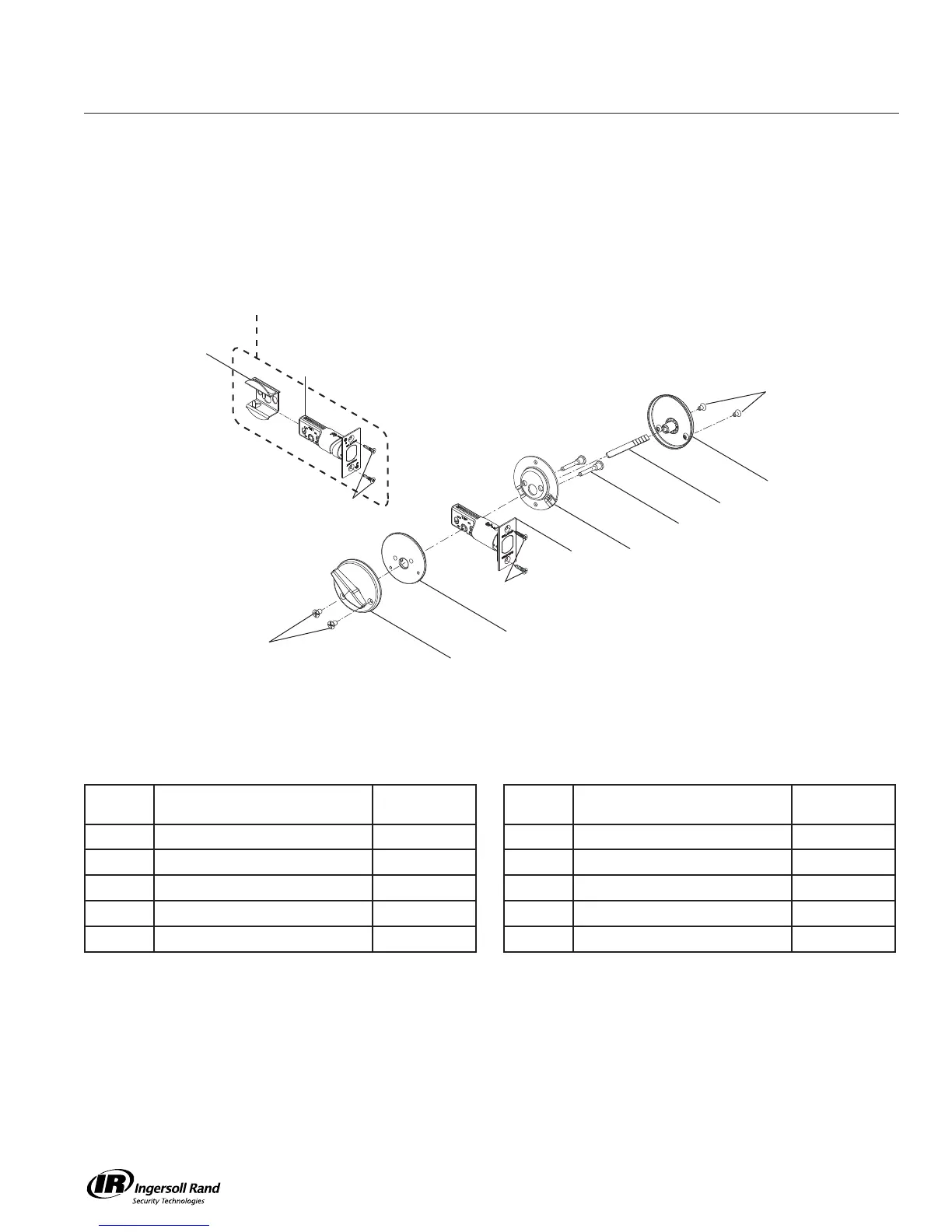

Assemblies
Call Out
Number Description Part Number
Call Out
Number Description Part Number
7 Mounting Plate B600-018 36 Driver Bar B520-653
8 Mounting Plate, Outside Q630-124 43 Fire Cup (F only) *
12 Fire-Rated Bolt (F only) * 50 Screw, Mounting (2) B520-662
13 Regular Bolt Q330-253 52 Screw, Deadbolt (2) C603-897
25 Thumbturn Assy (2) B302-041 53 Screw, Trim (4) B600-066
D251
Thumbturn x Thumbturn
* Not for sale as individual parts.

Falcon D261M Specifications

General

Brand	Falcon
Model	D261M
Category	Door locks
Language	English
