Falcon D261M User Manual

52
7
11
17
34
28
29
31
26
46
1
53
18
20
28
30
30
29
32
3
52
10
43
For F (UL)
15
5

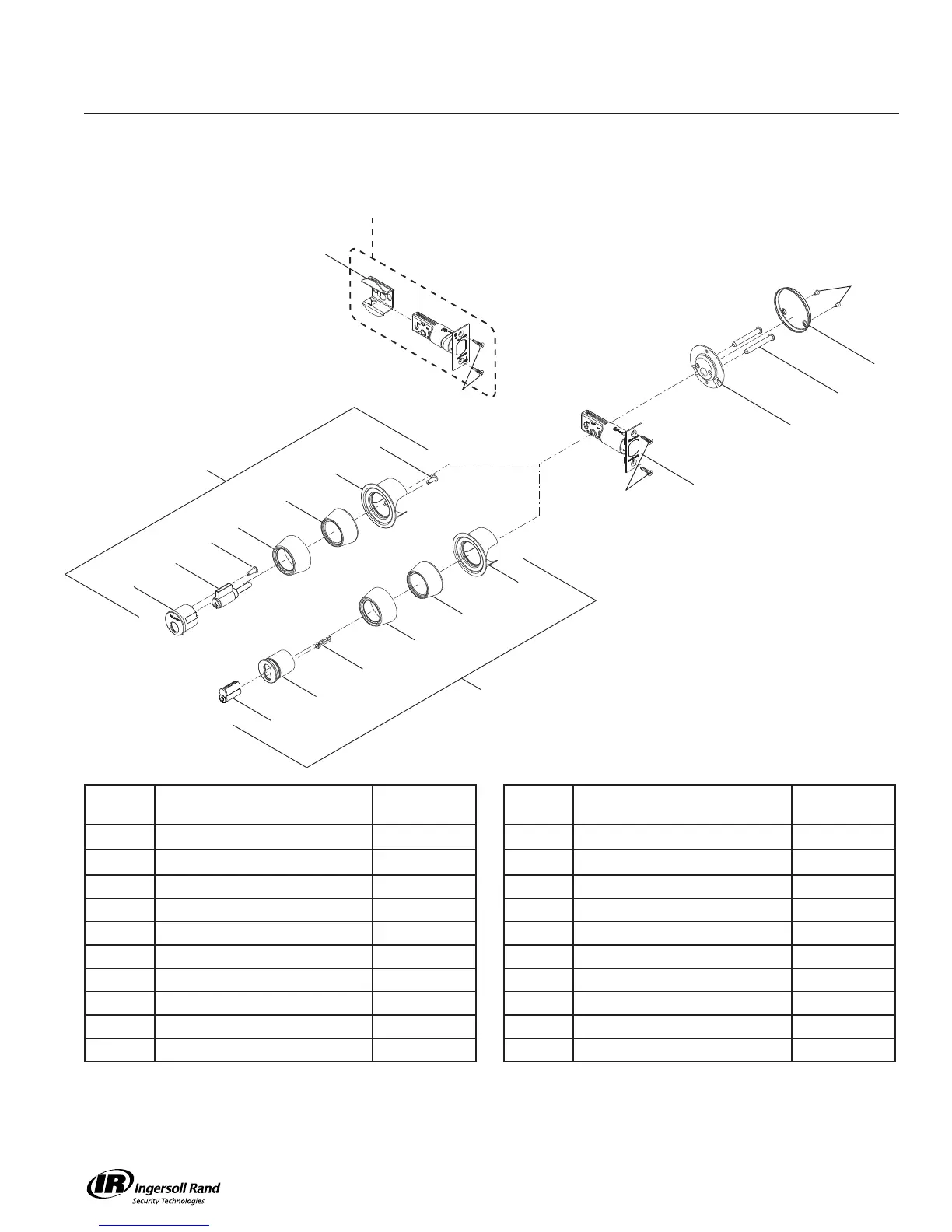

D100/200 Series Service Manual
Assemblies
Call Out
Number Description Part Number
Call Out
Number Description Part Number
1 Outside Housing Assy (G only) SFIC 28 Outside Rose 36-086
3 Outside Housing Assy (P only) Q500-076 29 Insert Ring B520-541
7 Mounting Plate B600-018 30 Cylinder Retaining Screw (2) B300-108
10 Fire-Rated Bolt (F only) * 31 Adapter Shield B520-650
11 Regular Bolt Q330-256 32 Anti-Pry Shield B520-649
15 SFIC Cylinder C607 34 Driver Bar B220-032
17 Outside Cylinder Housing Assy B610-204 43 Fire Cup (F only) *
18 Outside Cylinder Housing Assy Q500-009 46 Screw, Mounting (2) B600-100
20 5 Pin Cylinder Assy Q500-066 52 Screw, Deadbolt (2) C603-897
26 Blank Rose B600-020 53 Screw, Trim (2) B600-066
D121G (SFIC)
D121P
Single Cylinder x Rose
* Not for sale as individual parts.
