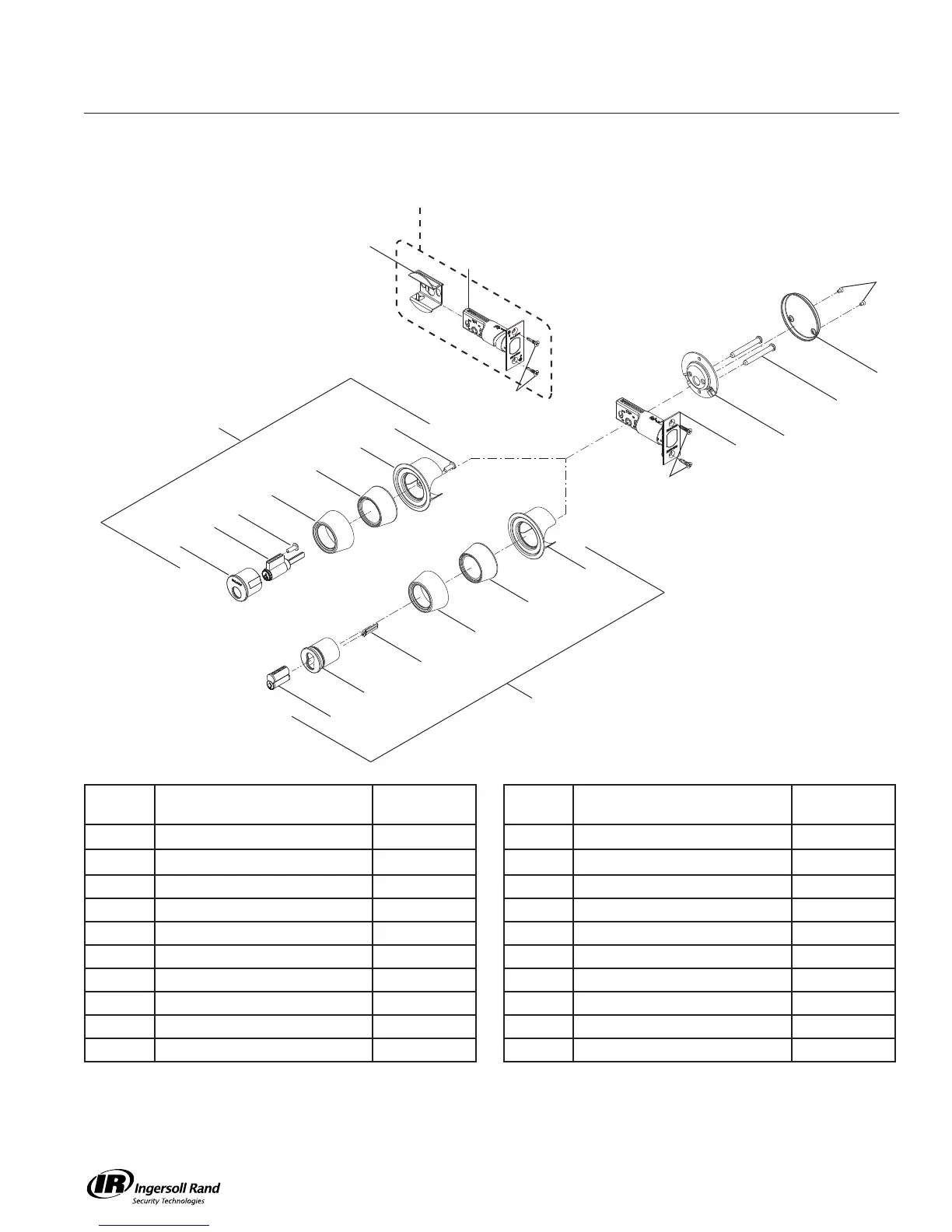

D100/200 Series Service Manual
Assemblies
Call Out
Number Description Part Number
Call Out
Number Description Part Number
1 Outside Housing Assy SFIC 28 Outside Rose 36-086
6 Outside Housing Assy (F only) Q500-079 29 Insert Ring B520-541
7 Mounting Plate B600-018 30 Cylinder Retaining Screw (2) B300-108
12 Fire-Rated Bolt (F only) * 31 Adapter Shield B520-650
13 Regular Bolt Q330-253 32 Anti-Pry Shield B520-649
15 SFIC Cylinder C607 34 Driver Bar B220-032
17 Outside Cylinder Housing Assy B610-204 43 Fire Cup (F only) *
18 Cylinder Housing Assy Q500-009 46 Screw, Mounting (2) B600-100
22 5 Pin Cylinder Assy Q500-069 52 Screw, Deadbolt (2) C603-897
26 Blank Rose B600-020 53 Screw, Trim (2) B600-066
D221G (SFIC)
D221P
Single Cylinder x Rose
* Not for sale as individual parts.
