UPS Operation
Operating Modes

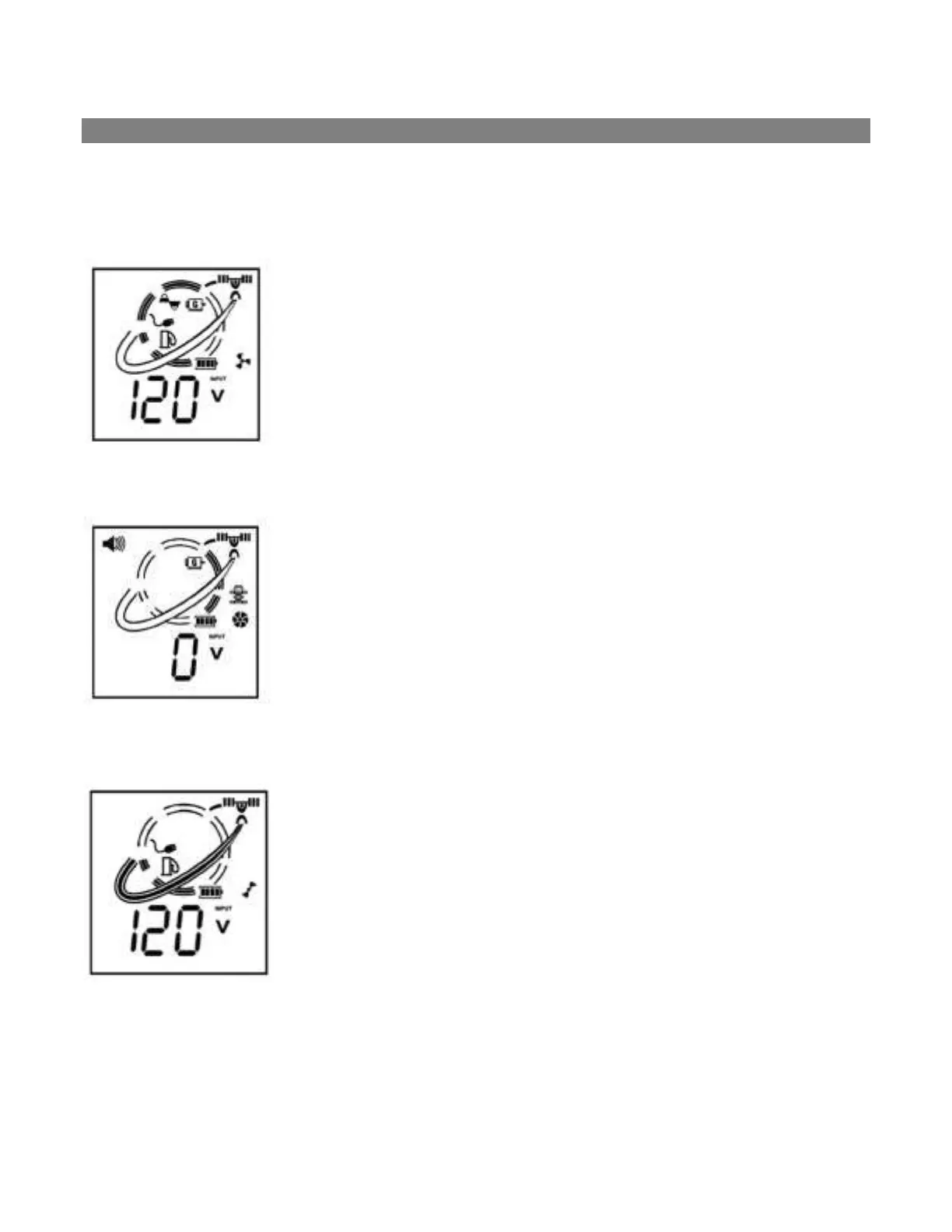

Online Mode
Online mode operation indicates the load, inverter, PFC, line, charger and
battery status. The fan is shown at medium speed.
The dark, solid line inside the circle indicates the power flow from input,
through the inverter, to load and from the input, to the charger and into the
battery.
Battery Mode
Battery mode operation indicates battery power flow to the DC/DC converter
and on to the inverter. The fan is shown in high speed mode. Each bar inside
the battery icon indicates approximately 25% battery capacity. As capacity
decreases, fewer bars will remain illuminated. The charger icon is turned off
and the UPS will emit a continuous audible beep sequence during battery
mode operation.
Bypass Mode
Bypass mode indicates the input is connected directly to the load. The dark
solid line shows the input power to the battery charger icon, then to the
battery. The fan is shown in low speed mode.
The UPS will automatically transfer to bypass mode and will sound an
audible alarm upon the following conditions:
 Over-temperature
 Overload
 UPS Fault
 Manual Activation
When in bypass mode, the UPS will transfer the load directly to the utility power and battery backup is
not available. The utility power, however, will continue to be passively filtered.
