14 14

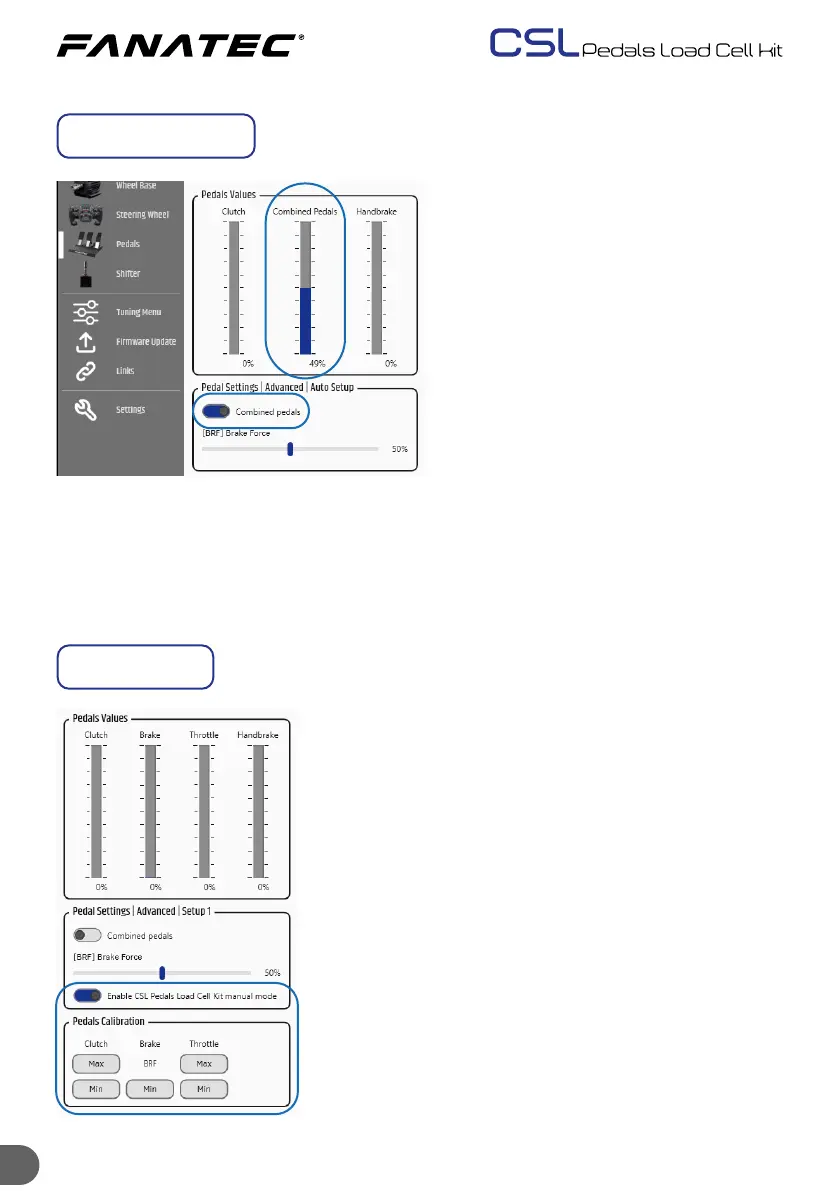

This feature allows the brake (load
cell) and accelerator pedals to
simultaneously operate on a single
axis. 49% to 0% is operated by the
brake pedal and 50% to 100% is
operated by the accelerator pedal.
This feature’s purpose is to allow
compatibility with older games
that support only a single axis for
braking and accelerating and is
only accessible when connected to
a Fanatec wheel base.
By enabling ‘...Manual Mode’, the minimum and
maximum values of each pedal can be manually
set throughout the mechanical travel range of
each pedal.
Example: Press the clutch pedal to the desired
lower travel range for when you want the signal
to start, then select ‘Min’. Press the clutch pedal
to the desired upper travel range for when you
want the signal to reach 100%, then select ‘Max’.
BRF (Brake Force) acts as the maximum value
setting for the load cell brake and is accessible
via the wheel base Tuning Menu as well. The
brake ‘Min’ and ‘Max’ / ‘Min’ options for the
other pedals are only accessible via the Fanatec
Control Panel.
Combined Pedals
Manual Mode
