2.1.2 Simucube / VRS / Simagic Alpha

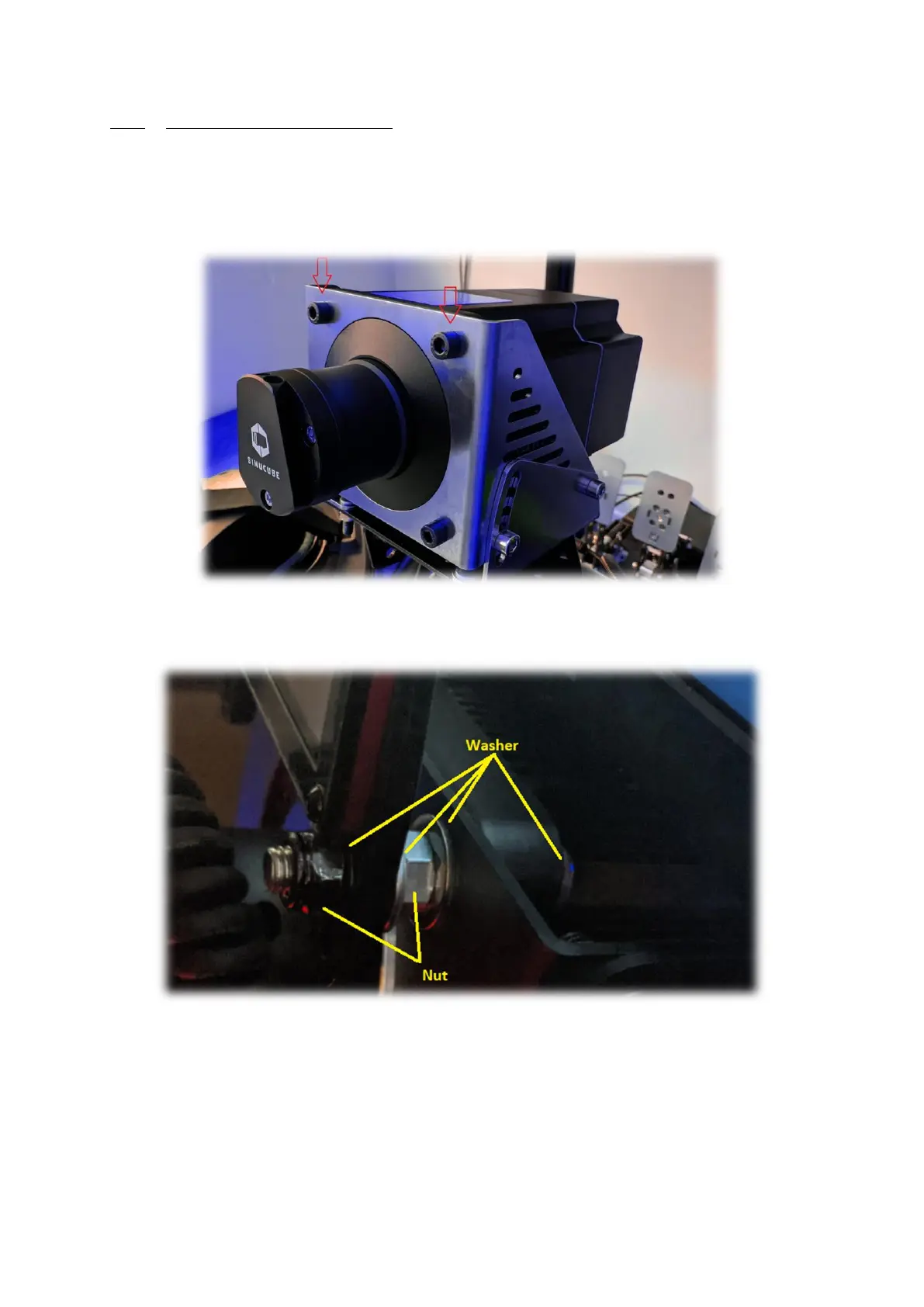

Remove the 2 top M8 bolts on the front of the wheelbase and re-attach the longer M8 bolts. You can
choose to attach the dashboard to the front or to the back of the wheelbase (see example lower).
Always tighten the base to the mount with a first nut, THEN slide the dashboard on and attach with a
second nut. DO NOT OVERTIGHTEN THIS SECOND NUT!
This is an example of a front mounted dashboard, you can also mount the dashboard to the back
with the same method by putting in the bolt from the front side:
