Assembling and Mounting the Fan BladesAssembling and Mounting the Fan Blades (Continued)
NOTE: Periodically check Blade Holder hardware and re-
secure if necessary. (see Maintenance below)
WARNING
To reduce the risk of personal injury, do not bend the
blade holders when installing, balancing the blades or
cleaning the fan. Do not insert foreign objects in between
the rotating blades.
2. Attach blade holders to the bottom of the fan motor
hub using the ¼–20 x 14 mm screws w/lockwashers.
Make sure the screws with lockwashers securing
the blade holders to the fan
motor hub are tight and
that the blade holders are properly seated. (Figure 16)

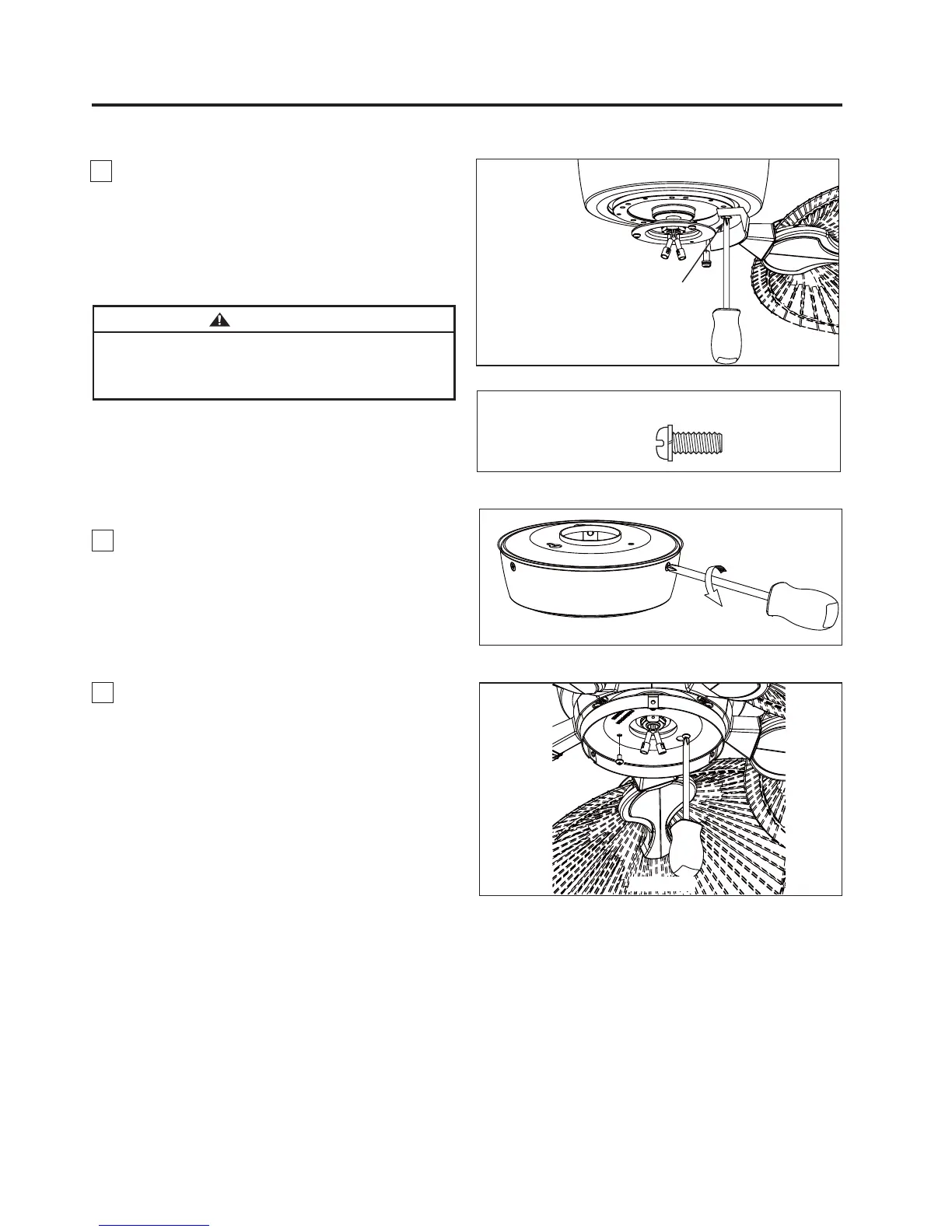

Figure 17
Switch Housing Cup Assembly:
3. Disassemble the Switch Housing Cup Assembly by
removing three screws. (Figure 17)
Figure 18
4.
Remove one of the three screws in the support
bracket at the bottom of the motor assembly.
Slightly loosen the remaining two screws.
Assemble the light plate assembly to the
support
bracket using the two key slots in the socket plate
Replace the third screw and securely tighten all three
screws (Figure 18).
x 10
1/4-20 x 14 mm
SCREWS
HARDWARE USED:
Figure 16
Socket-Head
Screw with Lockwasher
(2 per blade holder)
To Next Page
