How to Assemble Your Ceiling Fan (continued)

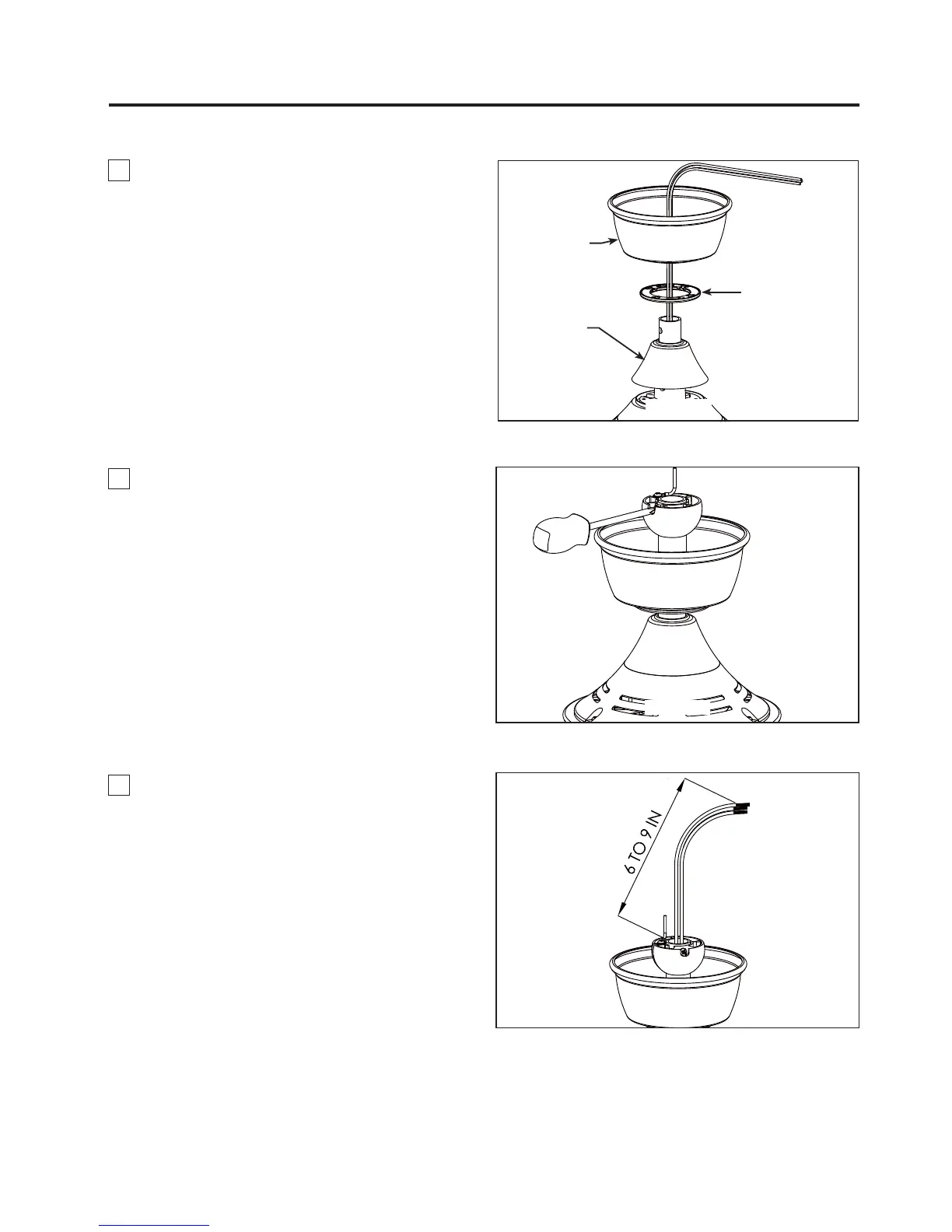

4. Route wires through motor coupling cover,
canopy screw cover and ceiling canopy. (Figure 4)
Figure 6
6. Cut off excess lead wire approximately 6 to 9
inches above top of the top of the downrod. Strip
1/2 inch from the end of each lead
insulation off
wire. (Figure 6)
NOTE:
All set screws must be checked, and retightened
where necessary, before installation.
Canopy Screw
Cover
Ceiling
Canopy
Motor
Coupling
Cover
Figure 4
Figure 5
5. Reinstall the hanger ball on the downrod as
follows. Route the two 80 in. wires and safety cable
through the hanger ball. Position the pin through the
two holes in the downrod and align the hanger ball so
the pin is captured in the groove in the top of the
hanger ball. Pull the hanger ball up tight against
the pin. Securely tighten the set screw in the
hanger ball. A loose set screw could create fan
wobble. (Figure 5)
