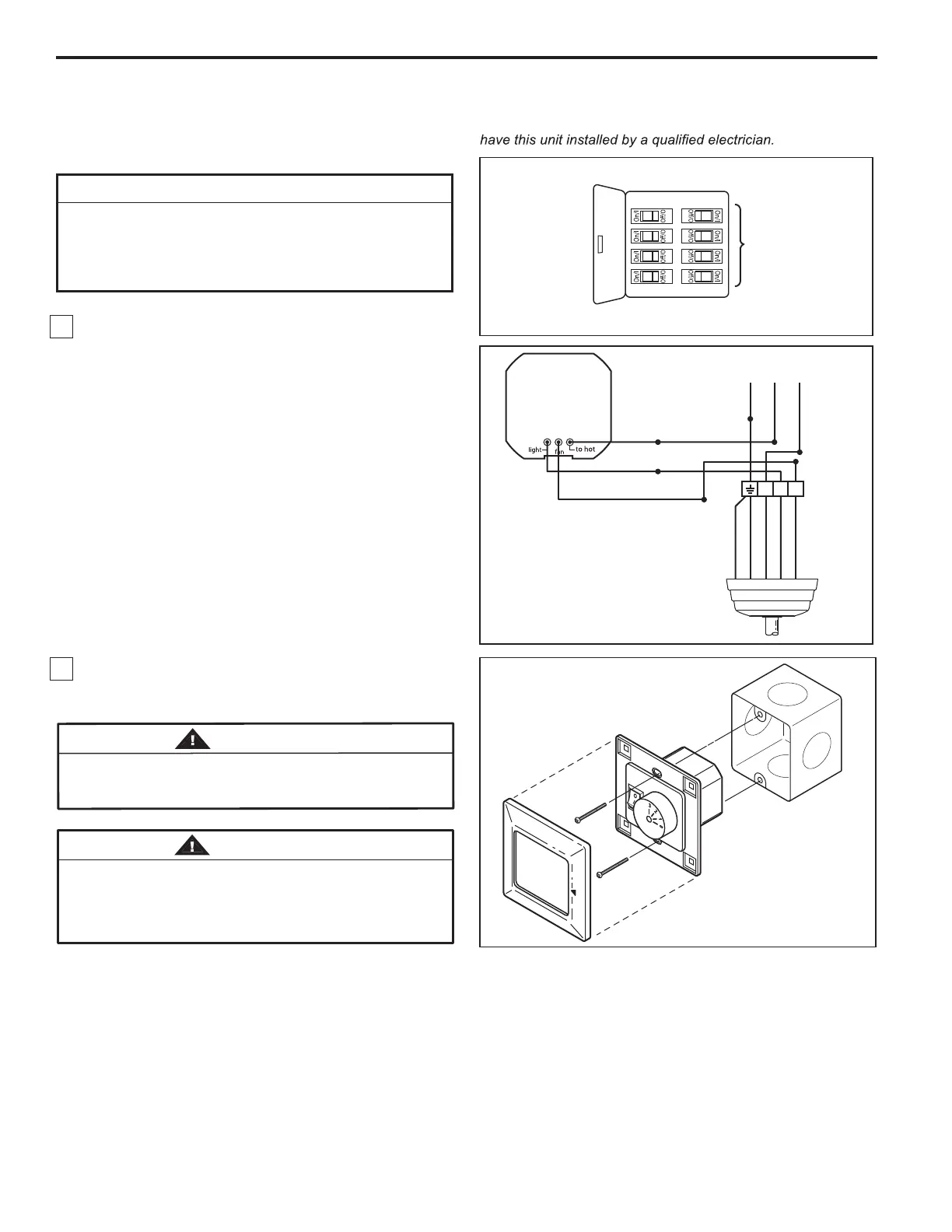

How to Wire Your Ceiling Fan
If you feel that you do not have enough electrical wiring
knowledge or experience, have your fan installed by a
licensed electrician.
NOTE: If fan or supply wires are different colors than indicated,
▲ WARNING
To avoid possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring.
(Figure 1)
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
Figure 2
Figure 1
Figure 3
NOTE: Supply wires and fan wires
omitted for clarity.
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire con-
nectors, except for the ground wire. Do not operate fan
until the blades is in place. Noise and fan damage could
result.
WARNING
To avoid possible fire or shock, make sure that the elec-
trical wires are completely inside the outlet box and not
pinched between the wall plate and the wall.
WARNING
2. Attach wall control unit to outlet box using the two
6-32 screws provided. (Figure 3)
• Attach wall plate to the switch control front.
MAIN FUSE BOX
N L1 L
Terminal
Block
(on Hanger
Bracket)
BRN
TO FAN
ORG TO LIGHT
220-240 VAC SUPPLY
(User Supplied)
YEL/GRN from fan YEL/GRN from bracket ORG-TO LIGHT BRN-TO MOTOR
BLUE-NEUTRAL
BLK/WHT TO HOT
BLUE/BLK
(NEUTRAL)
RED/BRN
(HOT)
YEL/GRN
(EARTH )
Wall Control
(Rear View)
1. Installing Wall Control (Figure 2):
• With electrical power still disconnected, remove the
existing wall plate and switch.
• Make wiring connections to terminal block as shown in
Figure 2.
– One black/white wire from wall control unit to red/
brown (hot supply).
– One orange wire from wall control unit to orange
(light).
– One brown wire from wall control unit to brown wire
leading to ceiling outlet box.
