Fantec R2750 - Front Panel; Rear Panel; Side Panel

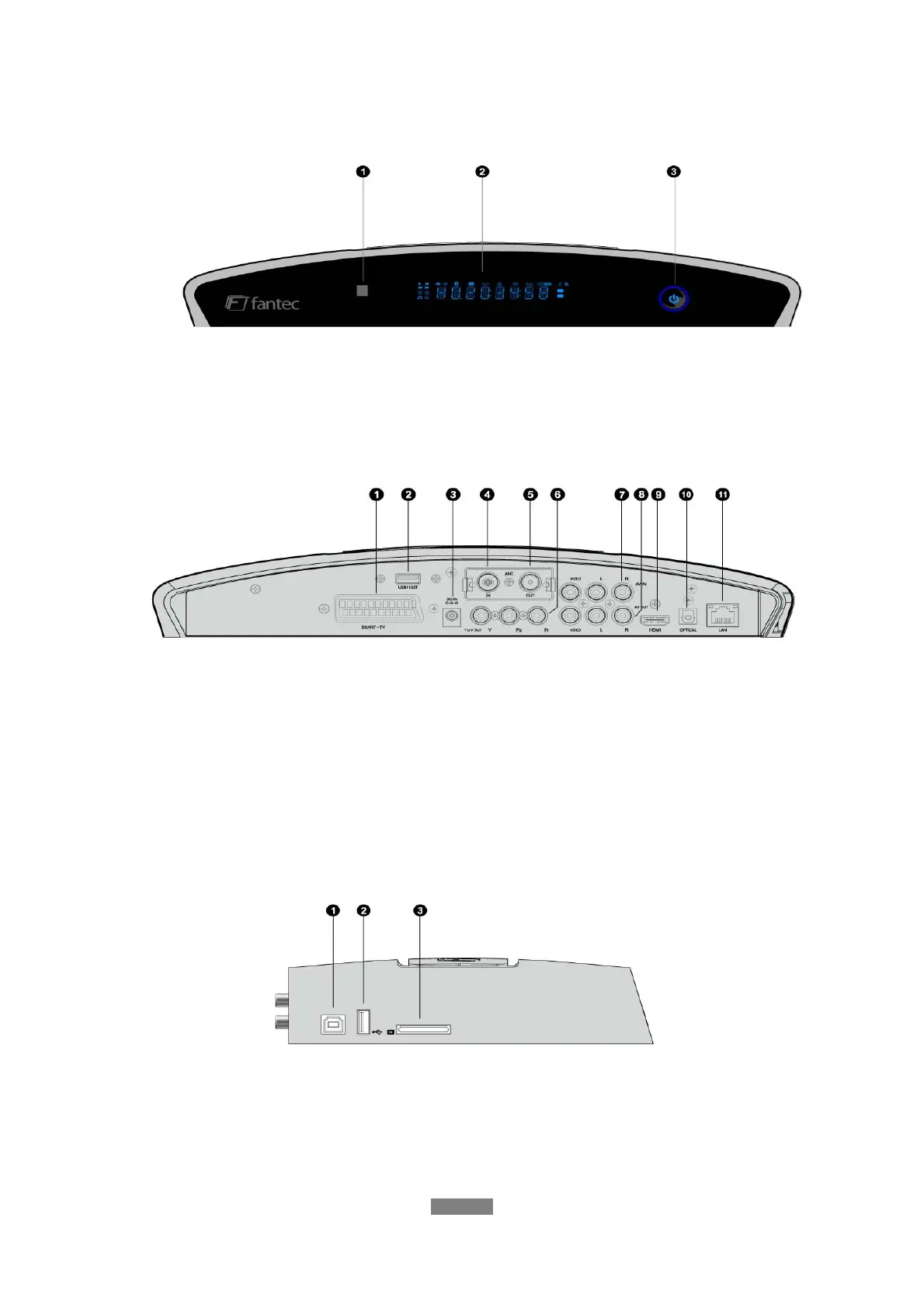

2.2 Front Panel
1. Infrared receiver window 2. VFD screen
3. Power button & indicator
2.3 Rear Panel
1. SCART - TV socket 2. USB HOST port (A-Type)
3. DC IN jack 4. ANT. / RF IN socket
5. ANT. / RF OUT socket 6. Y/Pb/Pr OUT jack
7. A/V IN jack 8. A/V OUT jack
9. HDMI jack 10. S/PDIF OPTICAL jack
11. RJ45 LAN socket
2.4 Side Panel
1. USB DEVICE port (B-Type) 2. USB HOST port (A-Type)
3. Memory Card slot
ENGLISH
18 / 79
