Faraday RSE-300 - More Notification Appliance Applications; Figure 4-3. Input 1 Activates Outputs 1-3, Input 2 Activates Output 4; Figure 4-4. Input 1 Activates Outputs 1-2, Input 2 Activates Outputs 3-4

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 22

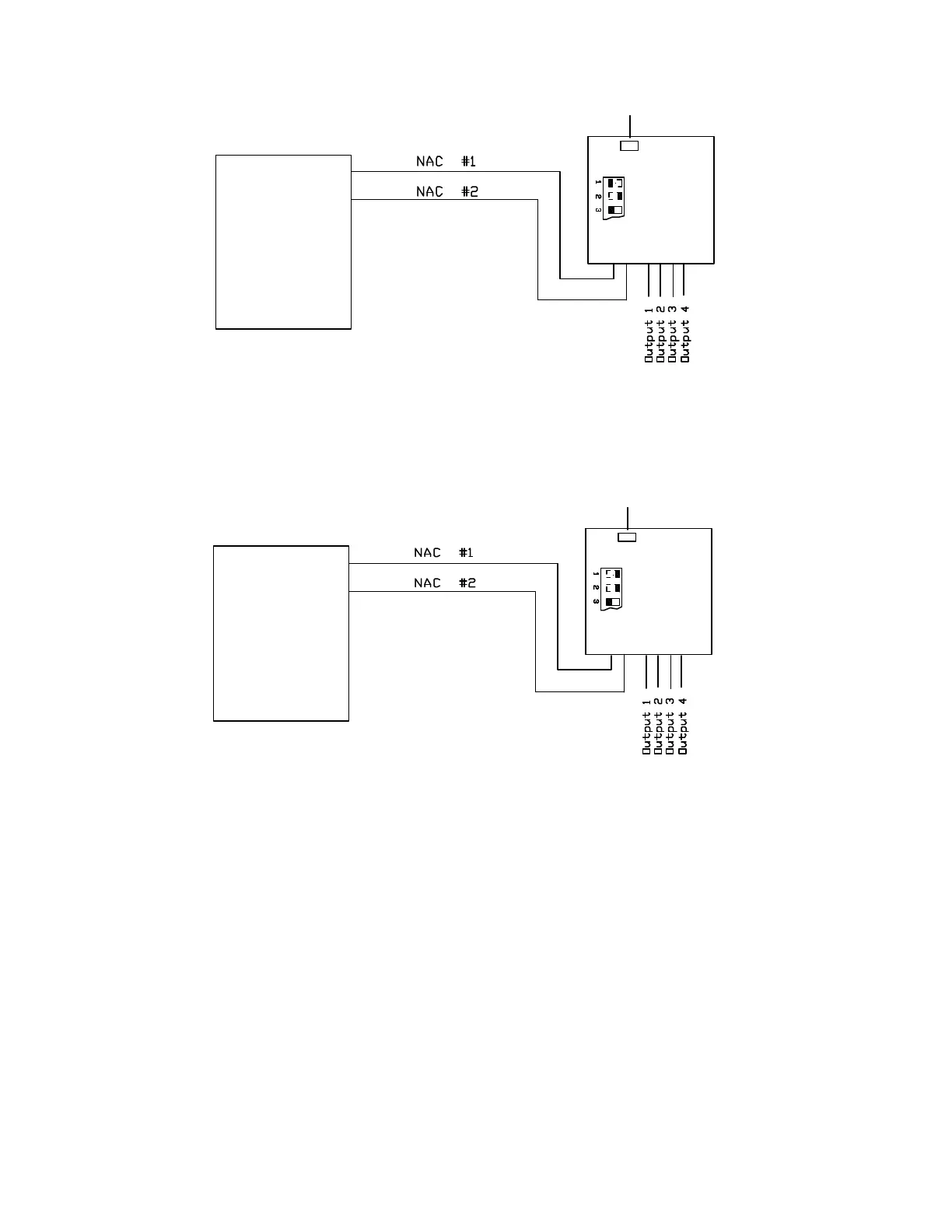

Figure 4-3. Input 1 activates Outputs 1, 2 & 3 and Input 2 activates Output 4
Figure 4-4. Input 1 activates Outputs 1 & 2 and Input 2 activates Outputs 3 & 4
120 VAC
Input 1
Unit
Fire Alarm
Control
Input 2
120 VAC
Input 1
Unit
Fire Alarm
Control
Input 2
