Faraday RSE-300 - Class A Notification Appliance Applications; Figure 4-5. Input 1 Activates Class A Outputs 1-2 & 3-4; Figure 4-6. Input 1 Activates Class A Outputs 1-2;3-4, Input 2 Silences Sync Horns; Figure 4-7. Input 1 Activates Class A Output 1-2, Input 2 Activates Class A Output 3-4

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 23

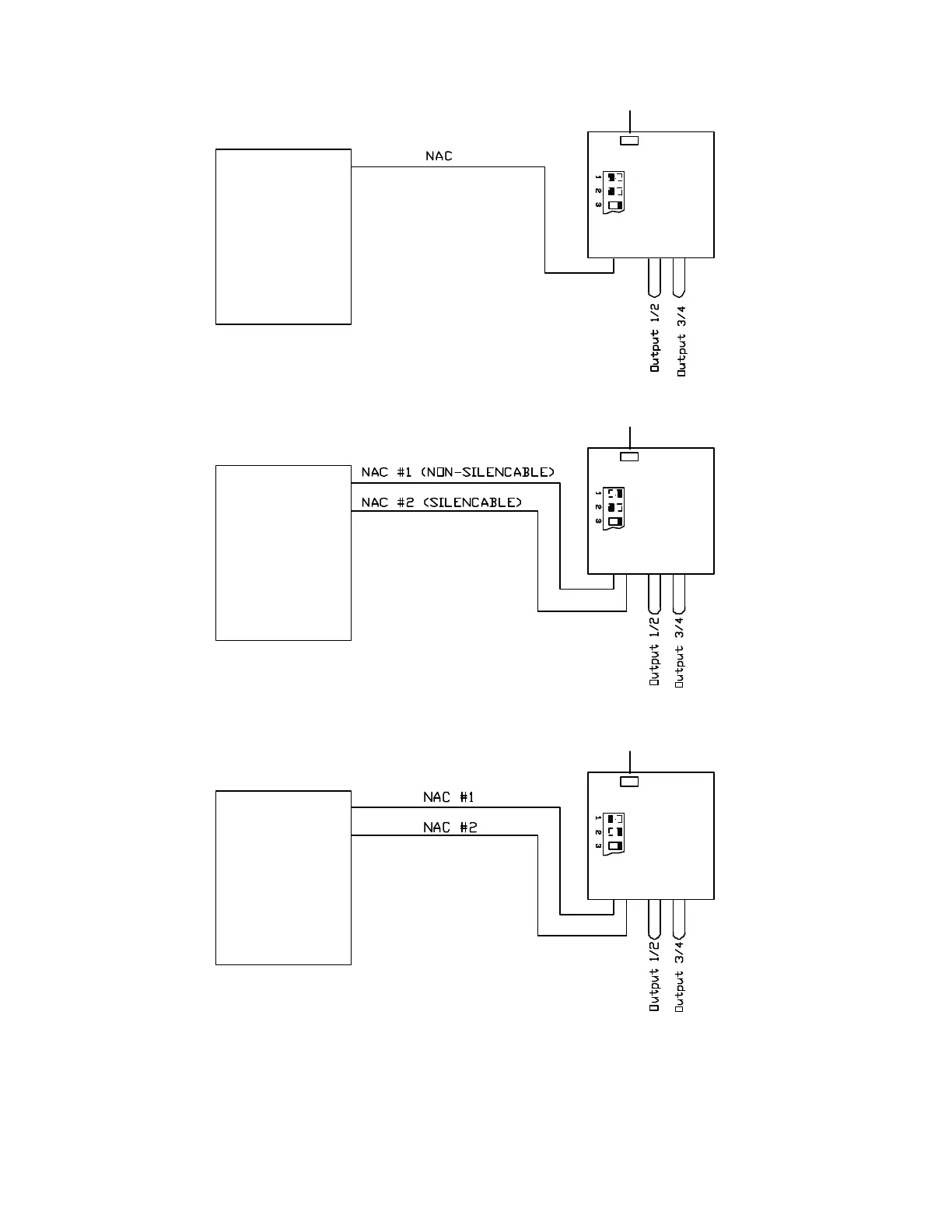

Figure 4-5. Input 1 activates Outputs 1-2 & 3-4 as Class A and Input 2 not used
Figure 4-6. Input 1 activates Outputs 1-2 & 3-4 as Class A and Input 2 used to silence Sync Horns
Figure 4-7. Input 1 activates Output 1-2 as Class A and Input 2 activates Output 3-4 as Class A
120 VAC
Input 1
Unit
Fire Alarm
Control
120 VAC
Input 1
Unit
Fire Alarm
Control
Input 2
120 VAC
Input 1
Unit
Fire Alarm
Control
Input 2
