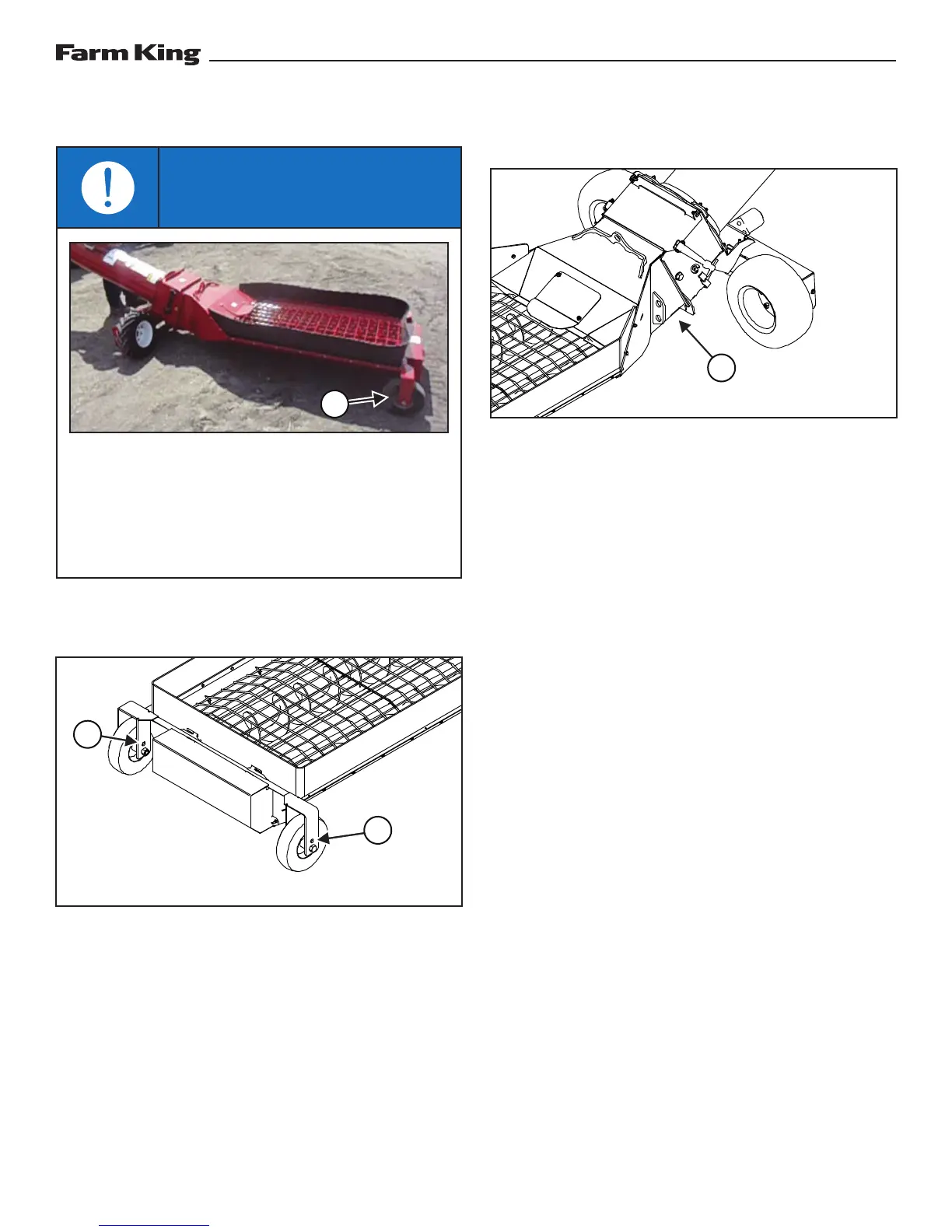

Operation - Teleswing
37
Adjustments
IMPORTANT
The Teleswing may not be able to tilt high
enough to raise the wheels (Item 1) when
operating the auger near maximum height.
Adjust the Teleswing as required when
operating near maximum height.
Adjusting hand truck wheels:
Figure 12
Remove the 3/4” x 5-1/2” bolts and 3/4” lock nuts
from the wheel mounts. Move wheels up to the
top hole (Item 1) on the mounts and reinstall
hardware [Figure 12].
Adjusting hydraulic tilt cylinder:
Figure 13
Extend the rod end of the tilt hydraulic cylinder
(Item 1) by loosening the set screw on the yoke
and unthreading the yoke from the rod [Figure 13].
Unthread the yoke three full rotations. The amount
to be unthreaded may vary.
It is possible to unthread the yoke too far, which
will cause the drive wheels to drag when trying
to retract/extend with the auger in the lowest
position.
Make sure that the yoke is not unthreaded more
than is required.
1
1
1
1
