Assembly - Teleswing
25

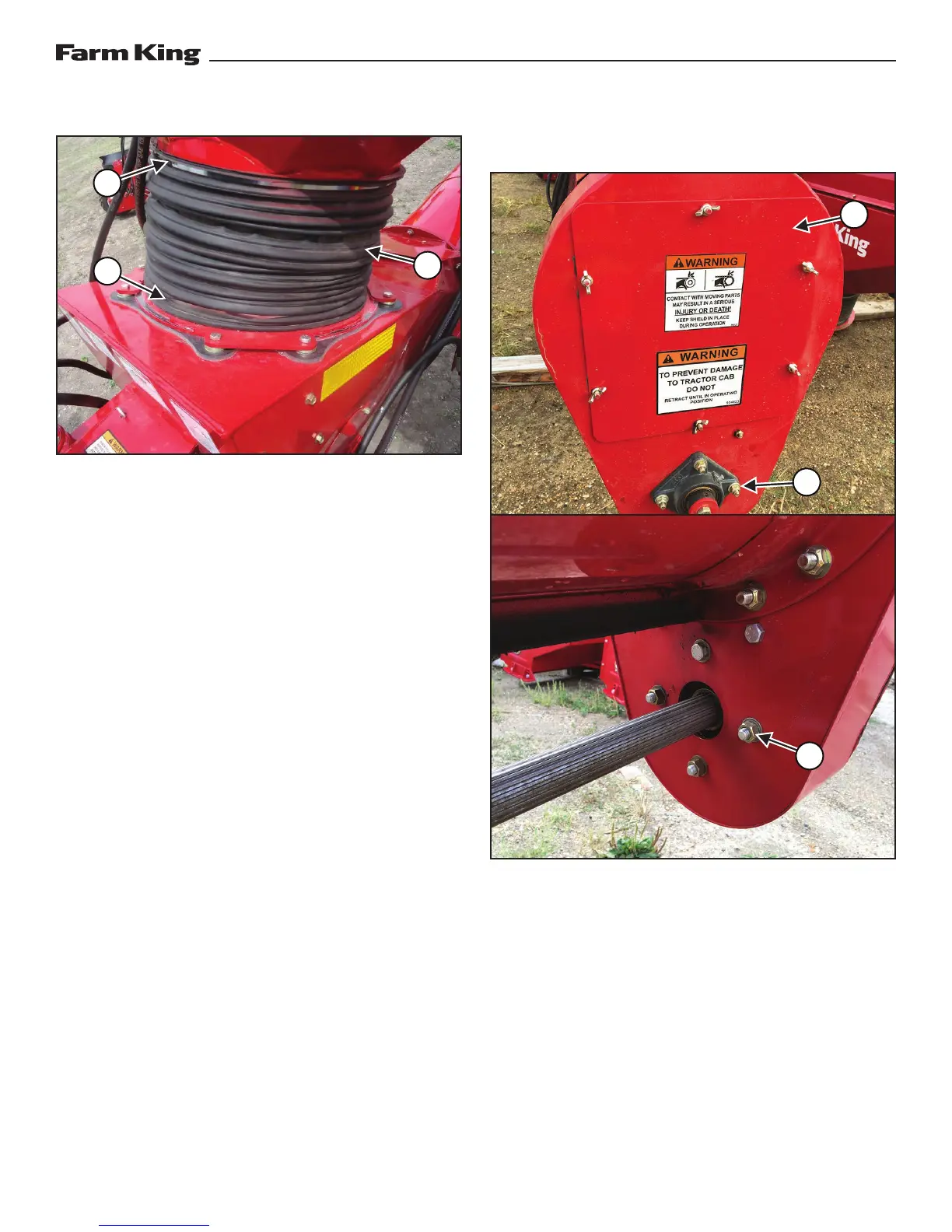

Figure 6
Extend the pivot cover (Item 1) over the swivel ring
and rim of collector. Position hose clamps (Item 2)
[Figure 6] and tighten.
1
2
2
CHAINBOX SHAFT ADJUSTMENT
Figure 7
Remove the plate (Item 1) on the chainbox to allow
access to hardware [Figure 7].
Loosen the four nuts (Item 2) on the outside face
of the chainbox. Loosen the four nuts (Item 3) on
the inside face of the chainbox [Figure 7].
1
2
3
