5.2.1 CAPSULE HEIGHT ADJUSTMENT
Whenever the type of product to be processed is changed, the height of the capsule body must be adjusted
with respect to the level of the base plate (C), which must always be at least equal, or 0.2 mm lower.
This adjustment is carried out by acting on the nut (A) and on the screw (B) on the front of the machine, Fig.
11.

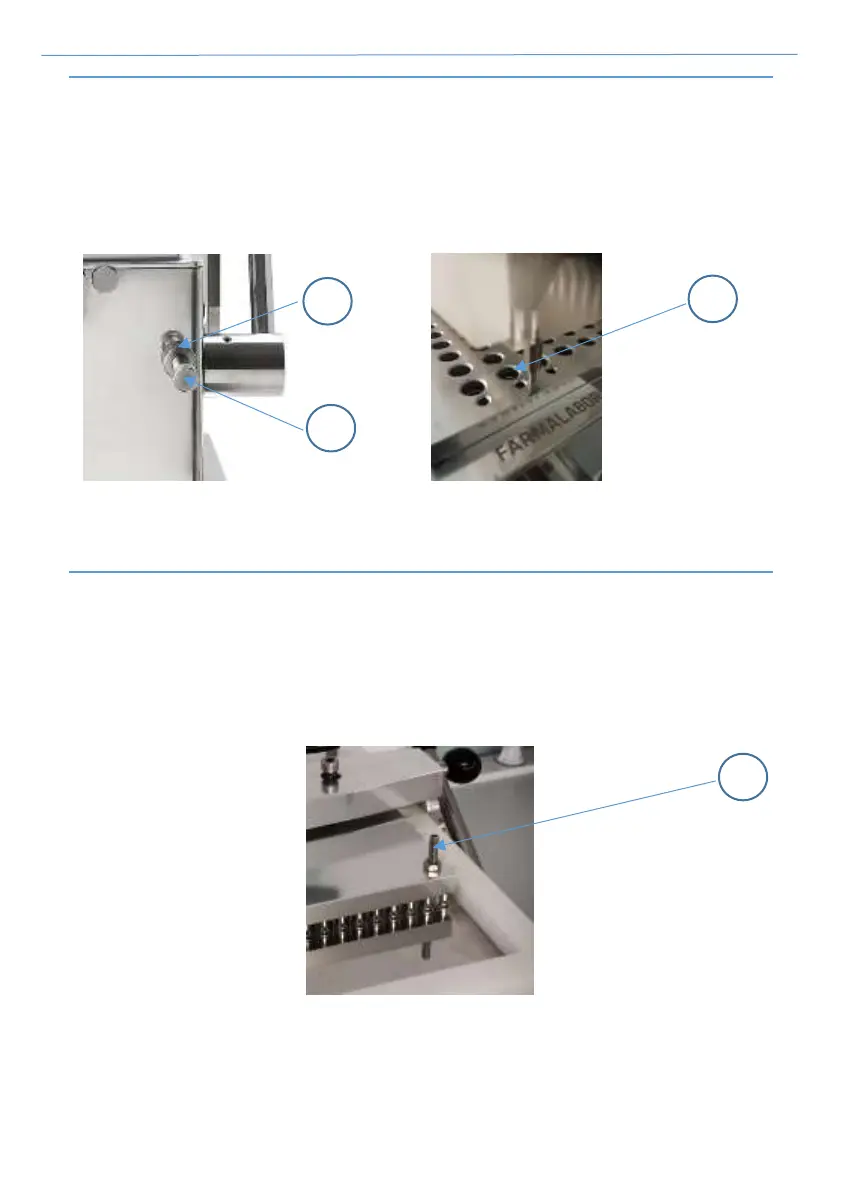

Fig. 11: Base plate height adjustment
Fig. 12: Base plate
5.2.2 PESTLE ADJUSTMENT
The stroke of the pins can be adjusted according to the compression depth of the powders inside the capsule
body.
This adjustment is made by varying the height of the bar of the four grains (A), Fig. 13, placed on the sides
of the pestle plate.
Fig. 13: Regulation grain
A
B
A
C
