FARMALABOR OPTIMATIC 300 - Closing Cover Adjustment

ENGLISH
16
5.2.3 CLOSING COVER ADJUSTMENT
 Lower the closing cover (A), Fig. 14;

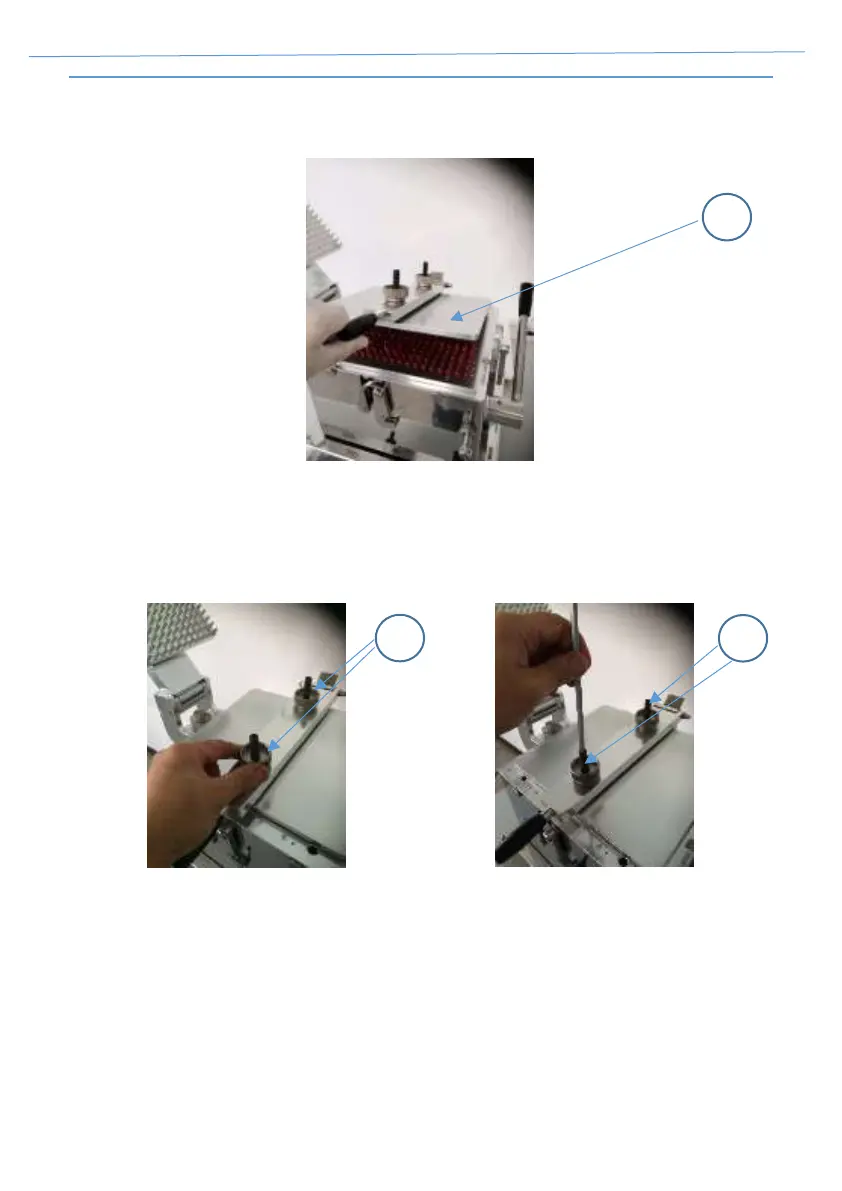

Fig. 14: Closing cover lowered
 Unlock the lock nuts (B) and use the wrench on the bolts (C) (Allen wrench number N ° 6), Fig. 15
and Fig. 16;
 Place at least one capsule for each corner;
Fig. 15: Locking rings
Fig. 16: Adjustment phase
 Match the closure cover on the four capsules;
 Lock the closing cover with the hook (D), Fig. 17;
A
B
C
