Farmall 90 - Fitting the Oil Nozzles; Fitting the Crankshaft

58
SECTION 10 -- ENGINE -- CHAPTER 1

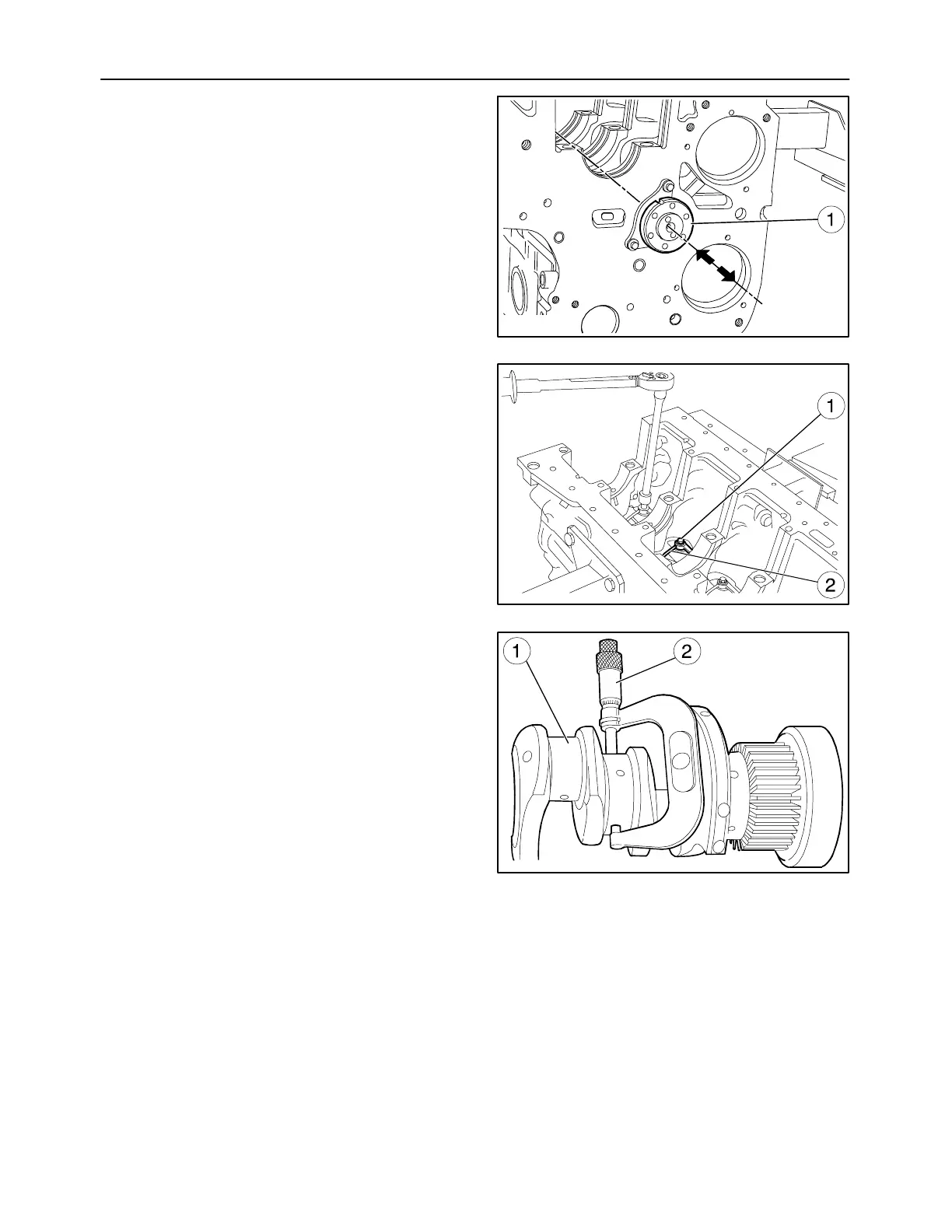

-- Check that the end float of the camshaft (1)
comes within the tolerance range prescribed on
page 10.
MIF1133A
98
Fitting the Oil Nozzles
(Disassembly operation 64.)
-- Fit the nozzles (2) and tighten the retaining bolts
(1).
MIF0957A
99
Fitting the Crankshaft
(Disassembly operations 60. to 63.)
-- If any sign of seizure, scoring or too much ovality
is found on the main journals or crankpins, they
must be reground. Before reconditioning the pins
(1), use a micrometer (2) to measure the pins of
the shaft and according to the undersizes given
on page 8, define the diameter to which the pins
must be reduced.
MIF0958A
100
