72
SECTION 10 -- ENGINE -- CHAPTER 1

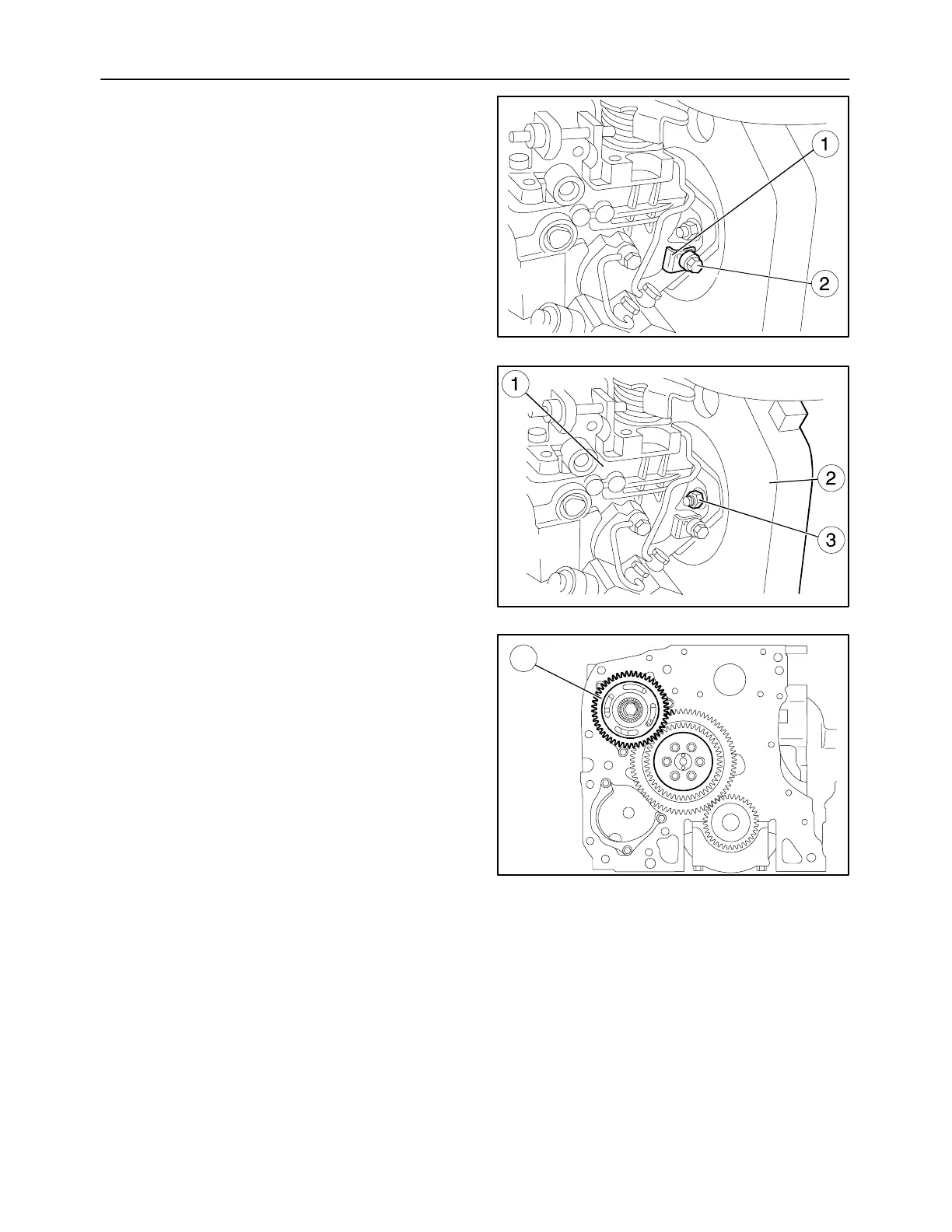

Fitting the Injection Pump
(Disassembly operations 38.)
1. Before fitting the injection pump, check that the
engine flywheel is still locked and in time with cyl-
inder no. 1 at T.D.C. (as described in opera-
tion 37.), using tools 380000988 and
380000732.
2. Do the timing for the injection pump (1, fig. 141)
in relation to the drive gear, proceeding as de-
scribed on page 101.
3. Then loosen bolt (2), insert the “L” spacer (1) and
lock bolt (2) to make the fuel pump spindle free
to turn.
MIF0920A
140
4. Fix the injection pump casing (1) to the seat of the
gear box (2) with the screws (3).
MIF0981A
141
5. Spline the gear (1) transmitting drive to the pump.
MIF0982A
1
142
