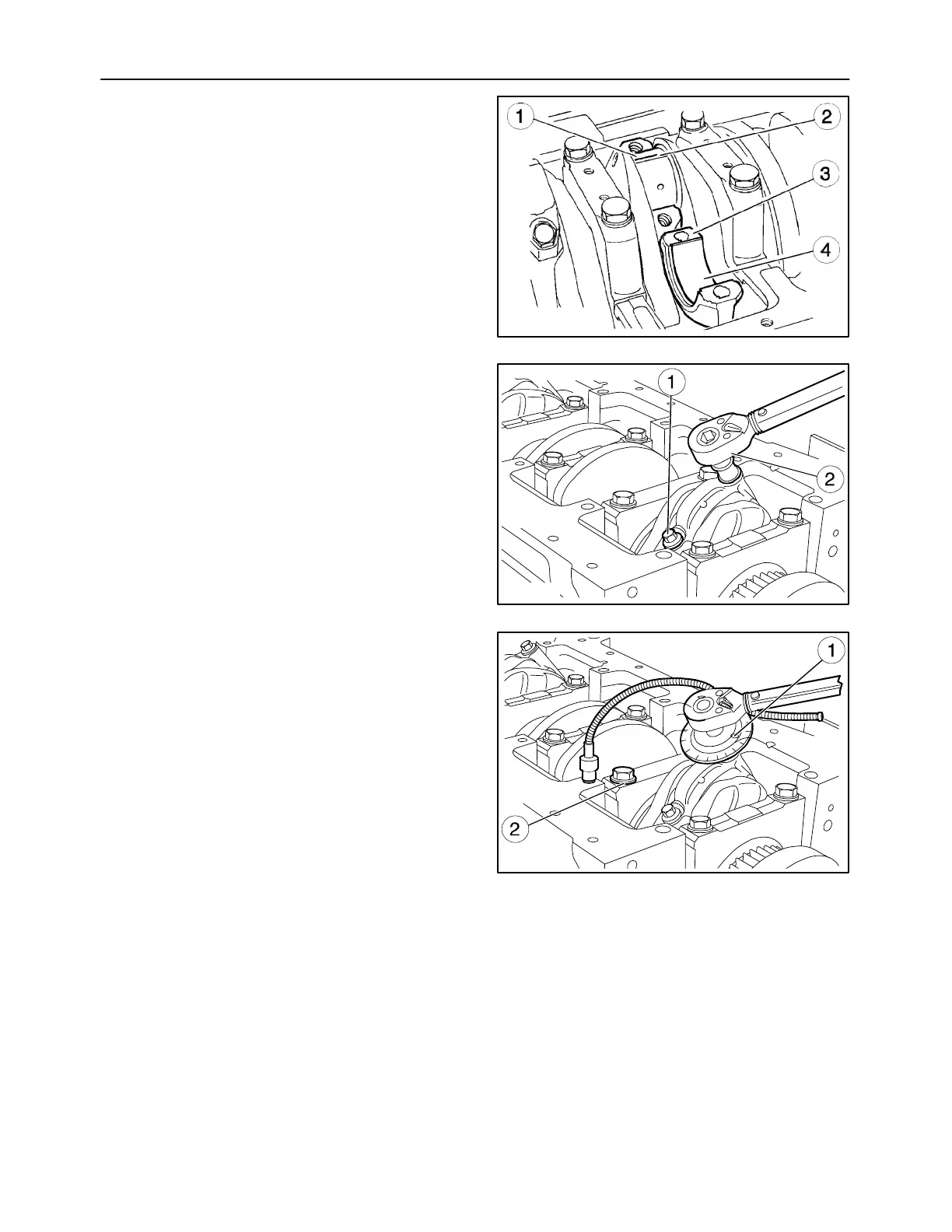

To measure the clearance proceed as follows:
-- Carefully clean the parts and remove all traces of
oil;
-- Position a l ength of calibrated wire (2) on the
crankshaft journals (1);
-- Fit the connecting rod caps (3) with the relevant
half bearings (4).
MIF1077A
116
Big End Cap Assemb ly
(Disassembly operation 56.)
1. Tighten the screws (1) previously lubricated with
engine oil with a torque wrench (2) to the torque
prescribed on page 13.
MIF0973A
117
2. Fit tool 380000304 (1) on the socket wrench and
further tighten the bolts (2) as prescribed on
page 13.
MIF0974A
