Farmall 90 - Fitting the Cooling System Union

78
SECTION 10 -- ENGINE -- CHAPTER 1
Fitting the Cooling System Union
(Assembly operation 27.)
1. Position the cooling system fitting so that the pins
(3 and 4) are against the crankcase.
2. Tighten the screws (1 and 2).

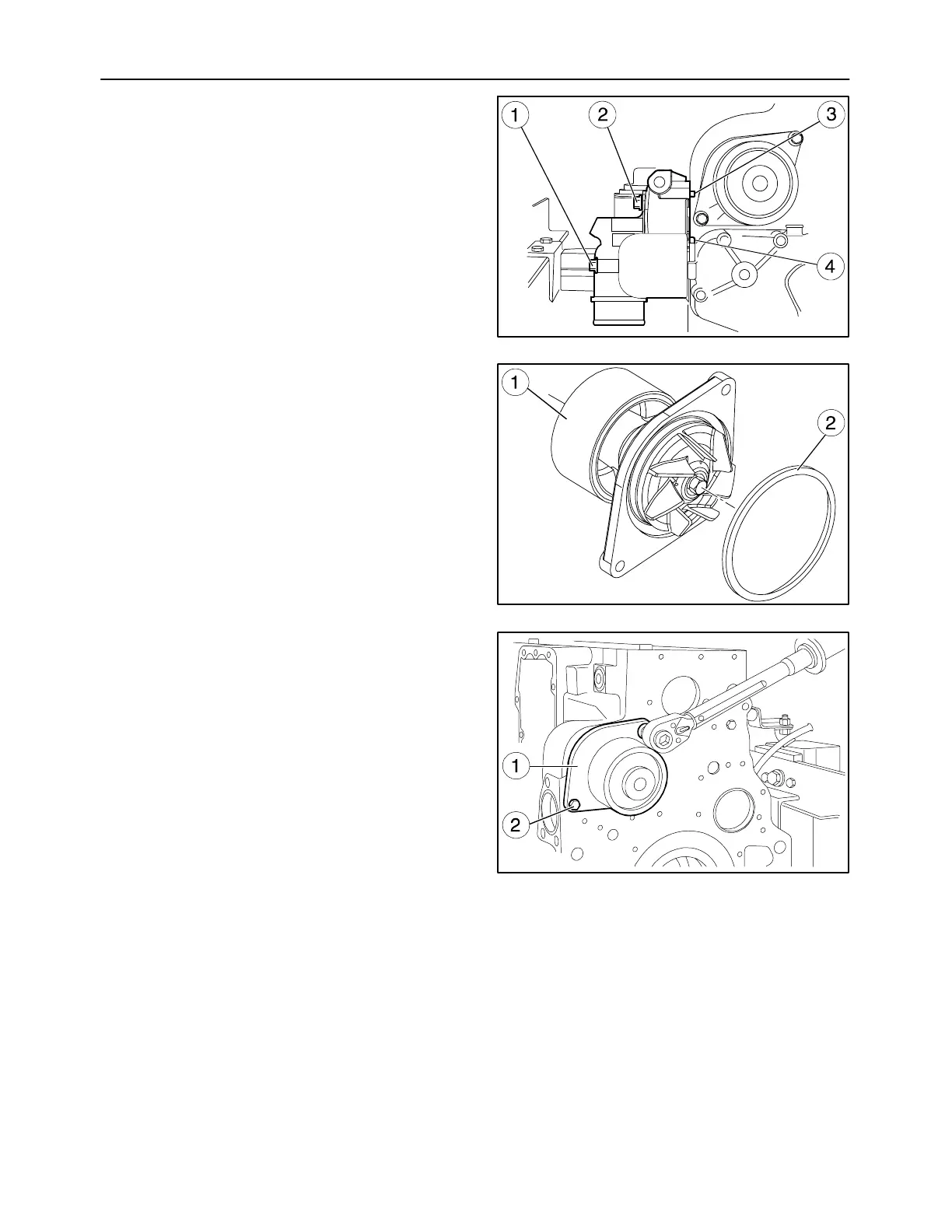

MIF1005A
158
Fitting the Coolant Pump
(Assembly operation 26.)
1. Fit a new seal (2) onto the coolant pump (1).
MIF0997A
159
2. Mount the coolant pump (1).
3. Screw down the screws (2) and tighten them to
the torque prescribed on page 12.
MIF1150A
160
