FEB-9455 User’s Manual
8

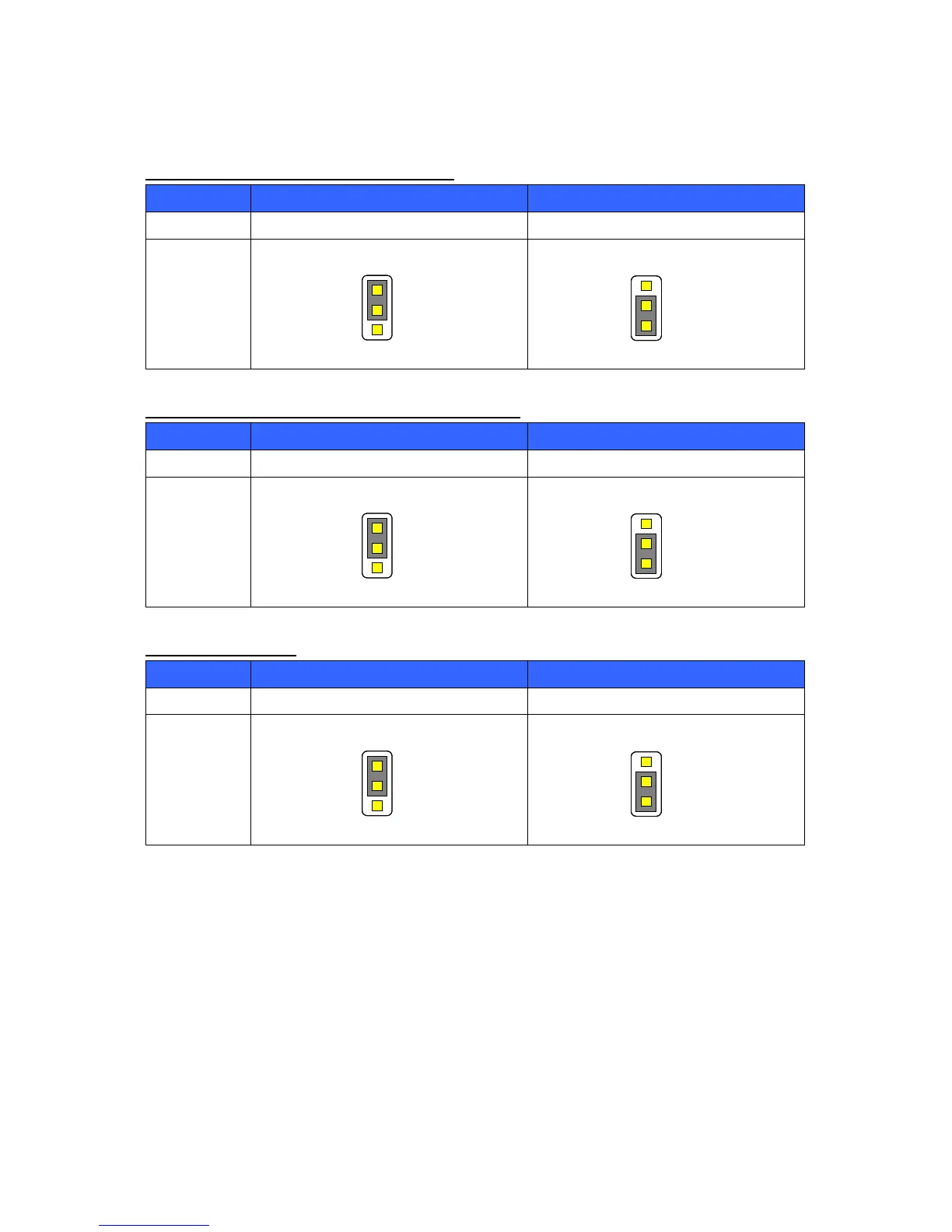

1.4 Jumper Setting
JP1：LCD Power (+3.3V / +5V) Select
Pin No. 1-2 2-3
Function LCD Power +3.3V (Default) LCD Power +5V
Jumper
Setting
JP2：Compact Flash ( Master / Slave ) Select
Pin No. 1-2 2-3
Function Master Mode Slave Mode (Default)
Jumper
Setting
JP3：CMOS Clear
Pin No. 1-2 2-3
Function Normal Operation (Default) Clear CMOS Contents
Jumper
Setting
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
