FEC PP-9635 - Remove the Motherboard

32
How to Open the PPC
How to Remove the Motherboard
Read First: Make sure power is off and all of the cables and peripherals have been detached.

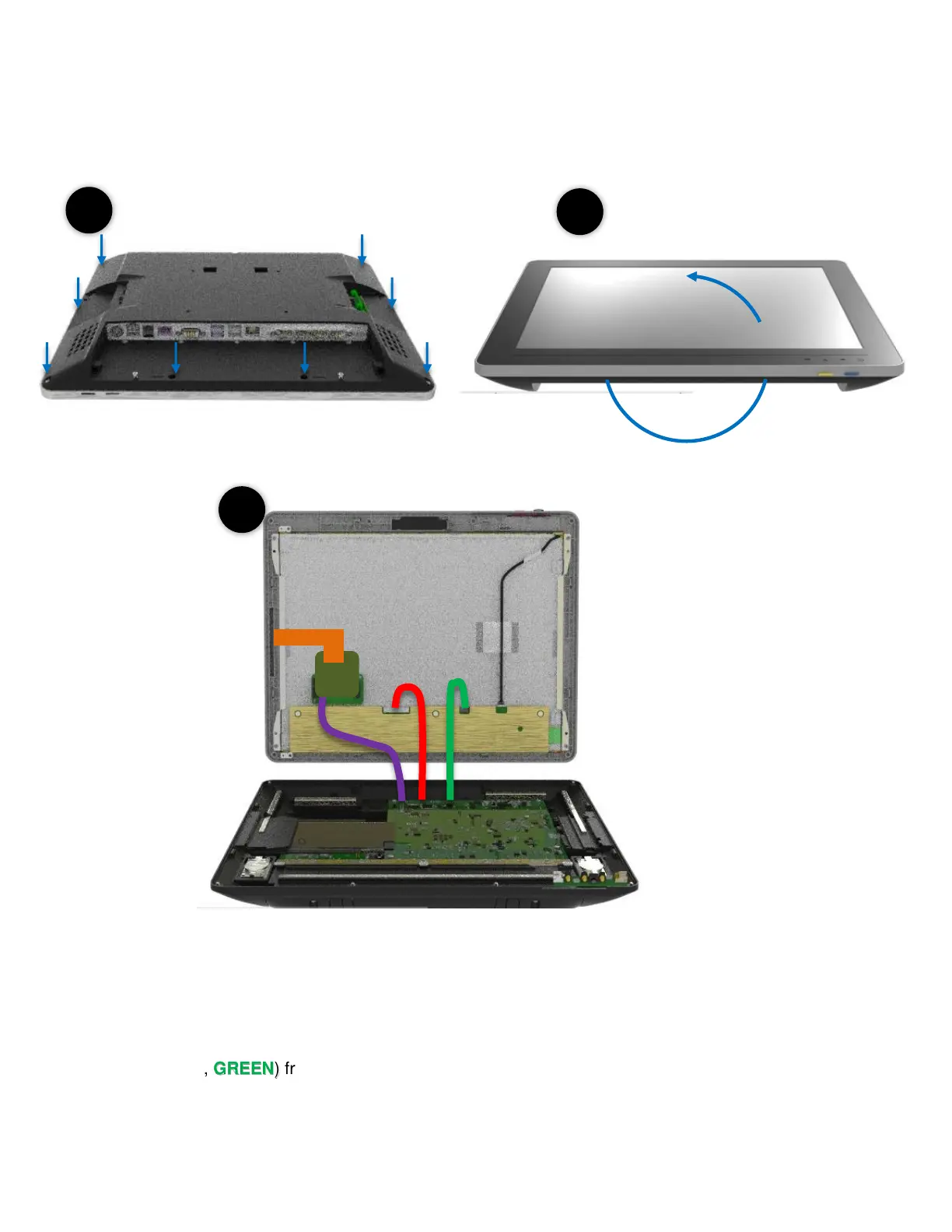

1. Remove the 8 screws
2. Flip the PPC so that the screen is facing up and the OSD is near your
3. Flip open the display as shown. There will be three connectors (Indicated by lines RED,
PURPLE,
GREEN)
from the display to the motherboard.
