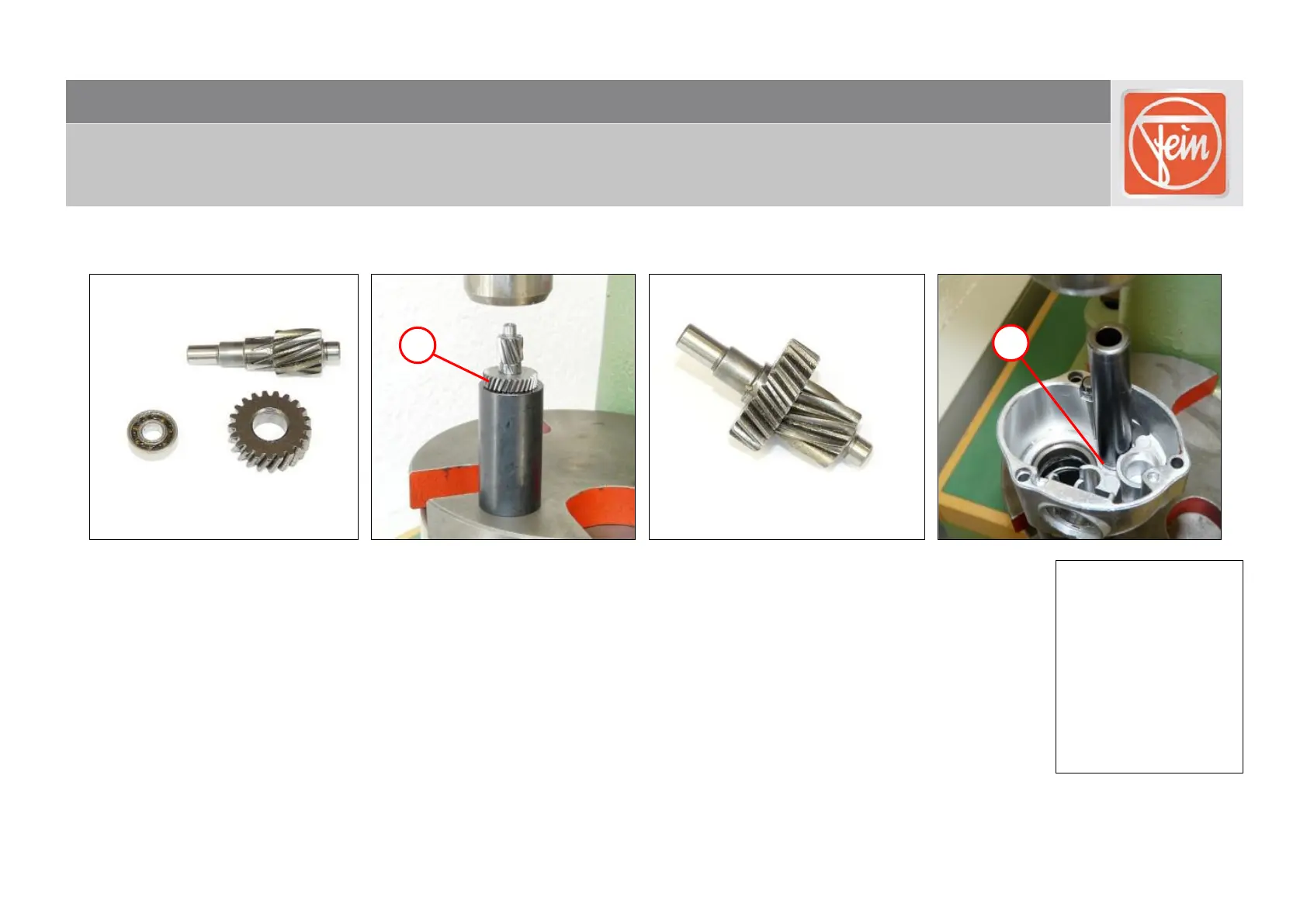

Fitting the gearbox housing [applies to: BOP 13-2 (A)]
1. Press on the gear wheel (1).
2. Press in the grooved ball bearing (2).
Tools:
- Arbor press
- Sleeve
12 mm inner diameter
30 mm outer diameter
1
2
