1. Overview
* Not include camera.
[14]
[11]
[13]
[10]
[12]
[9]
[15] [16]
[27]
[4]
[3]
[22]
[21]
[20]
[25]
[26]
[28]
[18]
[17]
[5]
[19]
[8]
[2]
[24]
[23]
[1]
[29]
[6]
[7]

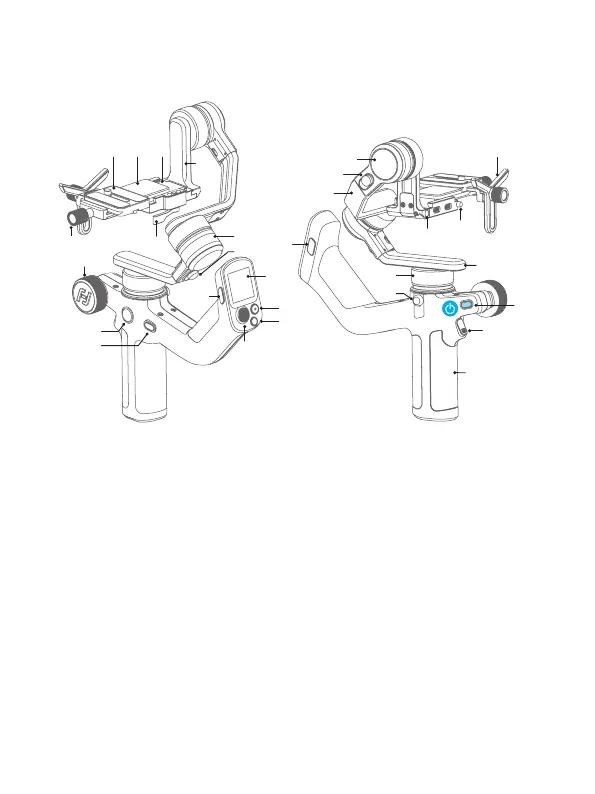

[1] Power button
[2] Trigger button
[3] F2 button
[4] Touch screen
[5] F1 button
[6] Shutter button
[7] Mode button
[8] Joystick
[9] FPV button
[10] Knob function
switching button
[11] Multifunction knob
[12] Slider lock
[13] Quick release plate safety lock
[14] Quick release plate
[15] Fixed plate slider
[16] Fixed plate
[17] Slide arm
[18] Roll axis
[19] Roll lock
[20] Tilt axis
[21] Tilt lock
[22] Cross arm
[23] Pan axis
[24] Pan lock
[25] Mounting hole for focus
motor support rod
[26] Slider safety lock
[27] Lens holder
[28] Versatile arm
[29] Handle
