FeiYu Tech SCORP Mini - Balancing the Roll Axis; Balancing the Pan Axis

- 6 -
2
1

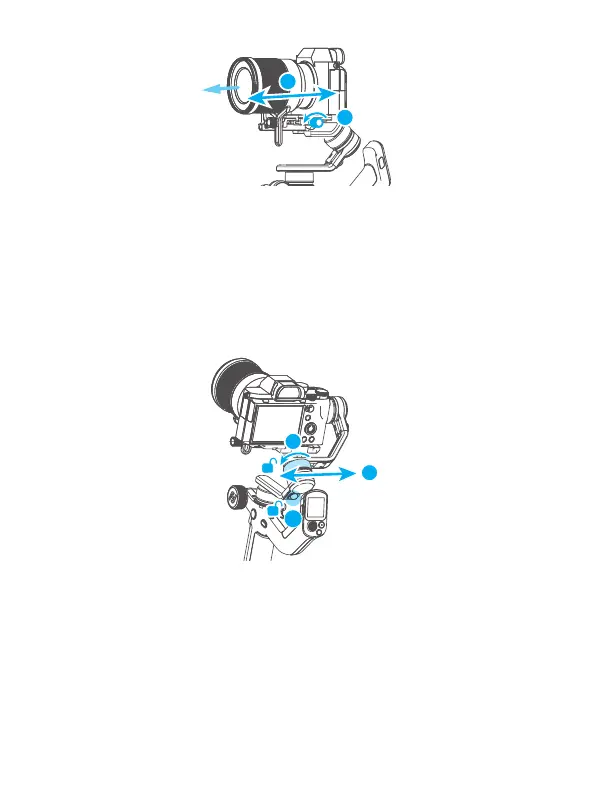

4.2 Balancing the roll axis
a. Unlock the roll lock ① , check the direction which the camera tilts to.
b. If the camera tilts to one side, then the camera is that side heavy, loosen the cross
arm lock knob ② and then move the cross arm to the opposite direction, until the
camera can stay still and horizontal to the ground.
c. Tighten the cross arm lock knob ② .
The roll axis is balanced when the camera can stay still and horizontal to the ground.
3
2
1
4.3 Balancing the pan axis
a. Unlock the pan lock ① . Hold the tripod, and tilt the gimbal forward until it is
horizontal to the ground.
b. If the camera tilts to one side, then the camera is that side heavy, loosen the
vertical arm lock knob ② and then move the vertical arm ③ to the opposite
direction, until the camera can stay still and horizontal to the ground.
c. Tighten the vertical arm lock knob ② .
The pan axis is balanced when the camera can stay still and horizontal to the ground.
