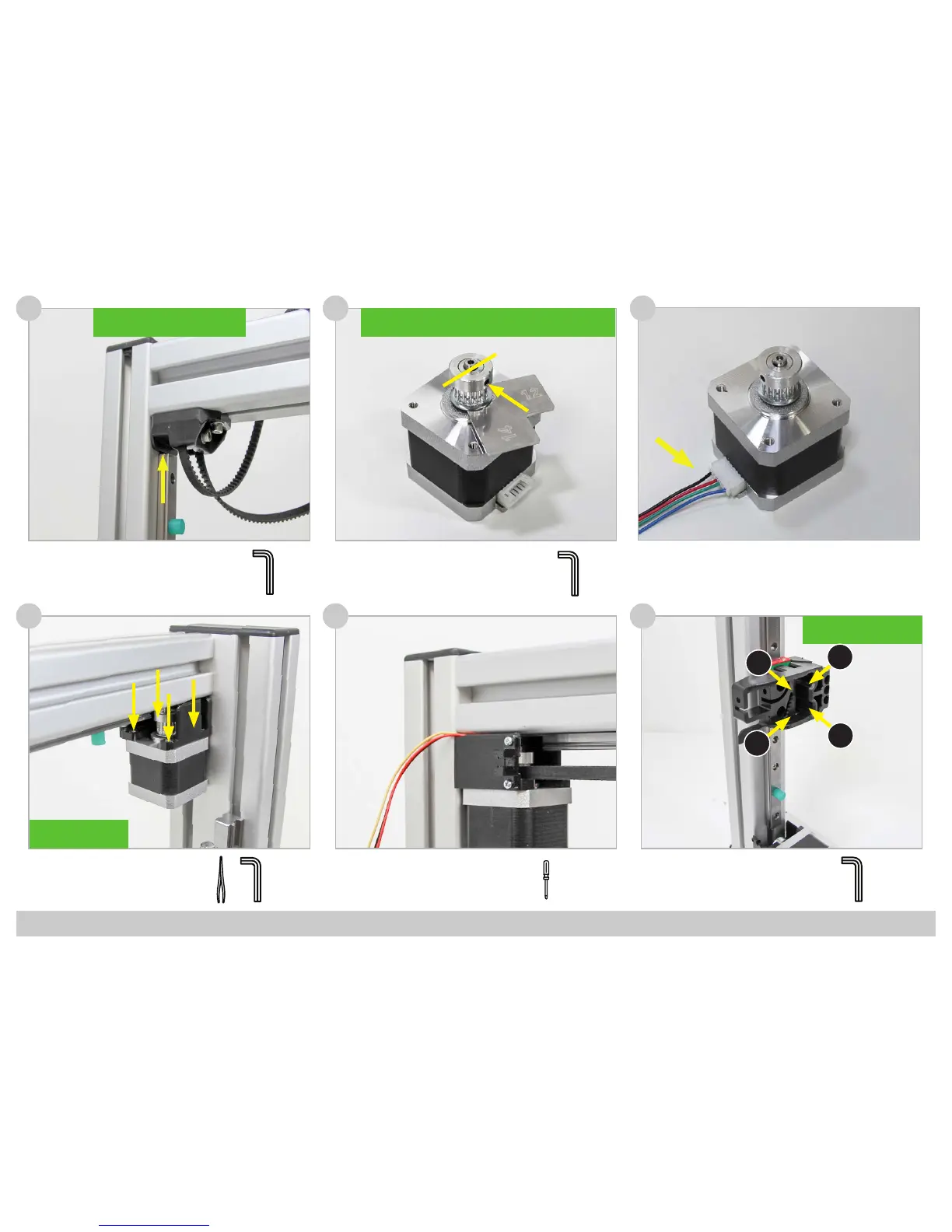

FELIXprinters Assembly Manual for the FELIX One
Page 13
Tools:
41
(1x) Motor Assembly
(4x) CSK Bolt M3 x 8
39 40
42 43
(2x) Small Screw 2,2 x 8
(1x) Opto Sensor X
(1x) Cable Stepper X
38
(4x) CSK M3 x 6
(1x) Extru Base
Tools:
!! Make sure to Position the Rail
against X-Axis Belt Mount !!
Tools:
2,5
(1x) Motor
(1x) Pulley
(1x) Set Screw M3 x 6
Tools:
1,5
!! Make sure the at side of the Motor Axle is Perpendicular
to the Set Screw !!
Tools:
2
!! Use Tweezer to
Position the Bolts !!
+
2
!! Tighten in a Crosswise
Pattern !!
1
3
4
2
