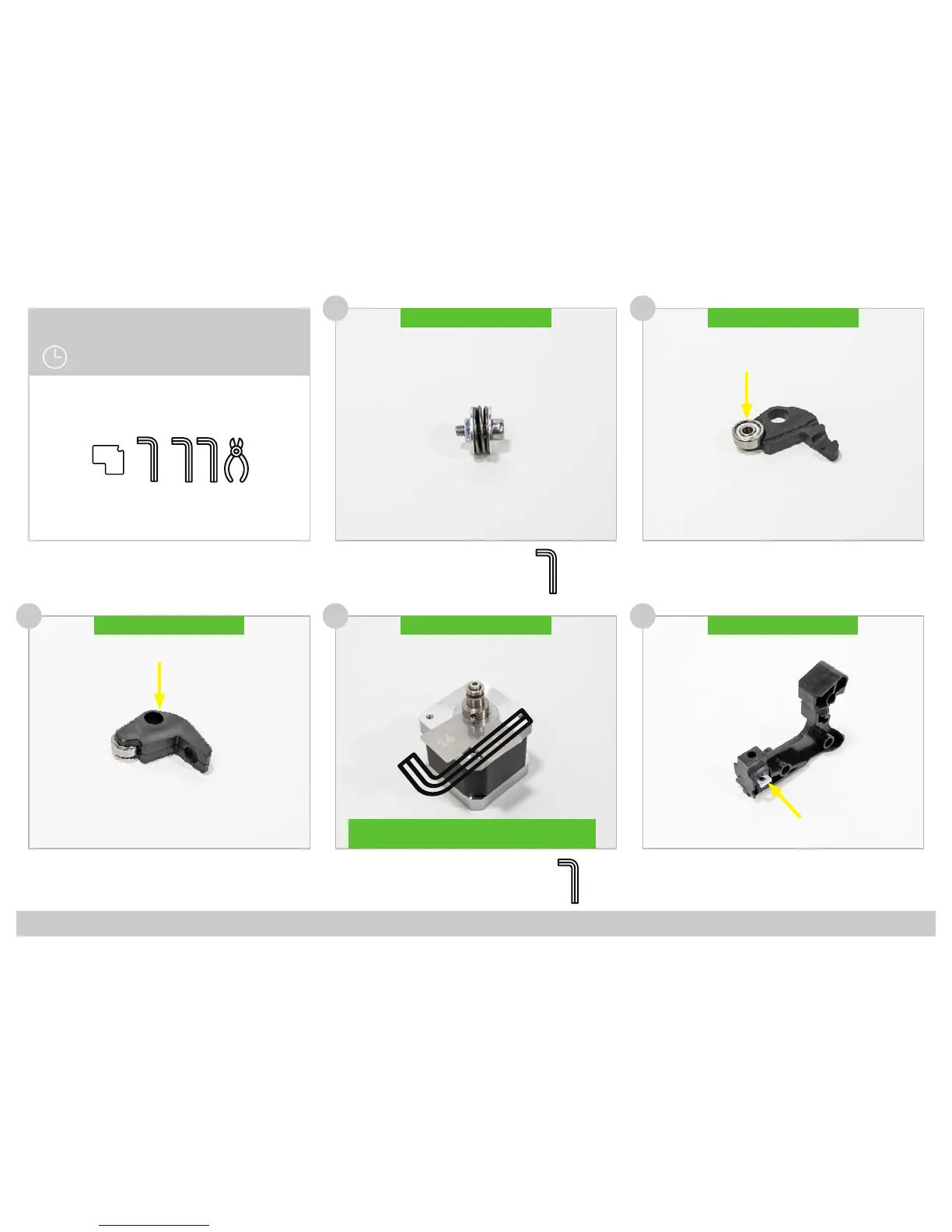

FELIXprinters FELIX One - Chapter 5: Print Head

FELIXprinters Assembly Manual for the FELIX One
Page 18
71
(1x) Extru Arm Pt. 2
69 70
72 73
(2x) Large Washer M4
(1x) Bolt M4 x 12
(1x) Thin Nut M4
(1x) Spring
(1x) Extru Arm Pt. 1
(1x) Bearing
(1x) L-Bracket
(1x) Square Nut M4
!! For Dual Head: Repeat this Step !! !! For Dual Head: Repeat this Step !!
!! For Dual Head: Repeat this Step !!
Tools:
3
!! For Dual Head: Repeat this Step !!
(1x) Motor
(1x) Extruder drive wheel
(1x) Set Screw M3 x 6
Tools:
1,5
!! Make sure the at side of the Motor Axle is Perpendicular
to the Set Screw !!
!! Repeat this Step !!
Tools:
Chapter 5: Print Head
90 Minutes
1,5
1,5
32,5
