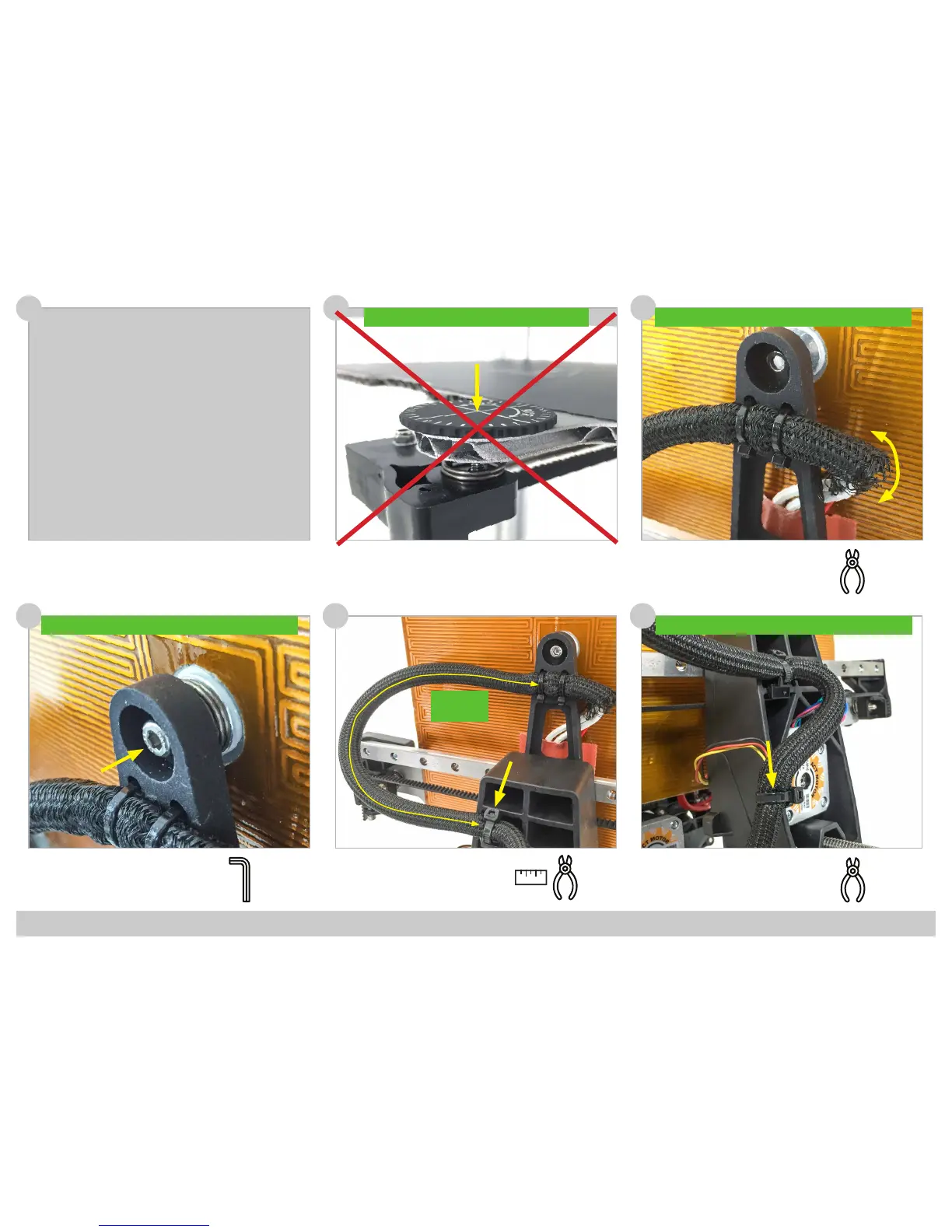

FELIXprinters Assembly Manual for the FELIX One
Page 17
65 66
(1x) Cable ties for mounting
cables on z bracket
64
(1x) Bolt M4 x 16
(1x) Spring
!! Tighten the Bolt against the end of the Thread !!
Tools:
3
End to End
25cm
Tools:
(1x) Cable ties for mounting
cables on z bracket
Tools:
!! Give the Cable enough Slack and tighten the Cable Tie !!
Tools:
62
(2x) Thumb screw
(2x) Spring
(1x) Build Platform Assembly
(2x) Cable Tie
63
!! Repeat for Front and Rear Thumbscrew !! !! Give the Cable enough Slack and tighten the Cable Ties !!
61
