FELIXprinters FELIX One - Page 24

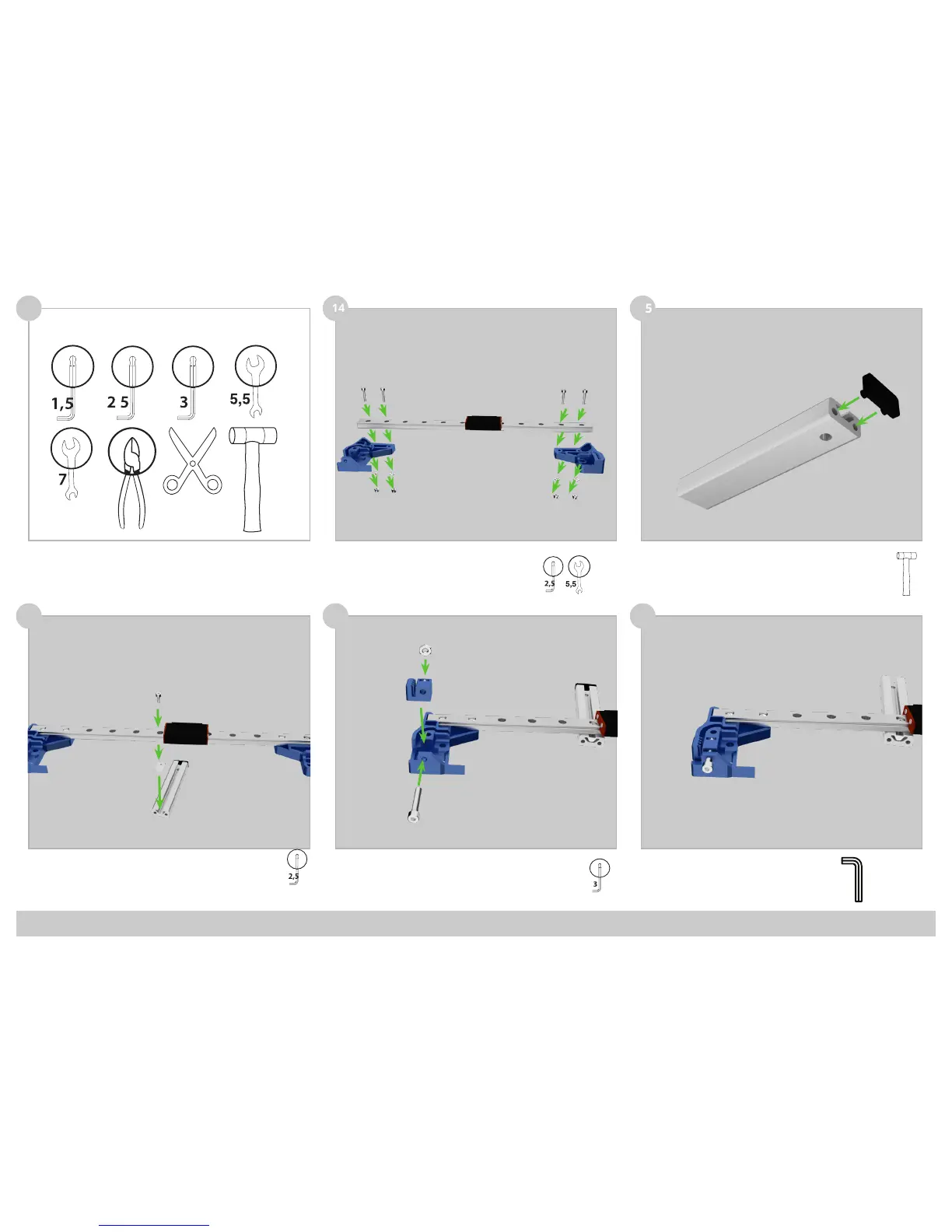

FELIXprinters Assembly Manual for the FELIX One
Page 25
Tools:
116
114
115
117
113
(1x) Electronic Enclosure
Assembly
Tools:
118
Tools:
3
Tools:
1x Y-stage bracket pt1
1x Y-stage bracket pt2
4x Bolt M3x16
4x Smal washer M3
4x Self locking nut M3
Tools:
1x Bolt M3x8
1x Small t-slot M3
1x Y stage tensioning bracket
1x Thin nut M4
1x Bolt M4x25
