FELIXprinters FELIX One - Page 25

FELIXprinters Assembly Manual for the FELIX One
Page 26
116
114
115
117
113
Tools:
118

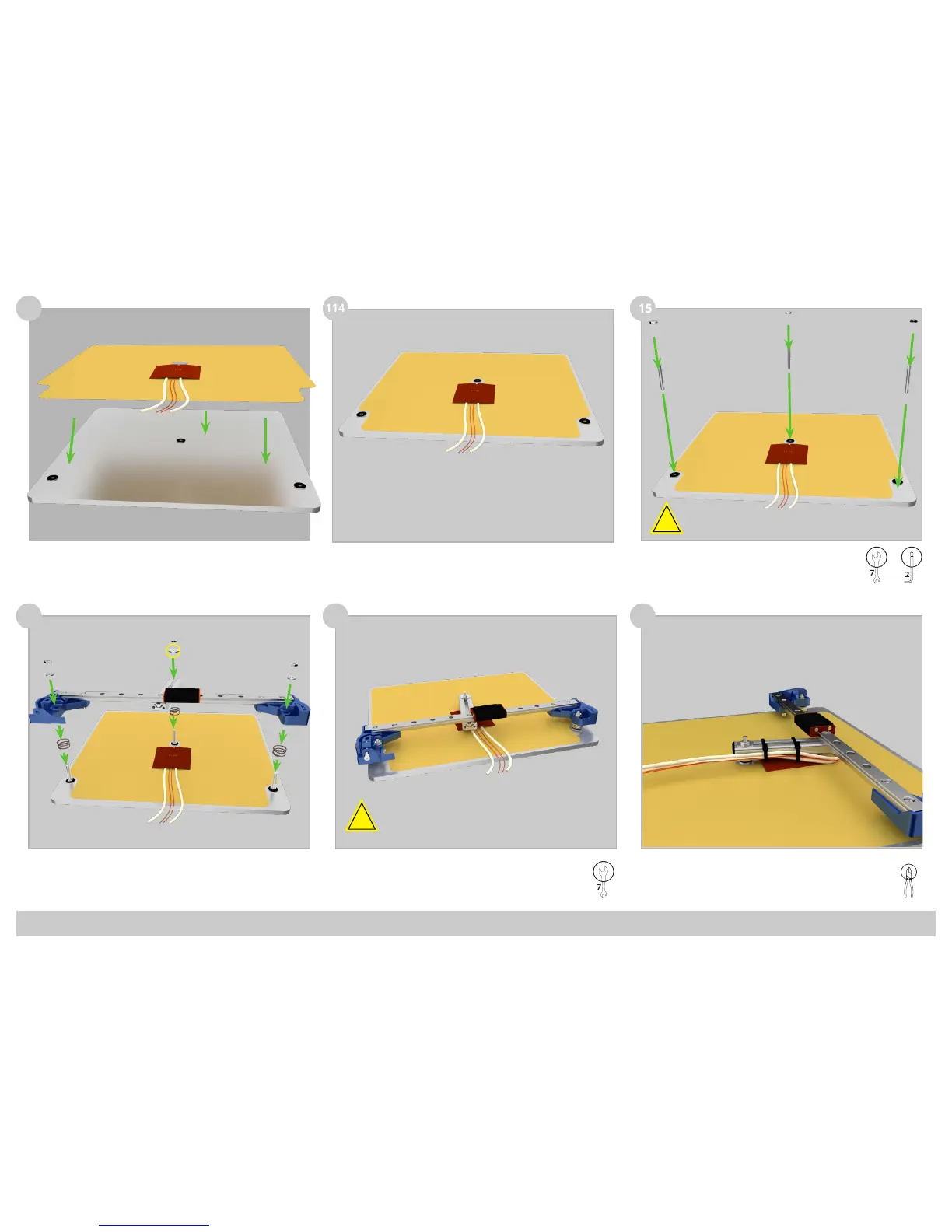

ATTENTION: Bottom of set-screw should NOT touch
plate internally. Keep distance of approx. 0.5mm
!
3x Set screw M4x30
3x Thin nut M4
Large washer
3x spring
2x Small washer
1x Large washer
3x Thin nut M4
!
Tighten the nuts a couple of turns, make sure that
the springs are still able to compress for further
ne-adjustment later.
2x tie-wrap
