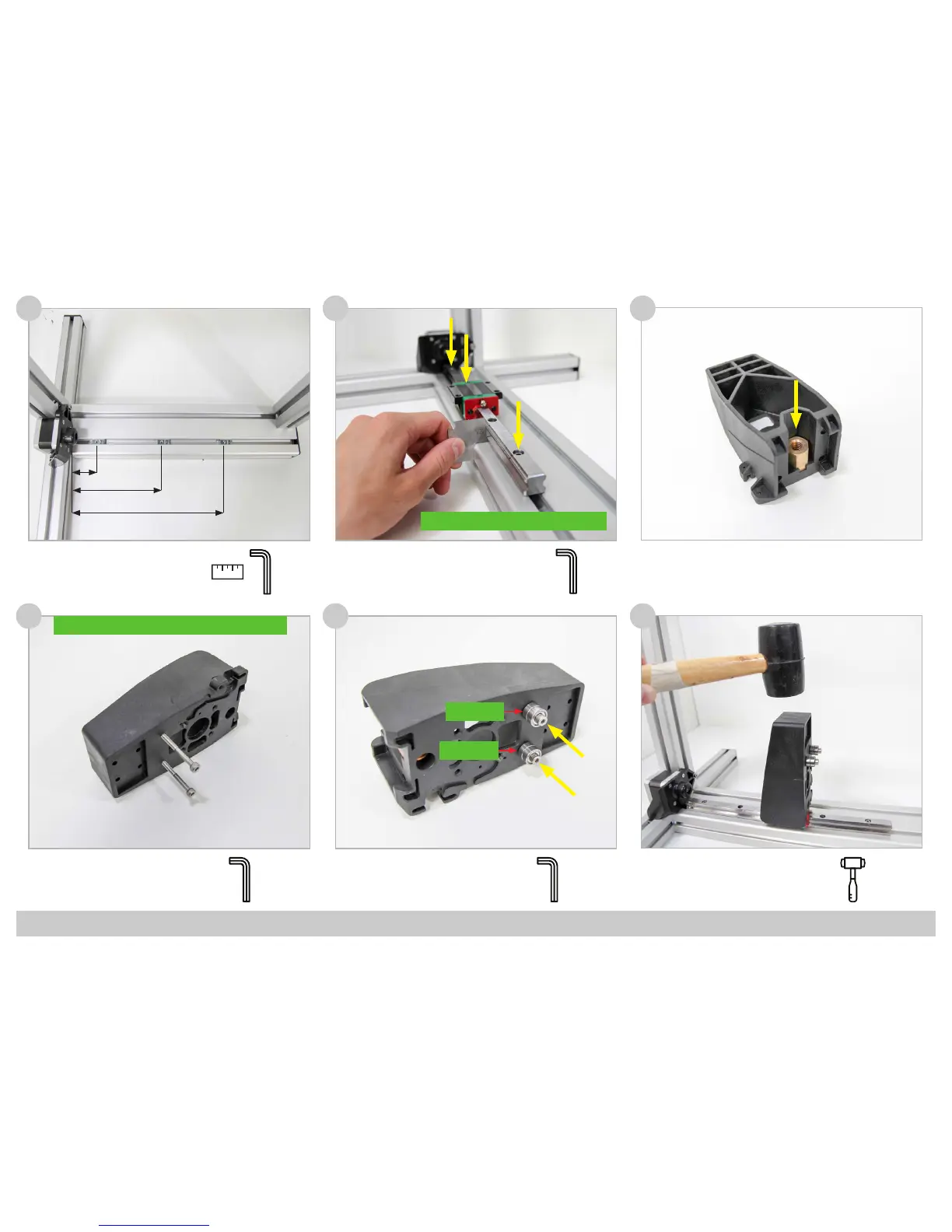

FELIXprinters Assembly Manual for the FELIX One
Page 9
Tools:
18
(2x) Bolt M4 x 40
(2x) Locknut M4
16 17
19 20
(4x) Bearing
(2x) Bolt M4 x 25
(2x) Small Washer M4
(3x) Bolt M4 x 20
(1x) Linear Guide HGW15
Use tape measure to allign.
(1x) Z-Axis Lift
(1x) Hexagon Nut
15
(3x) T-Nut M4
16cm
28cm
4cm
!! Don’t let the Carriage run of the Rail !!
Tools:
3
!! Remove Bolts after pulling Locknuts into Z-Axis Lift !!
!! Washer!!
!! Washer!!
Tools:
3
Tools:
3
Tools:
2
