Page 10
24

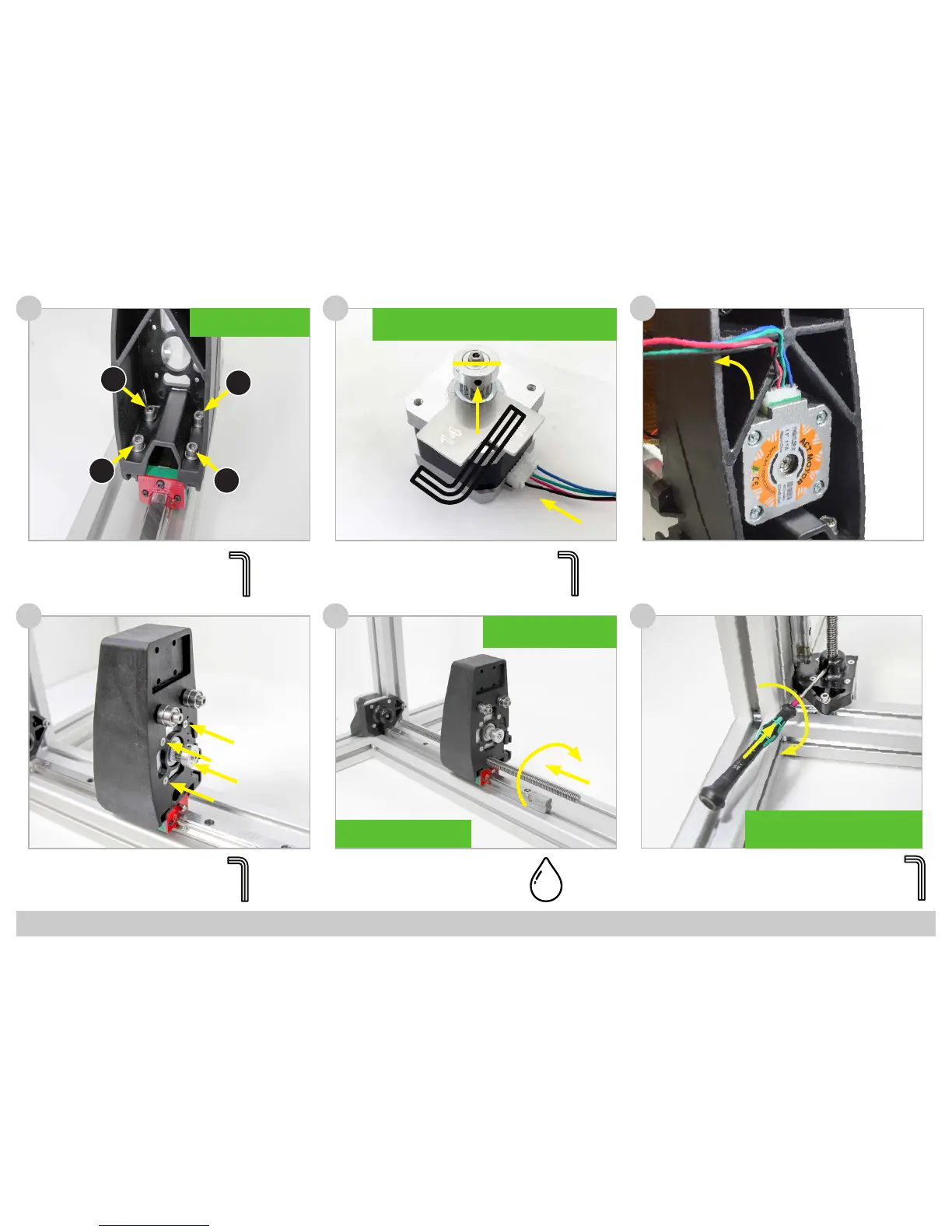

(1x) Motor Assembly
(4x) CSK Bolt M3 x 8
22 23
25 26
(1x) Spindle
(1x) Motor
(1x) Pulley
(1x) Set Screw M3 x 6
(1x) Cable Stepper Y
(1x) Cable Stepper Y
21
(1x) Z-Axis Lift Assembly
(4x) Bolt M5 x 16
(4x) Small Washer M5
(1x) Set Screw M3 x 6
Note: use a high quality and sharp 1.5 mm allen
key to properly x the spindle on the motor.
Tools:
4
Tools:
2
Tools:
1,5
Tools:
1,5
!! Make sure the Hexagon Nut
stays in its Socket !!
!! Make sure the at side of the Motor
Axle is Perpendicular to the Set Screw !!
!! Make sure the at side of the Motor Axle is Perpendicu-
lar to the Set Screw !!
Tools:
!! Apply Grease to the Spindle.
Do NOT use Oil as Lubricant !!
!! Tighten in a Crosswise
Pattern !!
4
2
1
3
To Next Page
