Grommet mount assembly For worksurface up to 1.5”
4mm Allen key
(Included)

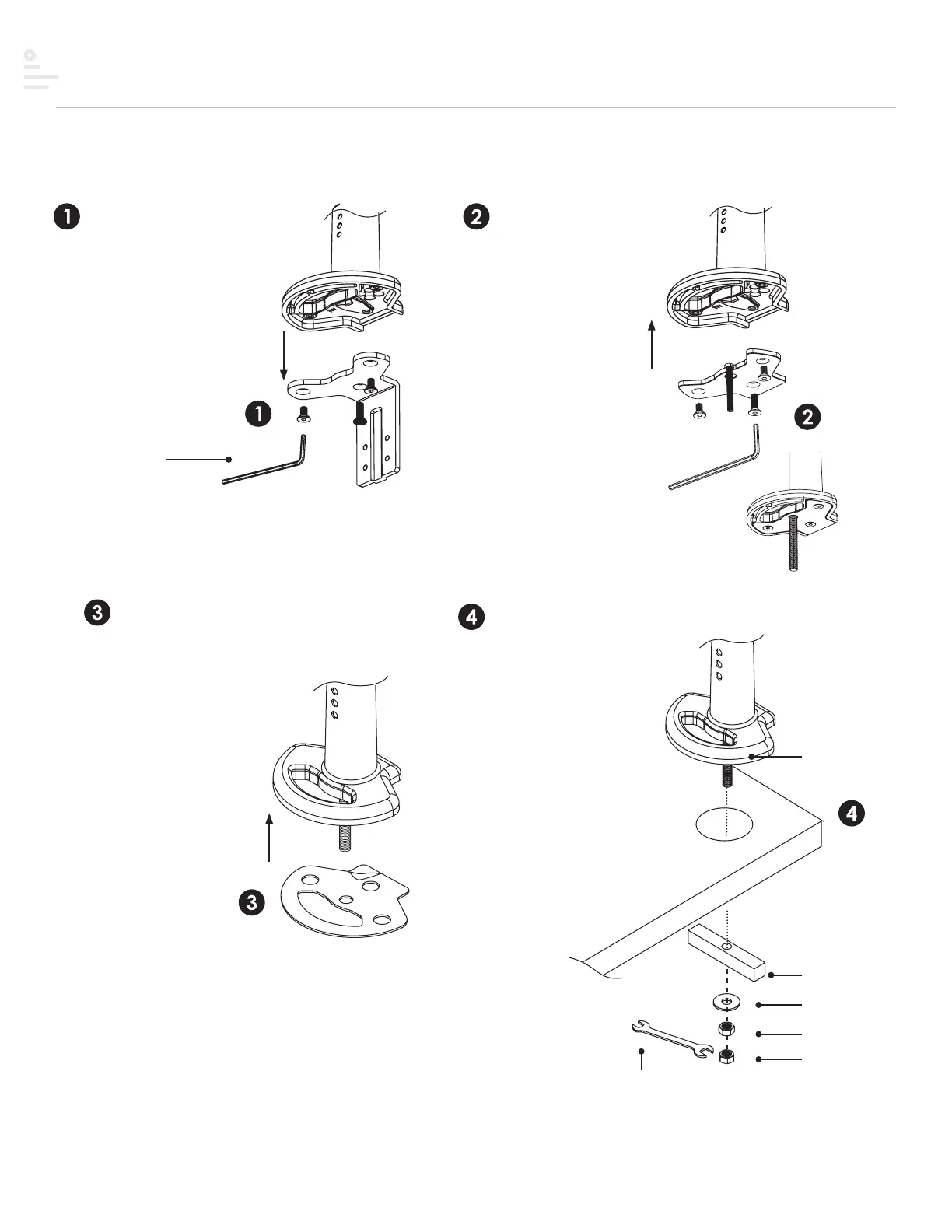

Step 1
Remove the 3 screws with the
4mmAllenkey.
Step 3
Adhere the adhesive pad
underneath the base to protect
the worksurface.
Step 2
Insert the large screw to the
grommet plate and reattach the 3
screws with the 4mmAllenkey.
Step 4
Complete the grommet mount
assembly with the remaining
components. (bolt should be
visible under worksurface)
14 mm nut
14 mm nut
washer
plate
14 mm wrench
(Included)
bolt
