Fellowes Proteus A3 - Laminator Controls Overview; Display and Status Indicators; Temperature and Function Controls; Speed and Motor Controls

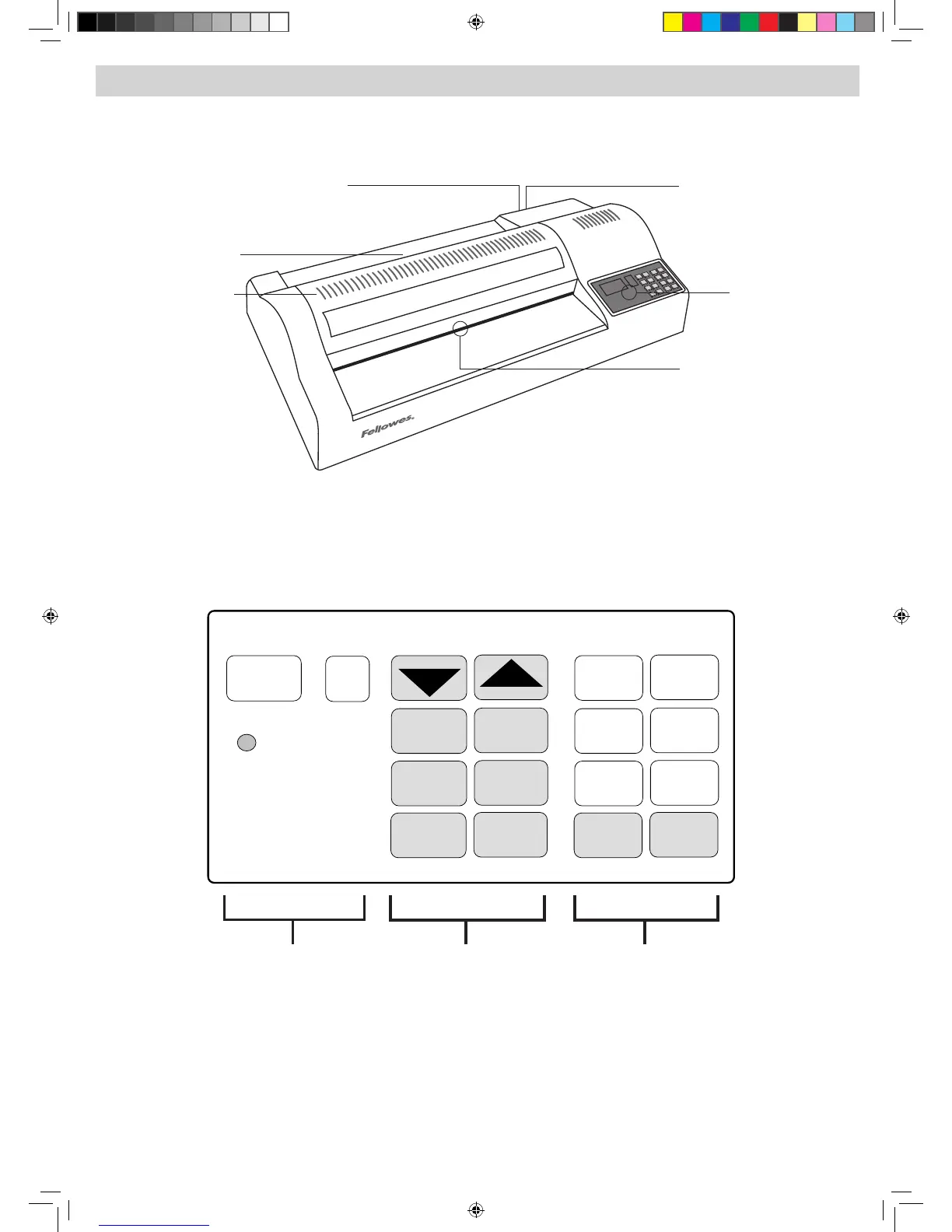

Illuminated user interface
Pouch / document entry
Main fuse location (at rear next to power inlet)
Pouch / document exit
Cooling system vents
On/off switch (at rear)
LAMINATOR CONTROLS
COLD
HOT
STOP
REV
PREHT
MOUNT
1
2
MEAS
CARRI
3
4
DN
UP
5
6
TEMPERATURE
SPEED / MOTOR
UPDN
SPEEDTEMPERATURE
°C
DISPLAY
CARRI
MOUNT
HOT
MEAS
PREHT
COLD
READY
90
5
LED & Status Display
Temperature Adjustment
& Function Controls
Speed & Motor Controls
