CONTROL PANEL

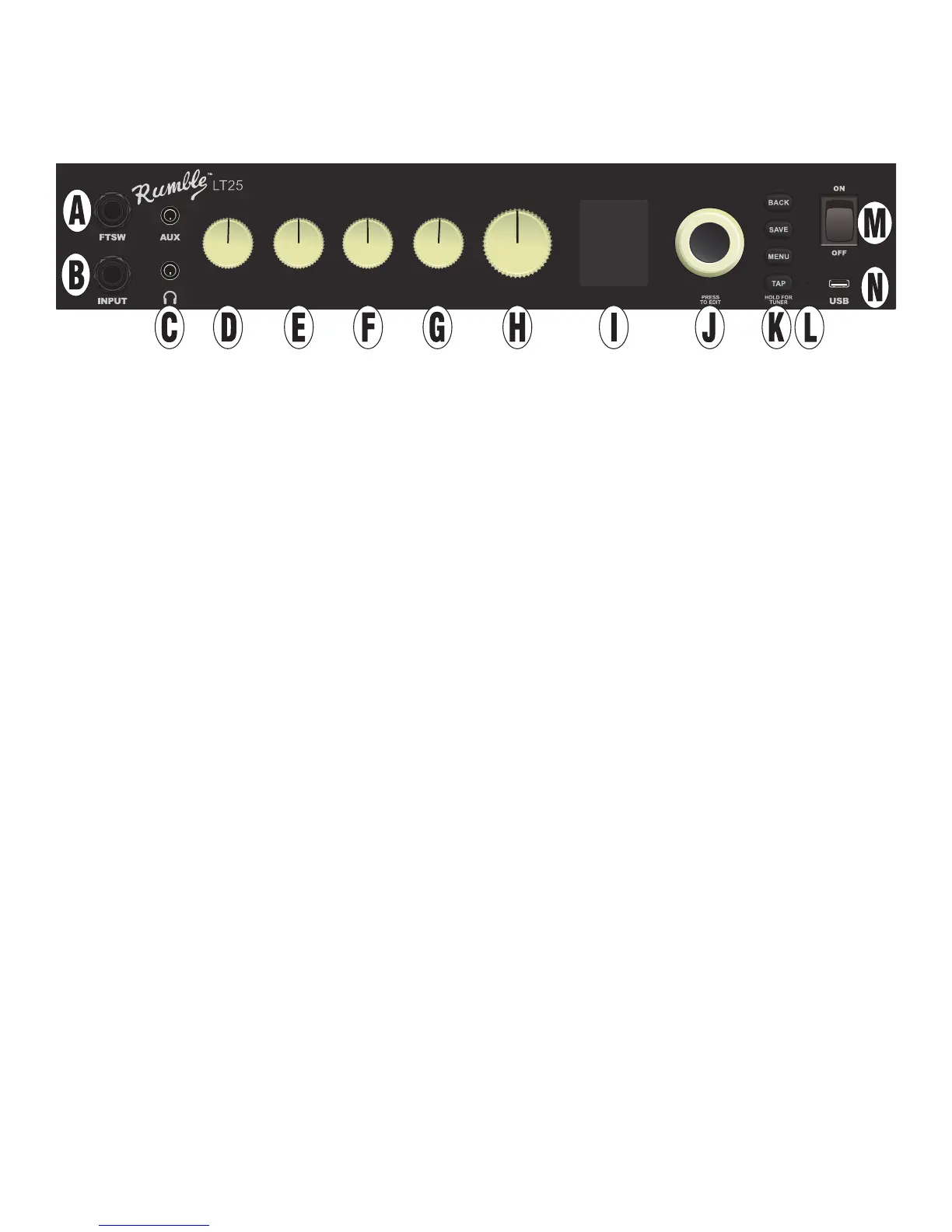

The Rumble LT25 top control panel consists of an INSTRUMENT INPUT, ve CONTROL KNOBS, a DISPLAY
WINDOW, an ENCODER wheel, four UTILITY pushbuttons, a FOOTSWITCH INPUT, an AUXILIARY INPUT (1/8”),
a HEADPHONE OUTPUT (1/8”), a TAP LIGHT and a USB PORT.
A. FOOTSWITCH (“FTSW”): Connect optional single-button footswitch here (page 16).
B. INPUT: Plug instrument in here.
C. AUXILIARY INPUT, HEADPHONE OUTPUT: 1/8” auxiliary input for connecting external audio devices,
and 1/8” output for headphone use (page 18). Headphone output disables speaker.
D. GAIN: Aects gain setting in each preset.
E. BASS: Aects bass tone setting in each preset.
F. MIDDLE: Aects midrange tone setting in each preset.
G. TREBLE: Aects treble tone setting in each preset.
H. MASTER VOLUME: Controls overall volume.
I. DISPLAY WINDOW: Shows preset in use, preset contents and parameters, and other functions (i.e., tuner
and other menu functions).
J. ENCODER: Rotary control with press-switch function. For viewing, selecting and adjusting Rumble LT25
presets, controls and other functions.
K. UTILITY BUTTONS
BACK: Returns user to the previous screen or original preset screen.
SAVE: For saving preset modications, renaming presets and saving presets to a new location.
MENU: For accessing tuner, footswitch and other functions (page 14).
TAP: For setting delay times (page 12) and accessing built-in tuner (page 15).
L. TAP LIGHT: Flashes in time with delay eects.
M. POWER: Turns amplier on and o.
N. USB PORT: Amp connection point for USB audio recording (page 18).
O. IEC POWER INLET (REAR PANEL; NOT SHOWN): Using the included power cord, connect to a grounded
outlet in accordance with the input power voltage and frequency specied at the power inlet.
2
GAIN
BASS
MIDDLE
TREBLE
MASTER
