FENDT IDEAL 9 Workshop Service Manual

GUID-0B8214DA-BA56-4FAA-A72A-5EC7002E2381-high.jpg [High]

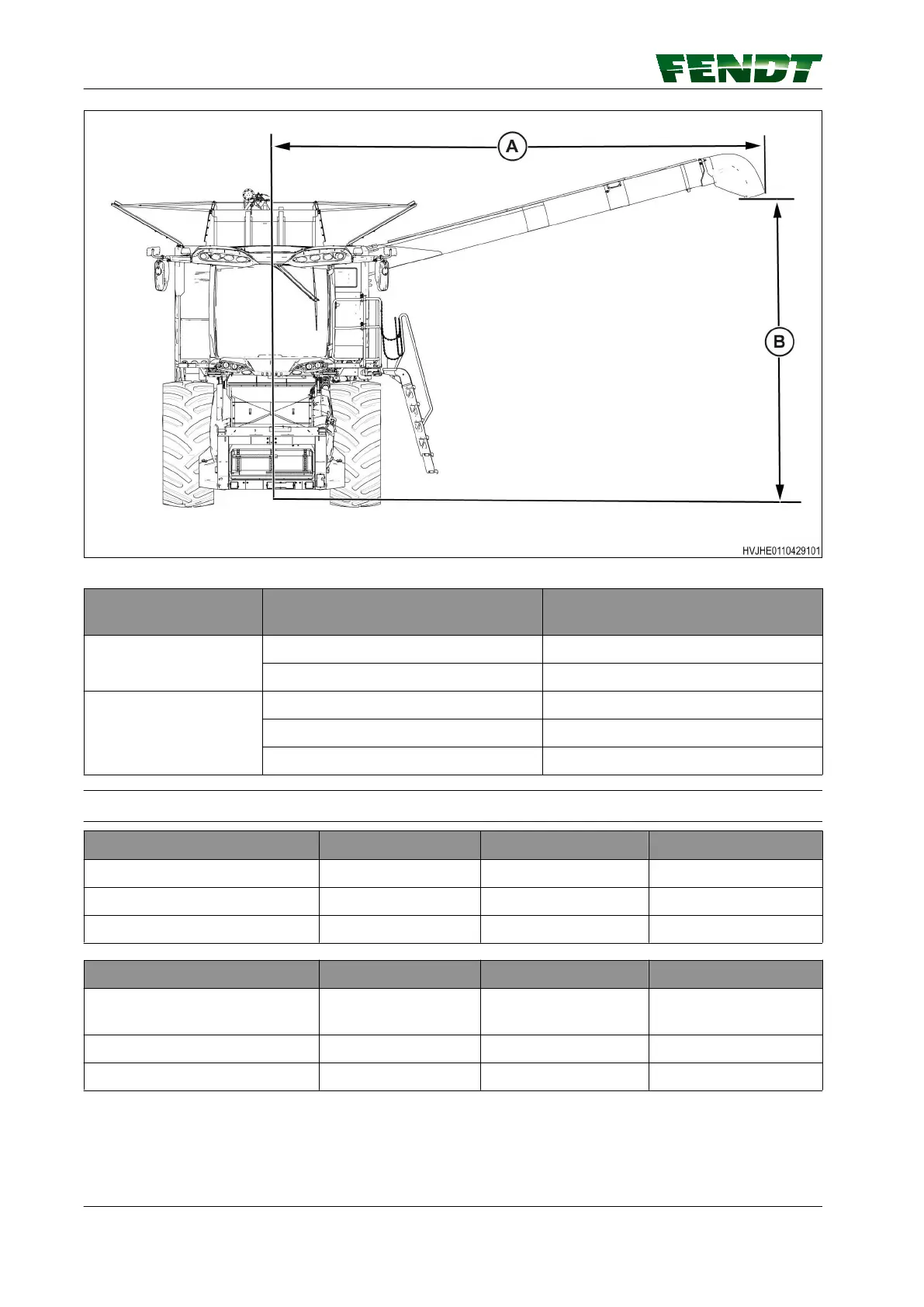

Fig. 81
Grain tank unloader
system
Discharge length (A) Discharge height (B)
Streamer 140 (140 l/s) 7635.3 mm (300.6 in) 4328.5 mm (170.4 in)
9148.8 mm (360.2 in) 4637.0 mm (182.6 in)
Streamer 210 ( 210 l/s) 7745.6 mm (304.9 in) 4253.9 mm (167.5 in)
9210.2 mm (362.6 in) 4557.7 mm (179.4 in)
10722.7 mm (422.2 in) 4861.6 mm (191.4 in)
1.4.2 Mass (weight)
IDEAL 7 Wheels ParaLevel Tracks
Total 19 460 kg (42 902 lbs) 20 365 kg (44 897 lbs) 23 085 kg (50 893 lbs)
Front 9960 kg (21 958 lbs) 10 865 kg (23 953 lbs) 13 640 kg (30 071lbs)
Rear 9500 kg (20 943 lbs) 9500 kg (20 943 lbs) 9445 kg (20 823 lbs)
IDEAL 8 Wheels ParaLevel Tracks
Total 20 370 kg (44 908
lbs)
21 245 kg (46 837 lbs) 24 000 kg (52 911 lbs)
Front 10 165 kg (24 410 lbs) 11 045 kg (24 350lbs) 13 850 kg (30 534 lbs)
Rear 10 205 kg (22 498 lbs) 13 850 kg (30 354 lbs) 10 150 kg (22 377 lbs)
GUID-C6644C83-1D82-4A06-8A82-E864B57BD301 [V3]
1. General
1-60 IDEAL Series Combine
79037318C
