24 BYPASS CONTACT.
This signal is used to connect an external security switch to detect door closed position.
25 SLOW CLOSING.
This signal is used for ordering to close the door slowly. The slow signal has priority over
the control signals and the photocell. It's created for working with re ghting systems.
26 FLOOR LEVEL.
This input is used to connect the external emergency supplier that allows the opening
manoeuvre in the case of power failure. Fermator emergency supplier uses a battery of
12 V, able to give power during 15 seconds for a passengers rescue.

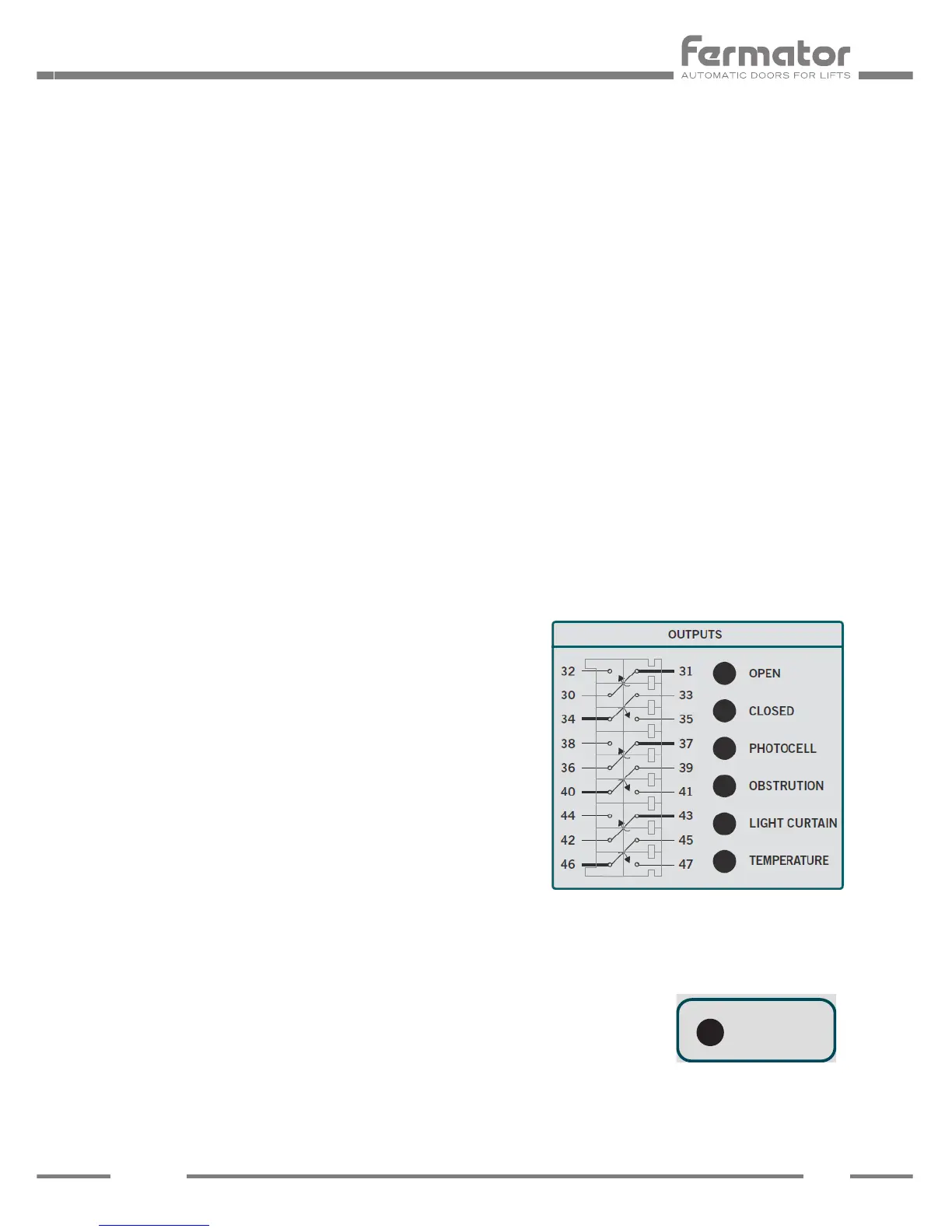

30 - 47 OUTPUT RELAYS AND LED INDICATORS.
Output relays have been provided to give continuous information to the main lift controller
concerning the status of the doors.
• Open.
LED indicator and relay activated when the doors are fully open.
• Closed.
LED indicator and relay activated when the doors are fully closed and locked.
• Photocell.
LED indicator and relay activated when the photocell or the reopening input is
operated.
• Obstruction.
LED indicator and relay activated when an
obstacle is detected that stops the doors
from closing. The signal will reset when
the doors reach the opened or closed
position.
• Light curtain.
LED indicator and relay activated when a
failure occurs on the light curtain.
• Température.
LED indicator and relay activated when
the VF temperature or motor temperature
exceeds the safety limit. When this output
is activated the manoeuvre must give the
order to the cabin to go to the next oor,
open the door to let out the passengers and stop applying tension to the motor.
• Status.
Blinking green LED indicating proper working conditions. If
an alarm occurs the LED lights red.
OK STATUS
INPUTS / OUTPUTS
