6
VF7

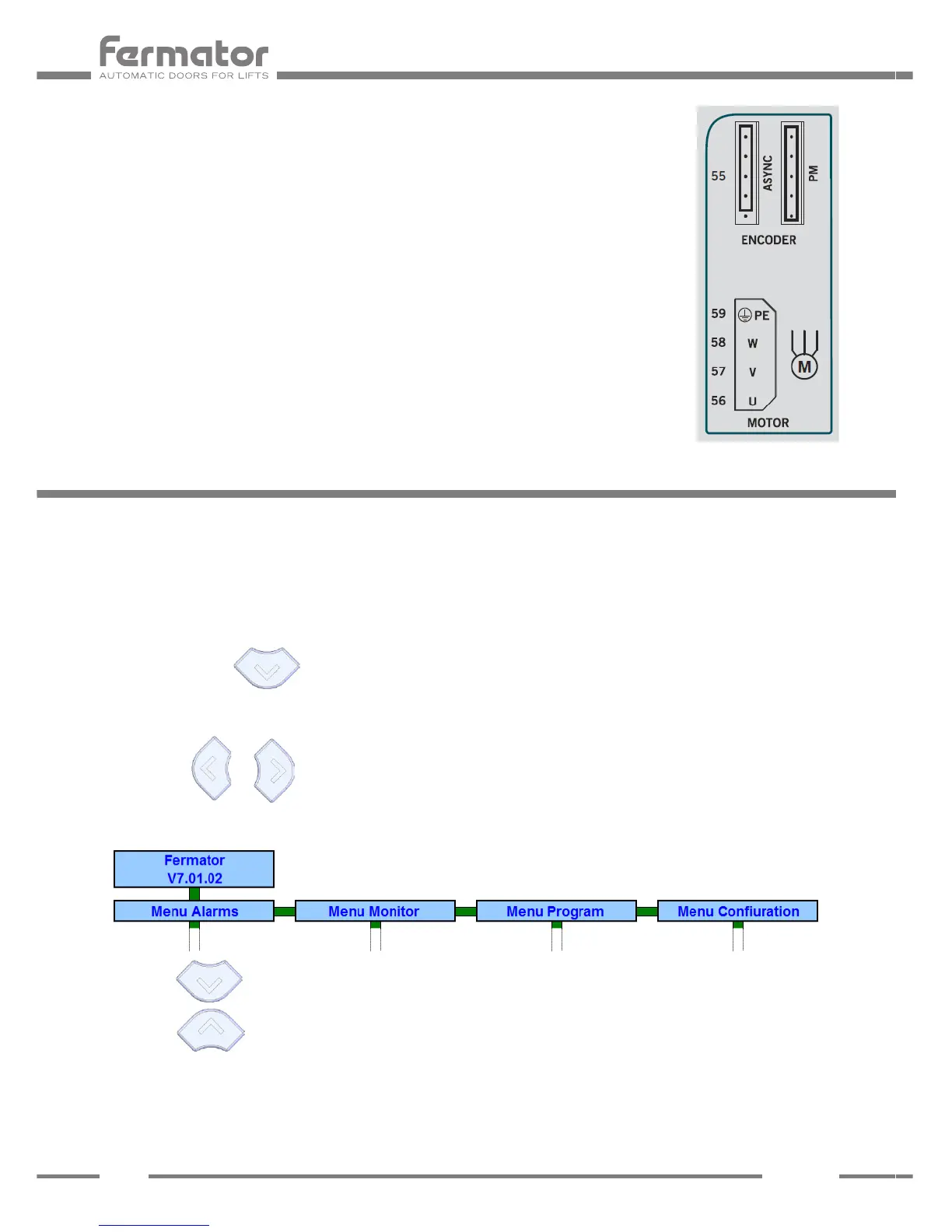

55 ENCODEUR.
An integral quadrature pulse encoder is connected to this input.
The purpose of the encoder, which is situated inside the motor, is
to inform the control of the exact position and speed of doors.
The software V7.00.02 is not compatibility with Fermator
asynchronous motor.
56 - 59 MOTOR.
Output to the 3 phase motor varying the voltage and frequency to
control speed and torque.
60 ON / OFF SWITCH
Disconnects the unit from the 230 V AC mains supply.
Three main objectives can be achieved with the VF7 graphic interface:
1. To detect possible alarms or errors in the unit (Alarms Menu).
2. To see the parameters value and active signals (Monitor Menu).
3. To modify the internal program parameters and options (Programming Menu).
Once the unit is connected it will show the software version Fermator V7.01.02 .
Push the button to a access to the VF7 menus.
There are four main menus with different submenus: Alarms Menu, Monitor Menu, Programming
Menu and Settings Menu.
P u s h t h e button to select the menu.
Push the button to enter into the VF7 menus.
Push the button to return to the software version screen.
INPUTS / OUTPUTS
GRAPHIC INTERFACE
or
