Fermax 100 CODE MEMOKEY cityline - Cabling Diagram and Connections

Pag 30
Memokey
Memokey
PAL
C1 R1 S1 S2 C2R2 A-
12V
A
S2
-
S1
R1
C1
R2
C2
TRADE
UP
MÓDULO MEMOKEY
MEMOKEY MODULE
MODULE MEMOKEY
MEMOKEYMODUL
Vac
PI2 PI1
LOCK-RELEASES
12 Vac / 12 Vdc
POWER SUPPLY
12 Vac /12 Vdc

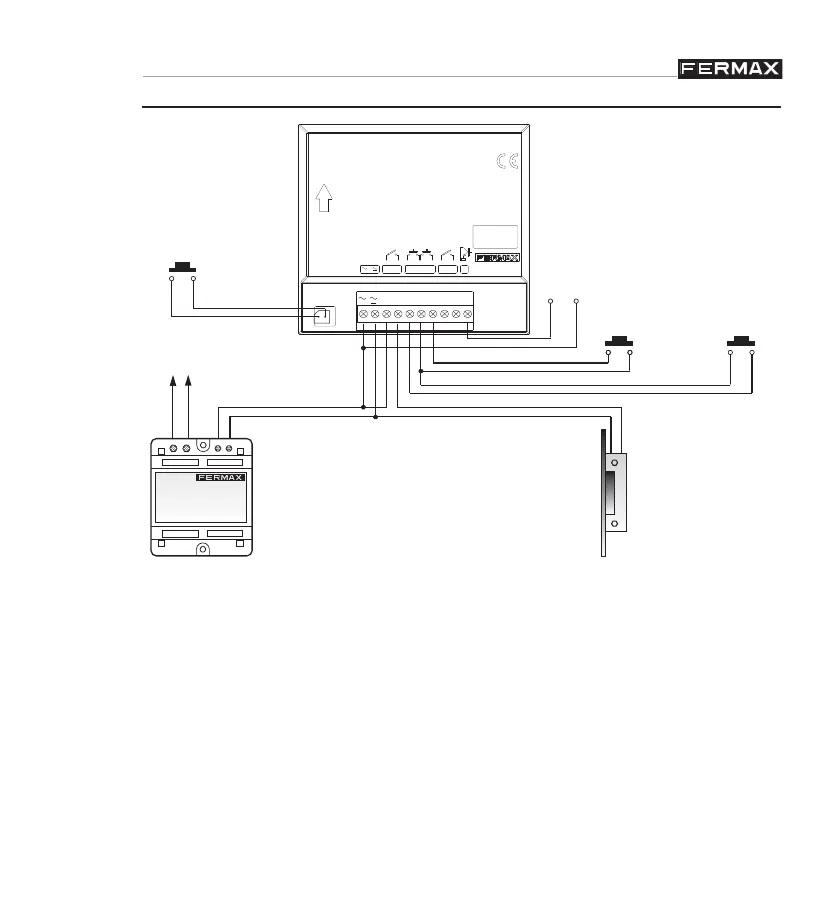

CABLING DIAGRAM
ALL-PURPOSE
DEVICE AUXI-
LIARY
OUTPUT
Memokey Connections:
PI1-Output Button (S1,-): Button to open the door from inside.
PI2-Exit Button (S2,-): Auxiliary Electronic Device Activation
Button.
PAL-Free Access Button (TRADE): Optional button to allow
free access to the building.
Notes:
The operating parameters for the free access, auxiliary exit (all purpose) and lock-
release buttons are confi gurable.
Use a lock-release suitable for the power supply you are going to use (Vac or Vdc).
