Pag 44
ENGLISH
- in the PLACA CITYLINE the call extension module.
- in PLACA SKYLINE the skyline button panel.

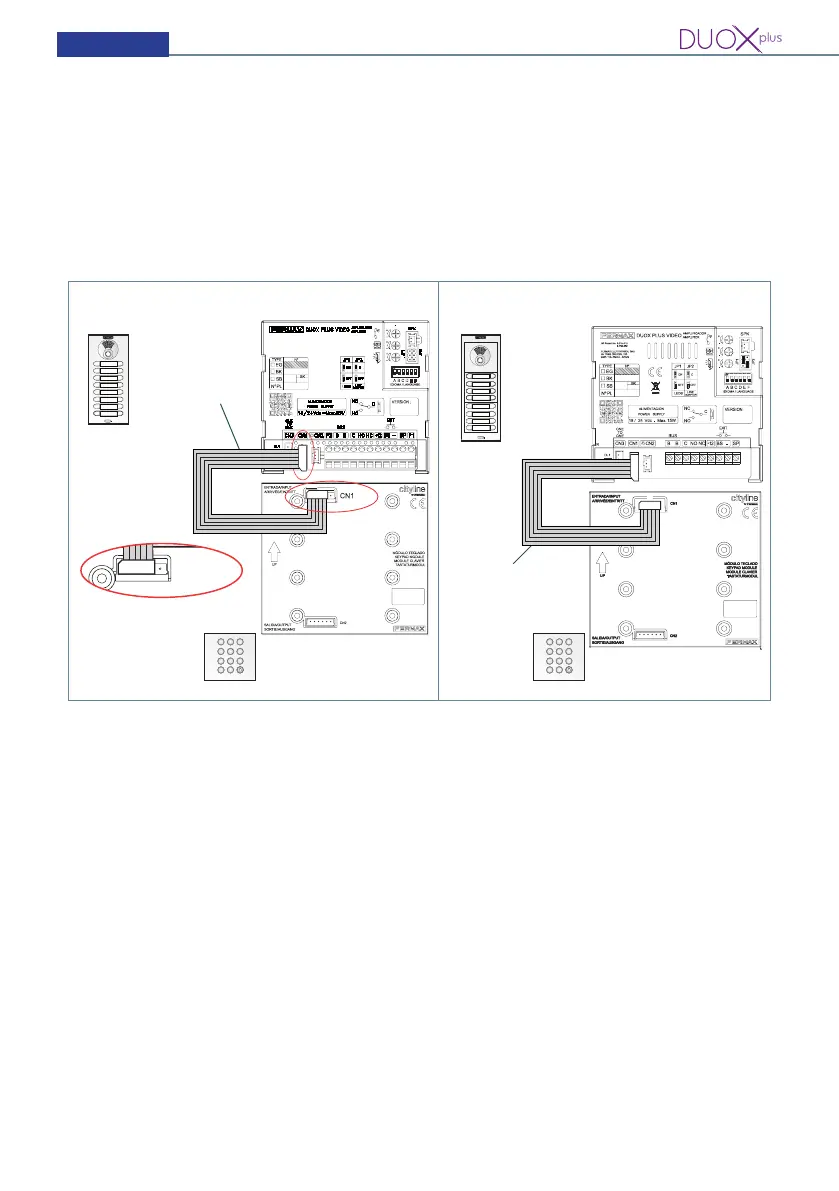

2. Use the cable to connect the keypad as shown in the diagram.
3. Reconnect the power supply. Now you can program the required parameters with the
keypad (Table in previous page).
4. Before completing the keypad disconnection operations and connecting the new call
extension module or skyline button module, remove the power.
CITYLINE Pushbutton panel AMPLIFIER
SKYLINE Pushbutton panel AMPLIFIER
5 channel cable
The call extension
module can be used
Detail
Connect the 5
channel cable to the
keyboard (CN1):
leave the pin on the
right free.
6 channel
cable
ref. 7439 ref. 7439
