Fermax LOFT COMPACT 4+N COLOUR User Manual

Pag 16
Ct
+
M
V
V
F2
4
3
1
-
F1
2
6
TA
1
2
364
+
-
Ct COAX
P6P2
F1
TIMER
TEMPORIZADOR
REF. 29001
I1
CNoNc
I2 S
SET
9 ÷ 14 Vac
11 ÷ 18 Vdc
ON
-
Ab
-
R
P1 P2
DL1
TIME
MIN. SEC.
RESET
Vac
RESET
F2

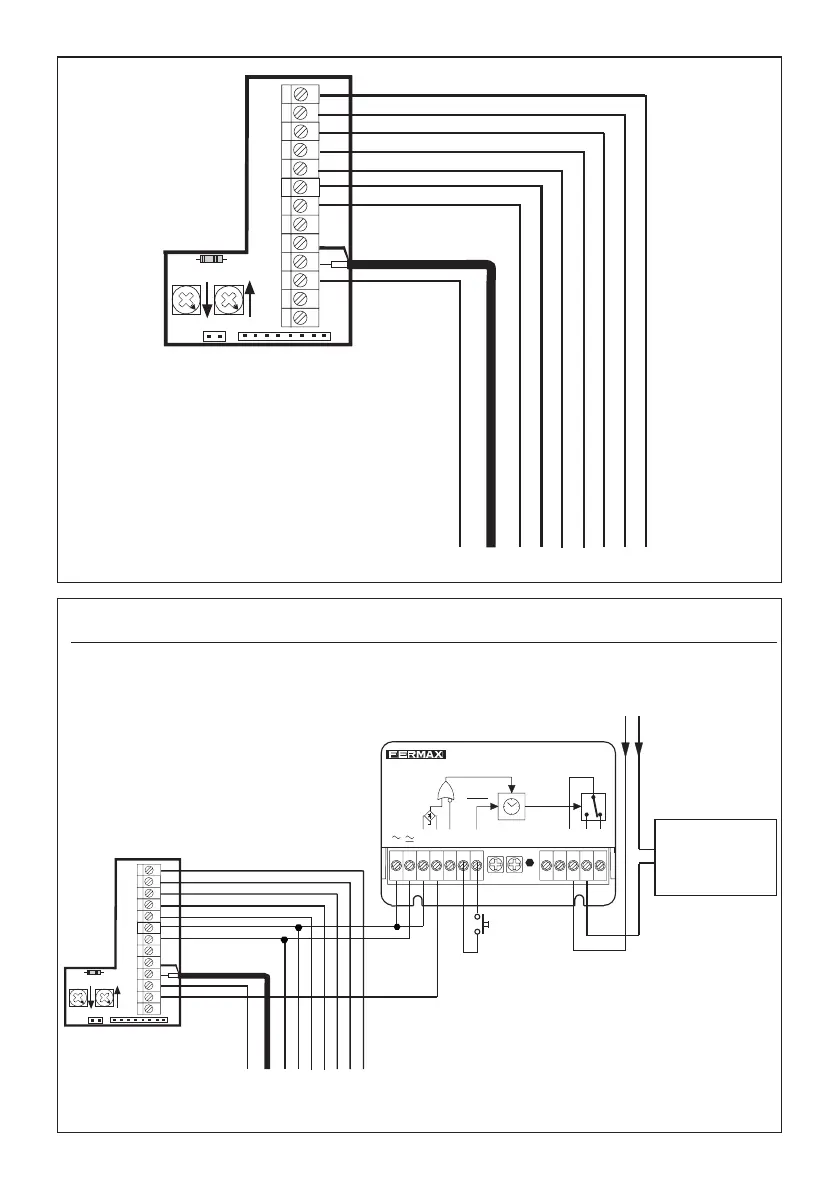

Auxiliary device activation
The timer (Ref. 29001) is used to activate an external device and control the opening functions
for the second door by pressing the F1 button on the Monitor.
The same system can be used with another timer for the monitor’s F2 button using the
connector’s F2 terminal.
Circuit is
controlled with a
timer powered with
Vac.
F1, F2: Additional Functions (negative output «-»).
Maximum current per FL and F2 buttons: 50mA at
12Vdc.
Ct
+
M
V
V
F2
4
3
1
-
F1
2
6
TA
1
2
364
+-
Ct COAX
P6P2
