Ferno Model 50-E50-E Undercarriage
4.3 Quick Fix Lock
The Quick Fix lock is a system of hooks that secures the
stretcher top to the undercarriage. It is composed of:
• Undercarriage: 4 stationary hooks at the
head end (Figure 2)
• Stretcher top: 2 stationary foot-end hooks and
a lock bar with 2 hooks (Figure 3)
The six stationary hooks help hold the stretcher top on
the undercarriage. The lock bar secures the two
components together. Leave the lock bar disengaged
when the stretcher top is not on the undercarriage.
USING THE LOCK BAR
The lock bar is located under the stretcher top and has
two hooks that grasp the undercarriage main frame. It
is engaged by moving it across the undercarriage from
the patient left to the patient right.
OPERATOR STANDING ON PATIENT LEFT
To engage the lock bar (Figure 4):
1. Lift the lock lever (the hooks will drop down).
2. Push the lock bar hook across the stretcher.
3. Release the lock lever.
To disengage the lock bar:
1. Lift the lock lever.
2. Pull the lock bar hook toward yourself.
3. Release the lock lever (the hooks will swing up).
OPERATOR STANDING ON PATIENT RIGHT
To engage the lock bar:
1. Lift the lock lever (the hooks will drop down).
2. Pull the lock bar tab toward yourself.
3. Release the lock lever.
To disengage the lock bar:
1. Lift the lock lever.
2. Push the lock bar tab toward the stretcher center.
3. Release the lock lever (the hooks will swing up).

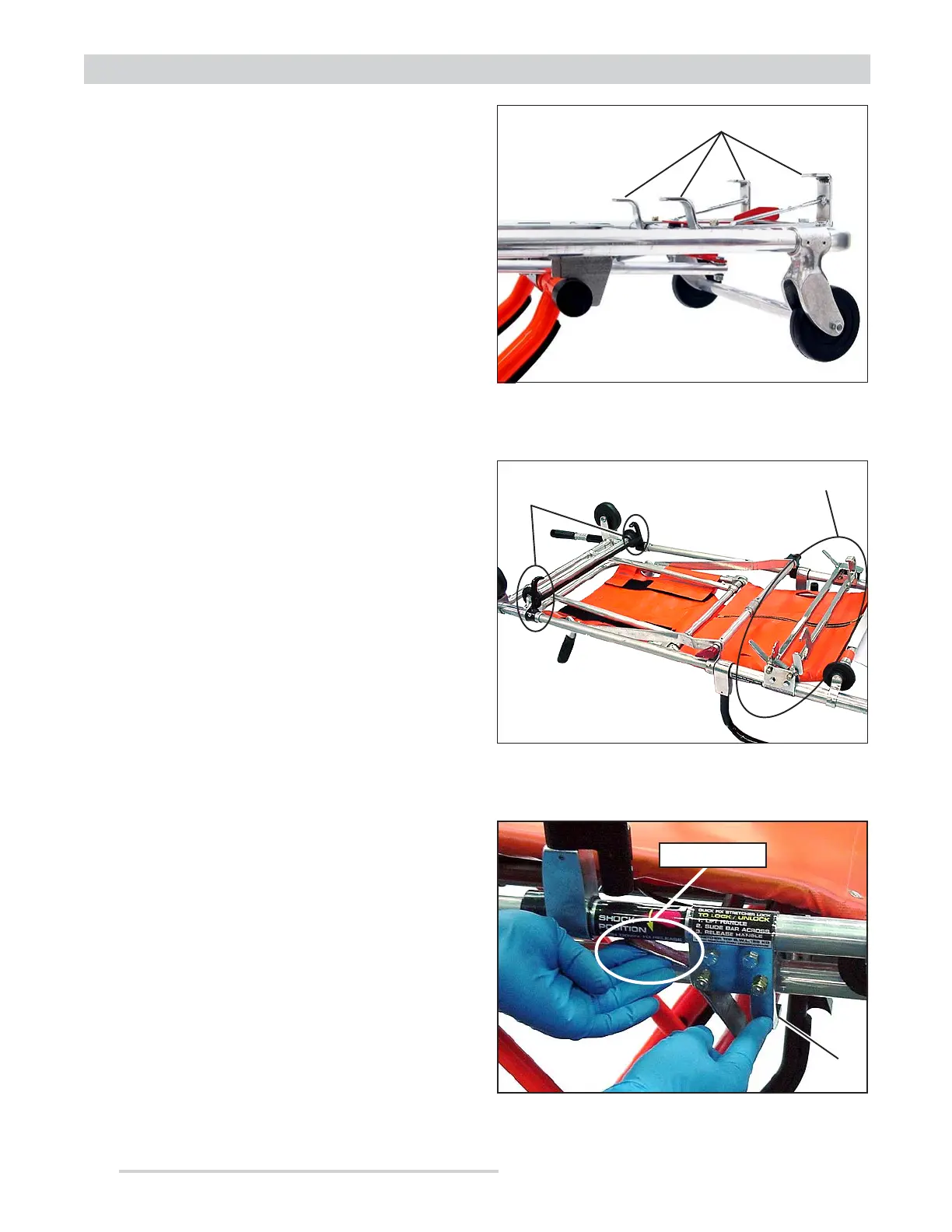

Figure 2 - Undercarriage Head-End Hooks
Hooks
Figure 4 - Engaging the Quick Fix Lock
Lock Lever
Hook
Figure 3 - Lock Bar (Bottom of Stretcher Top)
Lock Bar
Foot-End
Hook (2)
