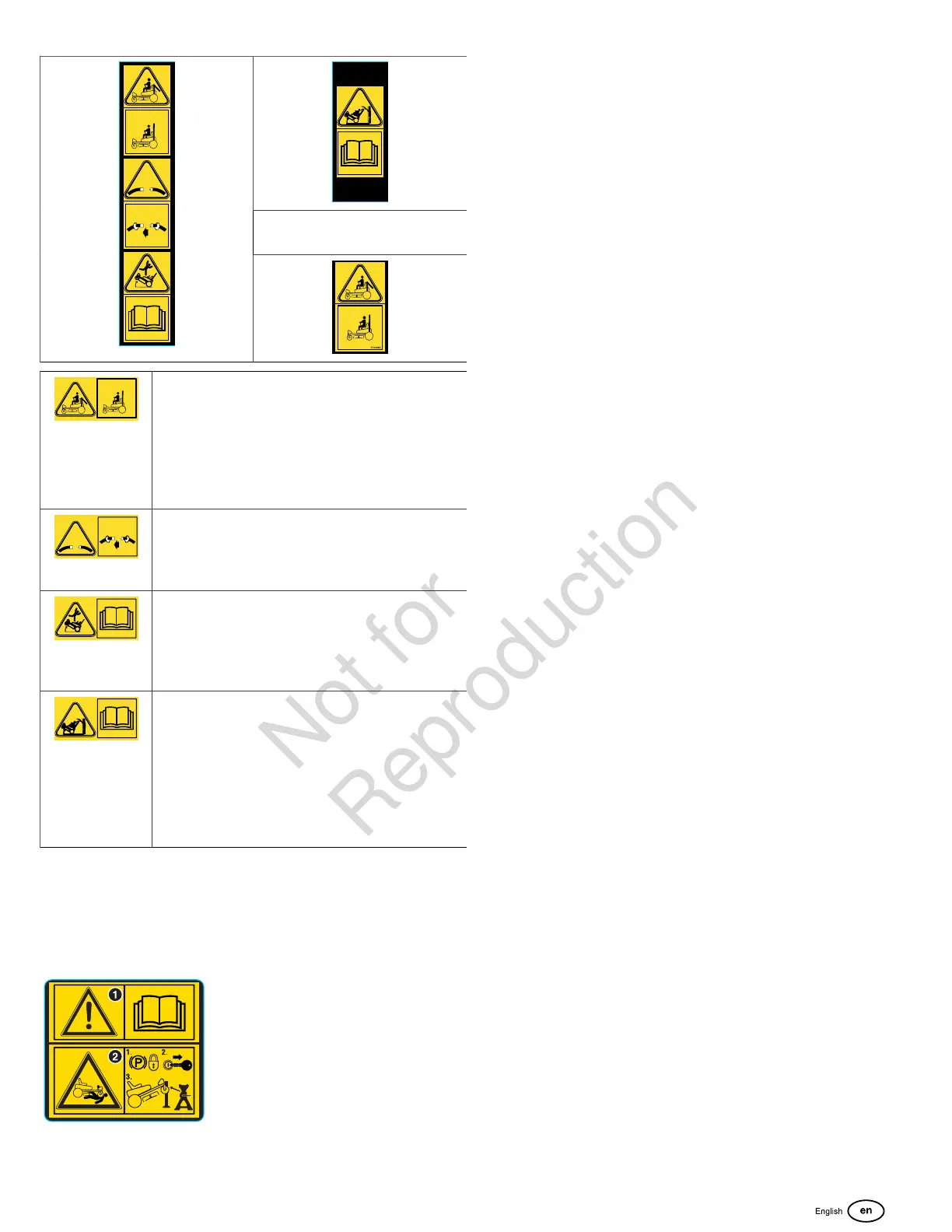

5100685 - Decal, Warning,
Roll Bar
Warning: Avoid Serious Injury or Death
from Roll Over - Keep roll bar in the raised
position and use seat belt. There is no roll
over protection when roll bar is down. Lower
roll bar only when necessary and NEVER
remove it. Raise the roll bar as soon as
clearance permits.
Warning: Avoid Serious Injury or Death
from Roll Over - Keep roll bar in the raised
position and use seat belt. Do NOT use seat
belt when the roll bar is down.
Warning: Avoid Serious Injury or Death
from Roll Over - Do NOT jump off if the
mower tips. Read and follow all operating
instructions and warnings in the operator’s
manual.
Warning: Low Overhanging Obstacles
Hazard - Check for overhead clearances
before driving under any objects. Stay
clear. Do NOT allow roll bar to contact
low overhanging obstacles, such as tree
branches and guide wires. Read and follow
all operating instructions and warnings in the
operator’s manual.
Safety Icons for Optional Jack Kit
Accessory
An optional jack kit is available as an accessory through your
normal parts source. Please see the explanations below for
the safety icons displayed on the jack kit.
Part Number:5105632 - Decal, Warnings, Svc Jack
1.) Warning - Read the Operator's Manual.
2.) Crushing Hazard, Mower:(1.) Park machine on flat
level ground and engage the parking brake; (2.) Stop the
engine and remove the ignition key; (3.) Properly jack the
machine and secure with jack stands before working under
the machine.
Safety Interlock System
This unit is equipped with safety interlock switches. These
safety systems are present for your safety, do not attempt
to bypass safety switches, and never tamper with safety
devices. Check their operation regularly.
Operational SAFETY Checks
Test 1 - Engine SHOULD NOT crank if:
• PTO switch is engaged, OR
• Parking brake is not engaged.
Test 2 - Engine SHOULD crank if:
• PTO switch is not engaged, AND
• Parking brake is engaged.
Test 3 - Engine should SHUT OFF if:
• Operator rises off seat with PTO engaged, OR
• Operator rises off seat with parking brake disengaged.
Test 4 - Blade Brake Check
The mower blades and mower drive belt should come to a
complete stop within seven (7) seconds after electric PTO
switch is turned off (or operator rises off seat).If the unit fails
the blade brake check, it is advised not to use the unit until it
is repaired and passes the blade brake check.
Note:Once the engine has stopped, PTO switch must be
turned off, parking brake must be engaged, and the ground
speed control levers must be locked in the NEUTRAL position
after the operator returns to the seat in order to start the
engine.
