The maximum air pressure for cleaning purposes must be
below 205 kPa (30 psi). The maximum water pressure for
cleaning purposes must be below 275 kPa (40 psi).
Engine Maintenance
For engine maintenance schedules and procedures, please
refer to the engine operator's manual.
Containing Spilled Fluids and Proper
Disposal of Waste
Make sure that fluids are contained when performing
inspection, maintenance, testing, adjustment, and repair
of the unit. Be prepared to collect the fluid with suitable
leakproof containers before opening or disassembling any
component containing fluids. Do not pour waste onto the
ground, down a drain, or into any source of water.
Improper disposal of waste can threaten the environment.
Dispose of all fluids according to local regulations and
mandates.
Inspect Muffler and Spark Arrester
Inspect the muffler for cracks, corrosion, or other damage.
Remove the spark arrester, if equipped, and inspect
for damage or carbon blockage. If replacement parts
are required, make sure to use only original equipment
replacement parts.
WARNING
Replacement parts must be the same and installed in the
same position as the original parts or fire could result.
Fuse Location and Identification
The electrical system for this unit is equipped with two
replaceable fuses. See the chart below for the circuit,
amperage, and approximate location of the fuses.
Circuit Amperage Approximate Location
Main 20 amp Instrument control
panel.
PTO Clutch 15 amp Behind the seat on the
left hand side of the
machine.
Check / Fill Transmission Oil Level
This unit is equipped with two transmission oil tanks. One
transmission oil tank only supplies oil to one transmission.
The level of oil in both transmission tanks must be checked,
and if necessary, filled.
Oil Type: 20W-50 conventional detergent motor oil

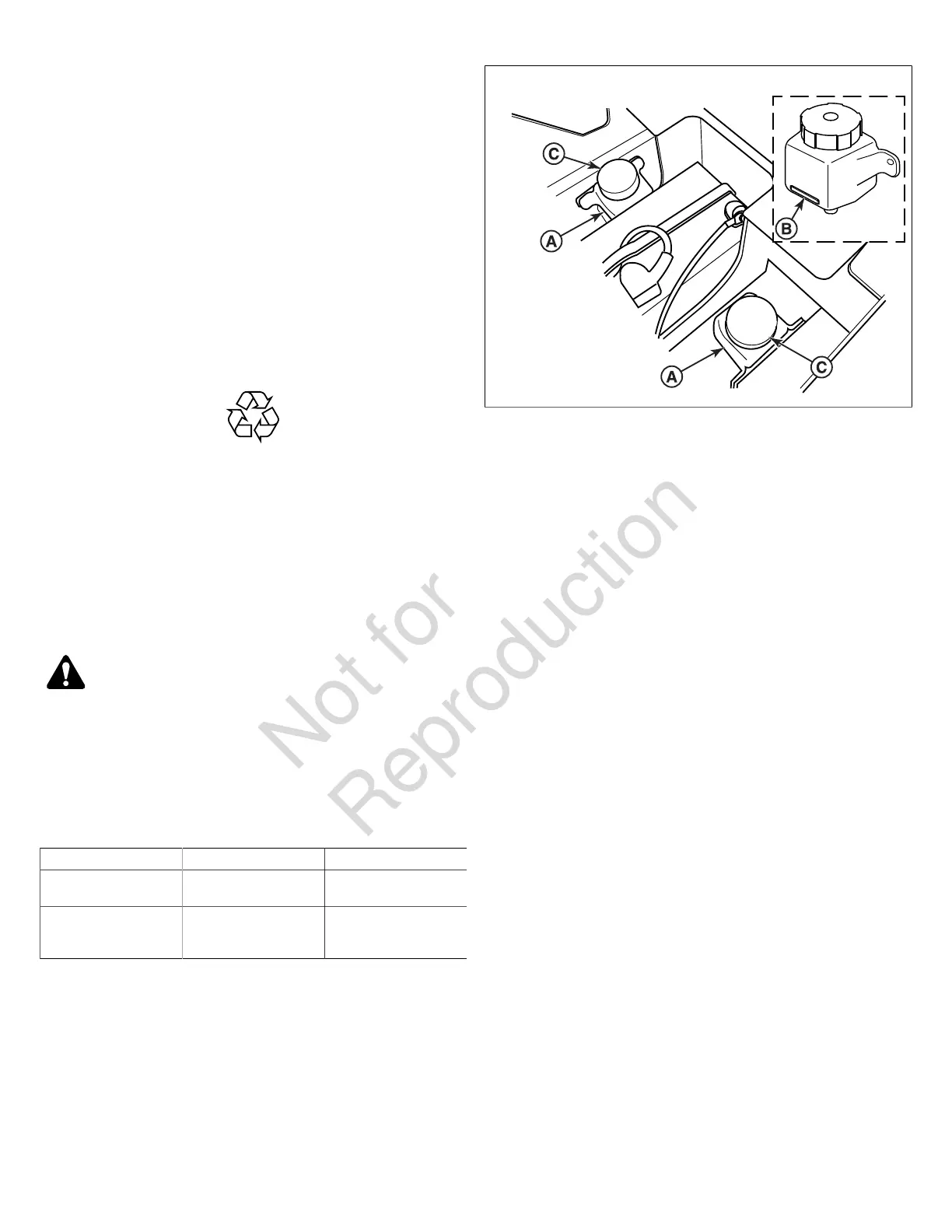

1. Locate the transmission oil tanks (A, Figure 26).
26
2. Check the oil level when the unit is cold. The oil should be
up to the "FULL COLD" mark (B). If the oil is below this
level, proceed to step #3.
3. Before removing the tank caps (C), make sure the area
around the tank cap and fill neck of the tank is free of
dust, dirt, or other debris. Remove the tank cap.
4. Add oil up to the full cold mark.
5. Reinstall the tank caps.
6. After adding oil to the tanks, it may be necessary to purge
air from the hydraulic system. If the unit is not driving
properly perform the Purging the Air from the Hydraulic
System procedure.
Transmission Oil Filter Change
Change Interval:Every 400 Hours or Yearly (Initial hydraulic
oil and filter change after first 100 hours of operation)
Replacement Filter Number:5101026X1
Note:Removing the oil filter from the transaxle will drain the
oil tank. Have a suitable container ready to catch any spilled
oil. The manufacturer recommends that this be a dealer-only
service item.
1. Locate the transmission oil filters (A,
Figures27&28)underneath the rear of the machine on
the transmissions.
