Replacing the Fuel Filter
WARNING
Fuel and its vapors are extremely flammable and
explosive.
Fire or explosion can cause severe burns or death.
Do NOT remove the fuel filter when the engine is hot, as
spilled gasoline may ignite. Do NOT spread hose clamps
further than necessary. Ensure clamps grip hoses firmly
over filter after installation.
Carbureated Models: The fuel filter is located in the fuel line
between fuel tank and carburetor, near the fuel pump.
Fuel Injected Models: The fuel filter is located in the fuel line
between the fuel tank and fuel pump.
If filter is dirty or clogged, replace as follows:
1. Disconnect the negative battery cable.
2. Place a container below the filter to catch spilled fuel.
3. Using a pliers, open and slide hose clamps from fuel filter.
4. Remove hoses from filter.
5. Install new filter in proper flow direction in fuel line.
6. Secure with hose clamps.
7. Reconnect the negative battery cable when finished.
Check Engine Oil Level
Interval: Before Each Use
Refer to the engine operator's manual for dipstick and oil fill
locations and specific engine oil check and fill procedures.
Changing the Engine Oil and Filter

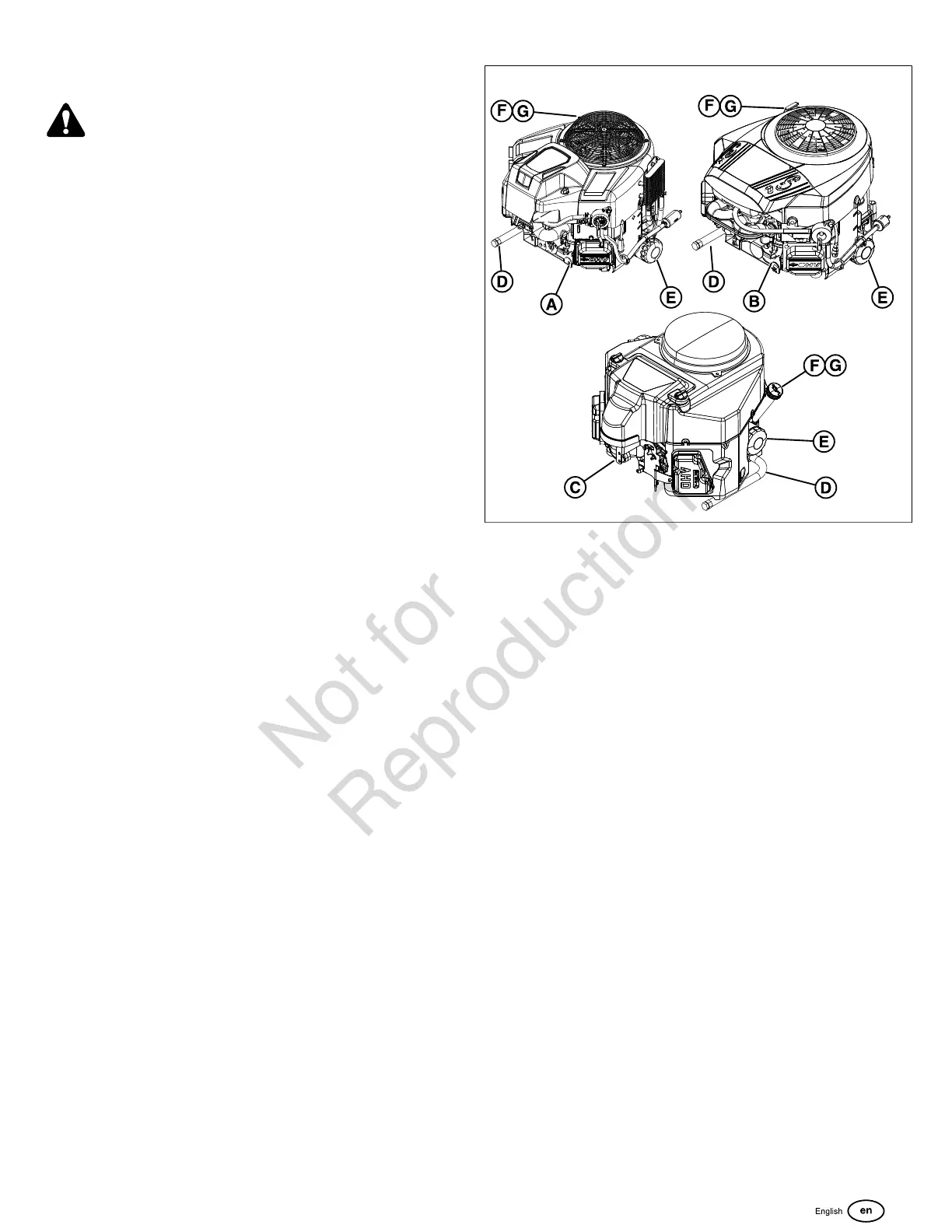

This series of mower has different engine options: Briggs
& Stratton CXi Series (A, Figure 25), Briggs & Stratton
Professional Series (B), and Kawasaki (C). Please reference
figure 25 as the location of the components listed for this
procedure may vary by specific engine option.
25
1. Warm engine by running for a few minutes. (Refer to the
engine operator’s manual for oil and filter replacement
instructions.)
2. Remove the oil drain hose (D) from its storage position
and route the hose so that when the oil drain cap is
removed the oil can be drained into a small pan.
3. Place a small pan under the oil drain hose to catch the oil.
Using the appropriate tools, remove the oil drain cap from
the oil drain hose and drain the engine oil.
4. After draining, replace the cap and wipe up any spilled
oil. Install the oil drain hose to its storage position so it is
retained during normal operation.
5. Place an absorbent shop cloth under the engine oil filter
(D). Remove the engine oil filter and replace with a new
one.
6. Add engine oil (refer to engine operator’s manual) in the
fill tube (E) and check the amount of oil in the engine
using the engine oil dipstick (F).
7. Remove the shop cloth and wipe up any spilled oil.
Clean the Engine Compartment Area
with Pressurized Air and Water
Pressurized air and/or water can cause debris and/or hot
water to be blown out. This action could result in personal
injury.
When pressurized air and/or pressurized water is used for
cleaning wear protective clothing, protective shoes, and eye
protection. Eye protection includes goggles or a protective
face shield.
