Not for
Reproduction

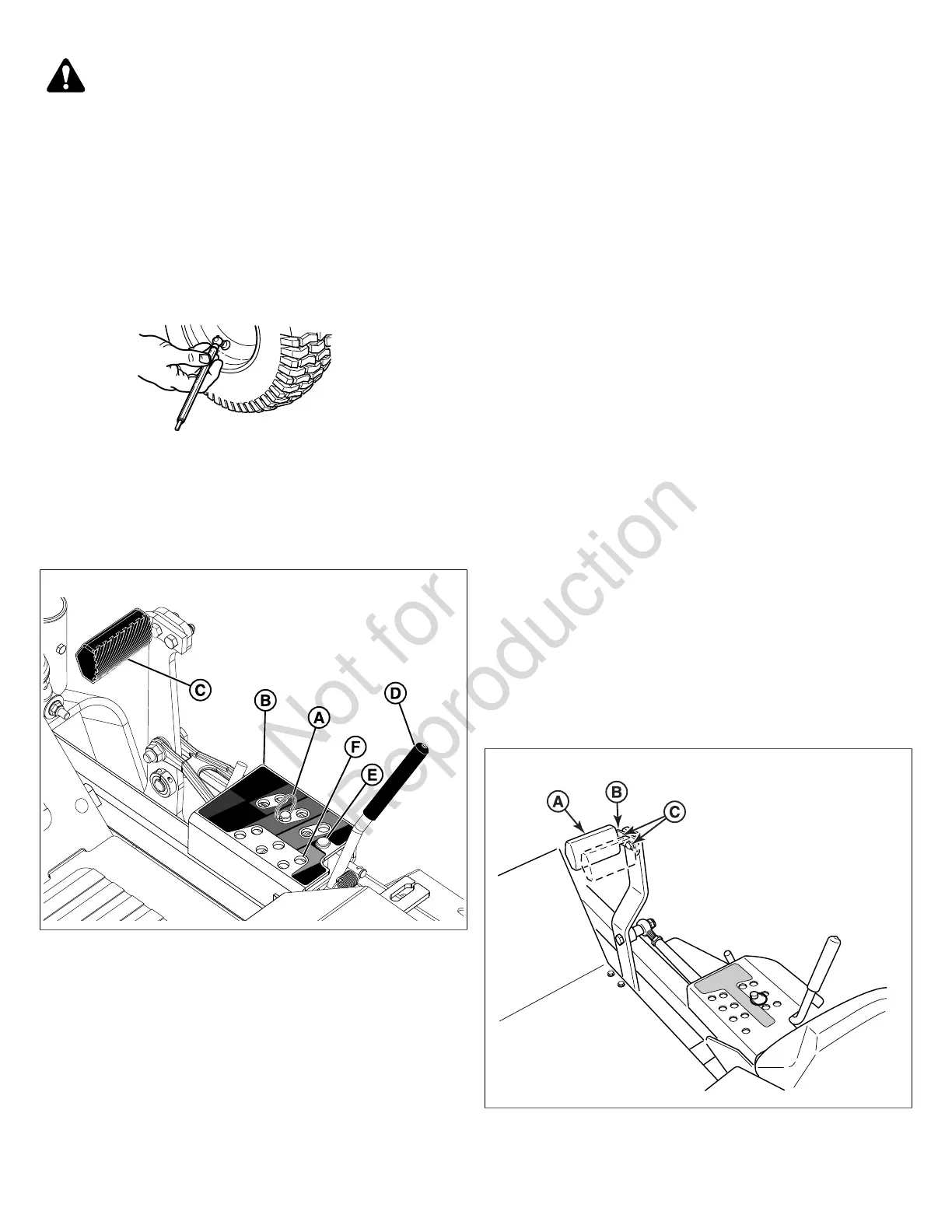

36 ferrismowers.com
WARNING
Unsafe Operation Hazard.
DO NOT adjust the unit for a faster overall speed forward or
reverse than it was designed for.
Checking Tire Pressures
Tire pressure should be checked periodically, and maintained
at the levels shown in the Specifications chart. Note that
these pressures may differ slightly from the "Max Inflation"
stamped on the side-wall of the tires. The pressures shown
provide proper traction and extend tire life.
Cutting Height Adjustment
The cutting height adjustment pin (A, Figure41) controls
the mower's cutting height. The cutting height is adjustable
between 1-1/2" (3,8 cm) and 4-1/2" (11,4 cm) in 1/4" (0,64
cm) increments.
41
Note:Make sure that the cutting height adjustment pin is
inserted into the holes in both upper and lower plates of the
pin box (B).
To set the cutting height at 1-1/2" (3,37 cm):
1. While sitting in the operator’s seat, press the deck lift foot
pedal (C) forward until it locks into the 4-1/2" (11,4 cm)
position.
2. Remove the cutting height adjustment pin from the hole
that it is installed in.
3. Press the deck lift foot pedal forward and then push the
lock lever (D) towards the right to release the lock.
4. Slowly release the deck lift foot pedal until it comes to
rest against the stationary pin (E) in the 1-1/2” (3,37 cm)
cutting height hole.
5. Place the cutting height adjustment pin in the storage
hole (F).
To set the cutting height in the range of 1-3/4” (4,40 cm)
and 4-1/4” (10,8 cm):
1. While sitting in the operator’s seat, press the deck lift
foot pedal forward until it locks into the 4-1/2" (11,4 cm)
position.
2. Place the cutting height adjustment pin in the desired
cutting height.
3. Press the deck lift pedal forward and then push the lock
lever towards the right to release the lock.
4. Slowly release the deck lift foot pedal until it comes to rest
against the cutting height adjustment pin.
To set the cutting height at 4-1/2" (11,4 cm):
1. While sitting in the operator’s seat, press the deck lift
foot pedal forward until it locks into the 4-1/2" (11,4 cm)
position.
2. Place the cutting height adjustment pin in any open
cutting height hole. The lift lock lever holds the mower
deck at 4-1/2" (11,4 cm) while cutting.
Foot Pedal Adjustment
The deck lift foot pedal can be adjusted to accommodate the
operator’s height for optimal comfort.
To adjust pedal position:
1. Remove the foot pedal (A, Figure 42) from the pedal
mount tab (B).
42
2. Remove the pedal mount hardware (C) and rotate the tab
180 degrees.
3. Reinstall the pedal mount hardware and tighten securely.
