CONTROL SYSTEM

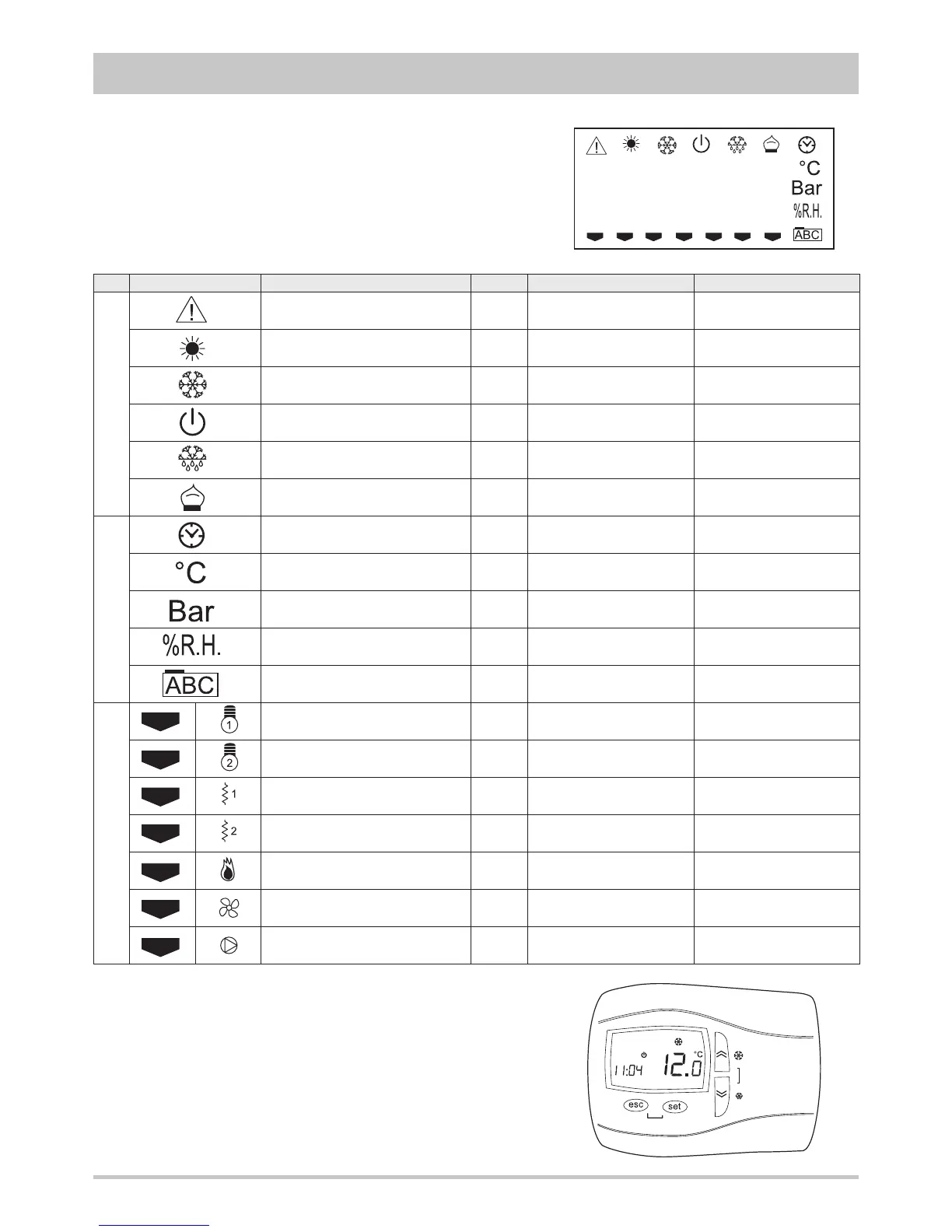

Icon Description Colour Steady on Flashing on
Status and operating modes
Alarm Red Active alarm Deactivated alarm
Heating Green
Heating mode
from keyboard
Heating mode
from remote
Cooling Green
Cooling mode
from keyboard
Cooling mode
from remote
Stand by Green
Stand by
from keyboard
Stand by
from remote
Defrost Green Defrost in progress -
Economy Green not used -
Measure units
Clock Red
Time display
format 24.00
Time setting
format 24.00
Celsius degrees Red
Unit of measure
of the selected parameter
-
Bar Red not used -
Relative humidity Red not used -
Menu Red Menu browsing -
Loads
Compressor Amber Active load
Safety time
in progress
not used - - -
Antifreeze heater
Integrative heater 1
st
step
Amber Active load
Safety time
in progress
Integrative heater 2
nd
step Amber Active load
Safety time
in progress
not used - -
Fans Amber Active load
Safety time
in progress
Pump Amber Active load
Safety time
in progress
Display
Normally are shown :
• the setting temperature that is the water inlet temperature (in tenths of Celsius
degree with decimal dot)
• alarm code, if at least one alarm is active (if more alarms are active, the first one
according to the order of the Alarm Table, is shown)
In menu mode the informations on the display change according to the position
inside the menu (see the structure of the menu).
88:8.8
Remoto control
Suitable for wall mounting, it reports all the functions available on the user inter-
face placed on the unit.
The buttons, functions associated with the buttons and the display indications are
the same as those provided for the standard interface.
All configuration and control operations are further facilitated by the double di-
splay which allows the name and value of the selected parameter to be shown
at the same time.
Refer to the enclosed manual for the installation and connection procedures and
operating instructions.
