CONTROL SYSTEM

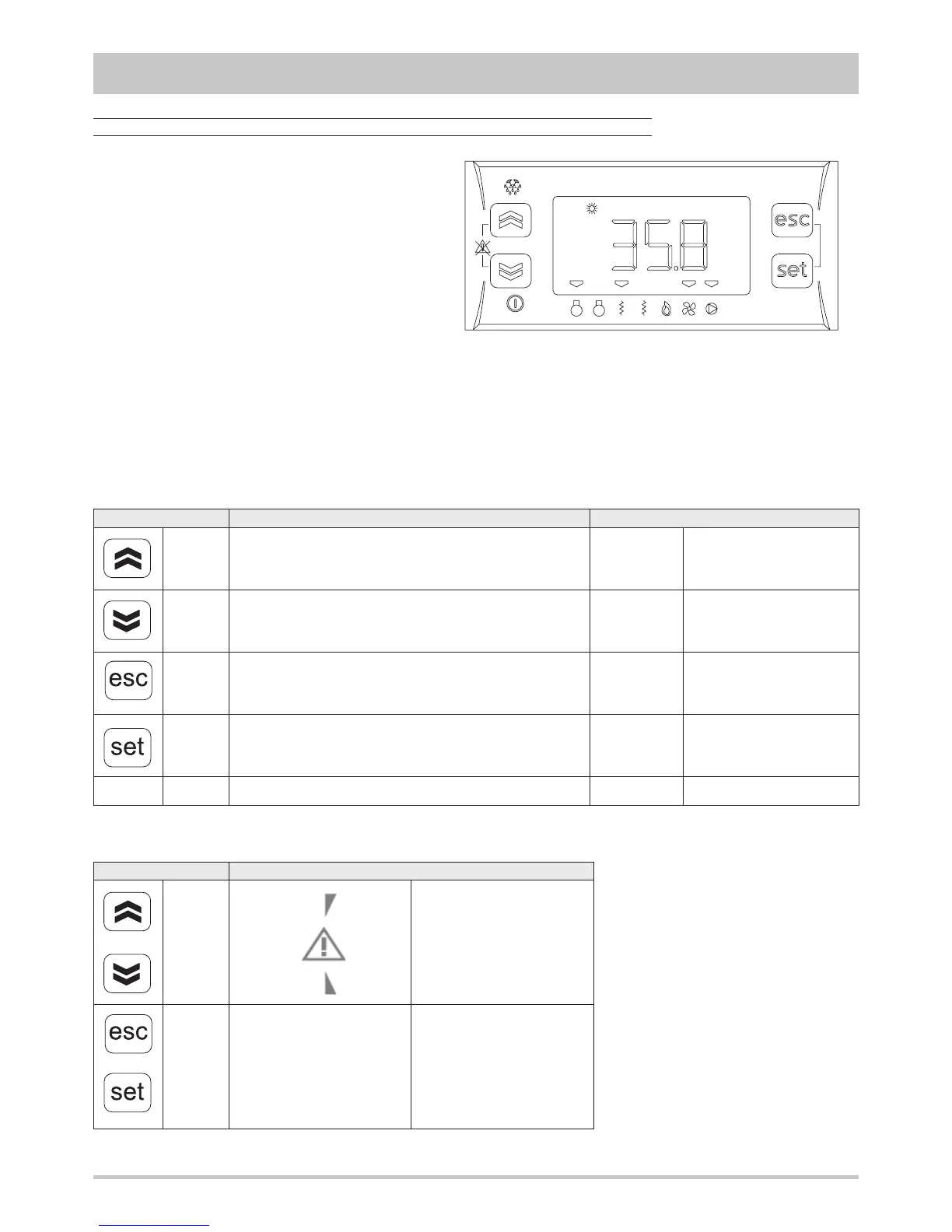

The unit is managed by a microprocessor controller to
which, through a wiring board, all the electrical loads and the
control devices are connected. The user interface is reali-
zed by a display and four buttons that allow to view and, if
necessary, modify all the operating parameters of the unit.
It's available, as an accessory, a remote control that reports
all the functionalities of the user interface placed on the unit.
The interface, placed on the frontal panel of the unit, is ac-
cessible from the outside and is protected by a transparent
plastic door.
It's available, as an accessory, a remote control that reports
all the functionalities of the user interface placed on the unit.
To each button are associated :
- a direct function : indicated on the button itself and activated pressing the button
- an associated function : indicated on the front of the instrument at the corresponding button and activated pressing the button
for long (3 seconds)
- a combined function : activated pressing 2 buttons at the same time
°C
1
2
1 2
mode
disp
Button Direct function Associated function
UP
To increase the value of the selected parameter
To scroll up the menu
- -
DOWN
To decrease the value of the selected parameter
To scroll down the menu
- -
ESC
To go to the higher level of the menu without saving mode
To access the
“Operating mode”
menu
SET
To go to the higher level of the menu saving
To go to the lower level of the menu
Access the "Status" menu
- -
- ALL
Alarm deactivation - -
Button Combined function
+
UP
+
DOWN
Manual reset
+
ESC
+
SET
To access the
“Programming”
menu
